AR09-1700

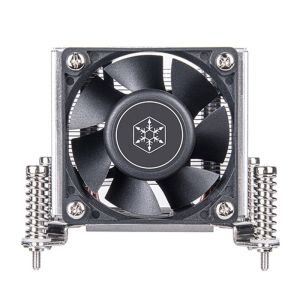

Superior 2U server thermal solution for Intel LGA1700
  • 3 x Ø6mm heat-pipes and aluminum fins for excellent heat conducting efficiency
  • Heat-pipe direct contact (HDC) technology
  • Includes spring screw mounting bracket and backplate
  • 60mm dual ball bearing PWM fan
  • Compatible with Intel LGA1700 socket

Product Specifications
Model No.
SST-AR09-1700
Material
Copper heat pipes with aluminum fins
Application
Intel LGA1700
Fan
Dimension
  • 60mm (W) x 25mm (H) x 60mm (D)
Speed
  • 1200 ~ 5000 RPM
Noise level
  • 18.02~42.5 dBA
Rated Voltage
  • 12V
Rated Current
  • 0.35A
Max airflow
  • 27.9 CFM
Max air pressure
  • 4.83mmH2O
Connector
  • 4 Pin PWM
Bearing
  • Dual ball bearing
MTTF
  • 70,000 hours
Dimension
88mm (W) x 66mm (H) x 88mm (D)
3.46" (W) x 2.6" (H) x 3,46" (D)
Net weight
323g
