All stock codes associated to this product
R-MATREXX55-BCAGA4-G-4, RMATREXX55BCAGA4G4, CADMATREXX55MSV4C, CAD-MATREXX55-MS-V4C, 6933412774334
| Ergonomics |
|---|
| Reset button | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Design |
|---|
| Anti-dust filter | Yes |
| Form factor | Midi Tower |
| Type | PC |
| Material | ABS synthetics, SPCC |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Product colour | Black |
| Number of 2.5" bays | 3 |
| Suitable for | Gaming |
| Side window | Yes |
| Reset button | Yes |
| Cable management | Yes |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 37 cm |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
| Power supply |
|---|
| Supported power supply form factors | ATX, PS2 |
| Power supply included | No |
| Power supply location | Bottom |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling |
|---|
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Storage |
|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions |
|---|
| Width | 215 mm |
| Depth | 421 mm |
| Height | 483 mm |
| Weight | 6.5 kg |

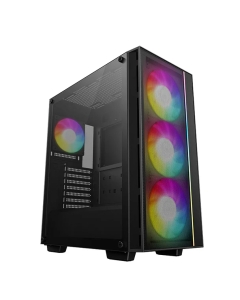

The MATREXX 55 MESH V4 C is a modern version of the classic MATREXX 55 cases that have been a favorite of system integrators and end users alike.
A CLASSIC DESIGN THAT CANT BE DENIEDThe familiar look of the front ARGB fans and front LED strip running down the right side is present, but the fans have been updated to three 140mm PWM-enabled fans in the front and a 120mm ARGB fan in the rear. The high-flow mesh front panel ensures that your system will take full advantage of those 140mm front fans.
MAXIMUM SUPPORT FOR COMPONENTSWith support for up to ATX motherboards, radiators up to 360mm, 165mm tall air coolers, 170mm PSUs, and 370mm long GPUs, finding compatible components will be easier than ever before.
OPTIONAL COOLING CONFIGURATIONSWith the massive heat that current high-end components are producing in this modern era, having a great mix of compatible cooling configurations is a must. The MATREXX 55 MESH V4 C doesn't skimp on the most common-sized options.
CONVENIENT PORTS AND CONTROLFor your convenience, the MATREXX 55 MESH V4 C comes with a host of ports and ARGB controls in the I/O panel. You will find an easily accessible USB 3.0 port, a Type-C port, a hybrid audio port, as well as the ARGB LED controller button within arm's reach.
FLEXIBLE STORAGE SOLUTIONSThe storage drive solutions can be used in various ways, as each 3.5" drive bay can be converted into a 2.5" bay (for example, 2x3.5"+2*2.5" bays or 1x3.5"+3x2.5" bays). The entire HDD cage can even be removed to increase PSU length clearance.
