All stock codes associated to this product
R-CH160-WHNGI0-G-1, RCH160WHNGI0G1, CADCH160WH, CAD-CH160-WH, 6933412774440
| Ergonomics |
|---|
| On/off button | Yes |
| Design |
|---|
| Form factor | Small Form Factor (SFF) |
| Type | PC |
| Material | ABS, SPCC, Tempered glass |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | Mini-ITX |
| Product colour | White |
| Number of 2.5" bays | 1 |
| Side window | Yes |
| Number of expansion slots | 3 |
| Maximum CPU cooler height | 17.2 cm |
| Maximum graphics card length | 30.5 cm |
| Maximum PSU length | 14 cm |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
| Power supply |
|---|
| Power supply included | No |
| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio input | Yes |
| Cooling |
|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Storage |
|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions |
|---|
| Width | 200 mm |
| Depth | 336 mm |
| Height | 283 mm |
| Weight | 3.3 kg |

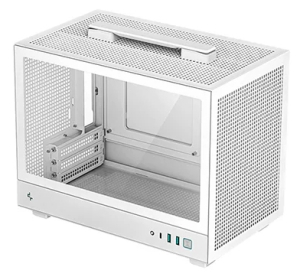

The CH160 is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.
HIGH AIRFLOW PANELSMesh panels surround the CH160 from numerous sides and create a high-airflow, small-form-factor case like no other.
FULL SIZED AIR COOLING!Lack of air cooler support in small mini-ITX cases is a thing of the past. The CH160 can support giant air coolers up to 172mm in height!
NO ADDED GPU LATENCY!Designed to accommodate most 3-slot dual-fan GPUs that are shorter than 305mm in length and can be directly inserted into the motherboard without the assistance of a riser cable–no added GPU latency concerns!
FLEXIBLE POWER OPTIONSWhether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm.
QUALITY OF LIFE IMPROVEMENTSEquipped with options such as removable fan brackets, where the front fan bracket can be utilized to support both an SSD and an HDD drive; three removable dust filters for ease of cleaning; a nice and sturdy carrying handle; two USB 3.0, a Gen2 Type-C, and a hybrid audio port, the CH160 makes everything a little easier.
RECOMMENDED
COMPATIBLE COMPONENTS LIST:PC building enthusiast:
B650I + ITX GPU(length limit 235mm) + AK500 Series + PQ-M Series
Overclocker:
B760I + RTX 4070/NVIDIA GeForce RTX 4090(length limit 305mm) + AK620 Series + SFX PSU
