All stock codes associated to this product
R-ASN4S-WHGPMN-G, RASN4SWHGPMNG, CFDASSASSIN4SWH, CFD-ASSASSIN-4S-WH, 6933412728702
| Performance |
|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | Air cooler |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 14 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Maximum airflow | 61.25 cfm |
| Minimum air pressure | 2.46 mmH2O |
| Maximum air pressure | 3.76 mmH2O |
| Number of heat pipes | 7 |
| Number of fans | 1 fan(s) |
| Heat pipes diameter | 6 mm |
| Quantity per pack | 1 pc(s) |
| Fan noise level (min) | 22.6 dB |
| Fan noise level (max) | 29.3 dB |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1800 RPM |
| Design |
|---|
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Power |
|---|
| Rated voltage | 12 V |
| Power consumption (typical) | 3.6 W |
| Fan power consumption | 2.4 W |
| Fan voltage | 12 V |
| Fan current | 0.2 A |
| Weight & dimensions |
|---|
| Width | 147 mm |
| Depth | 116 mm |
| Height | 164 mm |
| Weight | 1.38 kg |
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Heat pipes diameter | 6 mm |
| Radiator width | 11 cm |
| Radiator depth | 14 cm |
| Radiator height | 16 cm |
| Technical details |
|---|
| Fan connector | 4-pin |
| Packaging data |
|---|
| Package type | Box |
| Packaging content |
|---|
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Adapter frame included | Yes |

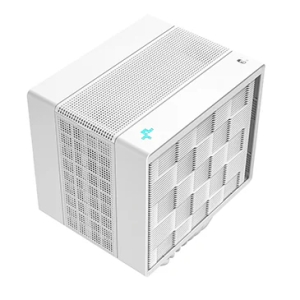

The ASSASSIN 4S WH provides exceptional performance and is armed with seven 6mm heat pipes and a redesigned 140mm FDB fan. The 4S models eliminate the rear 120mm fan, providing a slimmer, more symmetrical cooler. The white and gray aesethic blend in perfectly with that all-white system.
BEAUTY IN SIMPLICITYThe elegant white design of the ASSASSIN 4S WH is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
QUIET OR PERFORMANCE MODEWith a simple slide of a switch, the ASSASSIN 4S WH can morph from a whisper-quiet cooler when low noise is of the utmost importance to the efficient cooling force DeepCool air coolers are known for.
LET IT SHINE!The shell of ASSASSIN 4S WH is clean, sleek, and helps channel air through the fin towers, while the slimmer profile provides unobstructed clearance for high-profile RGB RAM.
BE COOL, BE CALMA key factor in the ASSASSIN 4S WH's extremely silent operation is the use of three-phase, six-pole fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN 4S WH comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGNFeaturing seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
STREAMLINED INSTALLATIONInstalling larger air coolers can be difficult and is a prime reason the hardware and installation was designed to be extremely user friendly. Even the magnetic top fan cover was crafted with ease of installation in mind.
