All stock codes associated to this product
LVW06-ARM, LVW06ARM, MABTLVW06ARM, MABT-LVW06-ARM, 6956745178433

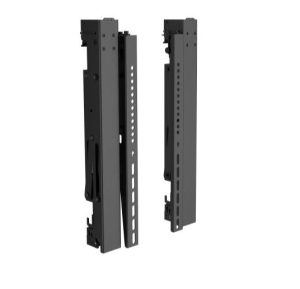

Brateck LVW06 Series Video Wall Mount Arm load capacity of 70kg/154lbs and allows VESA 200x200, 400x200, 300x300, 400x400, 600x400, 300x200, 400x300, 800x400 and Max. 1000x400.
Product Category: Video Wall Mount Component
Rank: Premium
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet
Surface Finish: Powder Coating
Color: Fine Texture Black
Color(Accessory): Fine Texture Black
Fit Screen Size: Min. 45'
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400,1000x400
Max. Mounting Hole: 1000x400
Weight Capacity(Per Screen): 70kg (154lbs)
Strength Tested: 4 Times Approved
Profile: 87~277mm (3.4'~10.9')
Fine Adjustment(Depth/Height): 20mm/25mm (0.79'/0.98')
Tilt Range: +4 °~-2 °
Screen Level: +3 °~-3 °
Direction Indicator: Yes
Anti-theft: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
