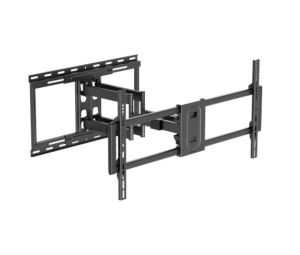

Brateck LPA80-486A HEAVY-DUTY FULL-MOTION TV WALL MOUNT WITH LATERAL SHIFT WALL PLATE For Double Stud (600mm) & Solid Wall
FEATURES
â—Detachable Wall Plate: ensures easy assembly
â—Free-tilting & Swiveling Design: for multiple TV viewing angles
â—Lateral Shift Wall Plate: allows TV to shift left and right for perfect placement with off-center studs
â—Easy Assembly: Installation is as easy as 1-2-3
â—Open Architecture: provides increased ventilation and easier access to wires
â—Leveling adjustments: allow TV to be perfectly positioned after hanging
â—Cable Management: keeps everything organized
SPECIFICATIONS
Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel ,Plastic
Metal Sheet Thickness:
Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059' cold-rolled sheet,VESA Panel THK=0.071' cold-rolled sheet,Wall Plate THK=0.12' pickling sheet)
Pipe Size: 40x20x1.5mm Square Steel Tube (1.6'x0.79'x0.059' Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 635x906x430mm (25'x35.7'x16.9')
Fit Screen Size: 43'-100'
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
Max. Mounting Hole: 800x400
Weight Capacity: 80kg (176lbs)
Strength Tested: 3 Times Approved
Profile: 90~635mm (3.5'~25')
Tilt Range: +5 °~-10 °
Swivel Range: +60 °~-60 °
Screen Level: +3 °~-3 °
Installation: Solid Wall,Double Stud(600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
