All stock codes associated to this product
R-AN400-BKWNMN-G, RAN400BKWNMNG, CFDAN400BK, CFD-AN400-BK, 6933412728795
| Performance |
|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Type | Air cooler |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 9.2 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 31.18 cfm |
| Maximum air pressure | 4.8 mmH2O |
| Thermal Design Power (TDP) | 150 W |
| Number of heat pipes | 4 |
| Number of fans | 1 fan(s) |
| Heat pipes diameter | 4 mm |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 13 |
| Fan noise level (max) | 23.2 dB |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2950 RPM |
| Design |
|---|
| Fan connector | 4-pin |
| Number of heat pipes | 4 |
| Number of fans | 1 fan(s) |
| Illumination colour | White |
| Product colour | Black |
| Illumination LED | Yes |
| Number of fan blades | 13 |
| Radiator material | Aluminum |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Power |
|---|
| Thermal Design Power (TDP) | 150 W |
| Power consumption (typical) | 5.4 W |
| Fan voltage | 12 V |
| Fan current | 0.45 A |
| Weight & dimensions |
|---|
| Width | 92 mm |
| Depth | 92 mm |
| Height | 52.5 mm |
| Weight | 431.4 g |
| Fan dimensions (W x D x H) | 92 x 92 x 15 mm |
| Heat pipes diameter | 4 mm |
| Radiator width | 9.4 cm |
| Radiator depth | 5.7 cm |
| Radiator height | 3.8 cm |
| Technical details |
|---|
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Packaging data |
|---|
| Package type | Box |
| Packaging content |
|---|
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |

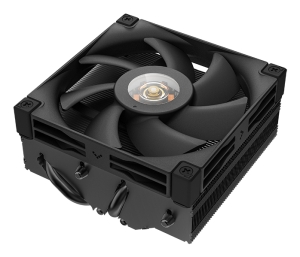

AN400 BKThe AN400 BKis a 4-heatpipe low-profile air cooler that provides 150W of TDP in a compact heatsink. With unobstructed clearance for RAM modules, and a top-down air flow, the AN400 is a great option for everything down to small ITX builds.
COMPACT AND FEATURE RICHWith 62 nickel-plated aluminum fins, 4 optimized heatpipes, and a raised copper coldplate, the AN400 BK packs a lot of cooling potential in a small 53mm tall CPU cooler.
SMALL BUT CAPABLEEquipped with a slim 92mm PWM-enabled FDB fan with a visible 6-phase motor, the AN400 BK can spin up to a staggering 2950 RPM while staying below 23.2 dB(A). A low-noise adapter cable is included.
PASSIVE AIRFLOWThe top-down design has the added benefit of providing passive airflow to the surrounding VRMs around the CPU.
SIMPLIFIED SUPPORTThe all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
