All stock codes associated to this product
R-FT12SLIM-BKWPN1-G, RFT12SLIMBKWPN1G, CFDFT12SLIM, CFD-FT12-SLIM, 6933412710684
| Performance |
|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | Air cooler |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1850 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan diameter | 12 cm |
| Noise level (high speed) | 25.6 dB |
| Maximum airflow | 58.9 cfm |
| Maximum air pressure | 2.42 mmH2O |
| Number of fans | 1 fan(s) |
| Fan thickness | 1.5 cm |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 25.6 dB |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1850 RPM |
| Design |
|---|
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Illumination LED | Yes |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Power |
|---|
| Rated voltage | 12 V |
| Voltage | 12 V |
| Rated current | 0.15 A |
| Power consumption (typical) | 8.4 W |
| Maximum current | 0.7 A |
| Fan power consumption | 8.4 W |
| Weight & dimensions |
|---|
| Width | 120 mm |
| Depth | 120 mm |
| Height | 15 mm |
| Weight | 210 g |
| Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
| Fan weight | 210 g |
| Fan thickness | 1.5 cm |
| Technical details |
|---|
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Compliance certificates | CE, UKCA |
| Packaging data |
|---|
| Package type | Box |
| Packaging content |
|---|
| Package type | Box |

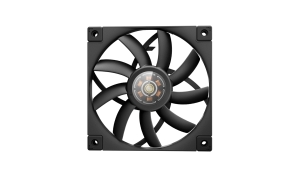

The DeepCool FT12 SLIM is a high-performance 120mm thin-profile PWM fan with excellent cooling power and silent operation–a great choice for CPU and radiator situations where clearance is at a premium.
SLIMMED DOWN PROFILEWith a thickness of 15mm, the FT12 SLIM is the most advantageous fan to use in small form factor systems.
SMALL BUT POWERFULDon't let the slim profile fool you; the FT12 SLIM fan provides all the performance you would expect from an elite 25mm thick cooling fan. The high static pressure and CFM levels make each fan a premium choice for CPU coolers and radiators.
ADVANCE DESIGN YOU CAN SEE!A window into the 3-phase 6-pole fan motor and FDB bearing design provides crystal-clear confidence in the quality of the FT12 SLIM fan. The magnets have been upgraded to neodymium, and the FOC closed-loop control increases stability. Subtle white LEDs are positioned under the bearing to highlight the craftsmanship of the FT SLIM fans.
REDUCED VIBRATIONS!Full-coverage rubber pads at each corner guarantee minimal fan vibration. The newer design provides quieter operation, increases performance, and extends the serviceable life of each fan.
