All stock codes associated to this product
R-LD360-WHDMMN-G-1, RLD360WHDMMNG1, CFDLD360WH, CFD-LD360-WH, 6933412728740
| Performance |
|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | All-in-one liquid cooler |
| Bearing type | Hydro Dynamic Bearing (HDB) |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 72.04 cfm |
| Maximum air pressure | 3.48 mmH2O |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Fan noise level (max) | 38.71 dB |
| Pump noise level | 21 dB |
| Pump motor speed | 3400 RPM |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 2400 RPM |
| Design |
|---|
| Fan connector | 4-pin |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Product colour | White |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Display type | LED |
| LED connector type | 3-pin |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Pump connector | 3-pin |
| Power |
|---|
| LED voltage | 5 V |
| Fan power consumption | 2.64 W |
| Pump power consumption | 4.2 W |
| Pump voltage | 12 V |
| Pump current | 350 mA |
| Fan voltage | 12 V |
| Fan current | 0.22 A |
| LED power consumption (pump) | 2.55 W |
| LED power consumption (fan) | 3.15 W |
| Weight & dimensions |
|---|
| Weight | 1.79 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 12 cm |
| Radiator depth | 40.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 7.8 cm |
| Pump depth | 8.9 cm |
| Pump height | 5.3 cm |
| Technical details |
|---|
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Packaging data |
|---|
| Package type | Box |
| Packaging content |
|---|
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| Number of nuts | 8 |
| Installation instruction | Yes |
| CPU bracket(s) | Yes |
| Other features |
|---|
| Pump connector | 3-pin |
| LED voltage | 5 V |

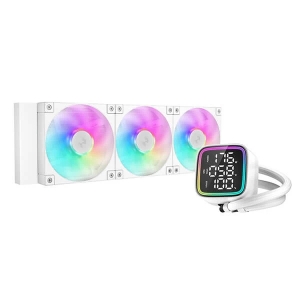

The new LD360 is a jump into the next evolution of DeepCool liquid coolers. Everything you love from DeepCool AIOs of the previous generation, but with the inclusion of a multi-line CPU status screen and a brand new GEN 5 pump! Clear up precious room on your desktop by moving the CPU monitoring software off your screen and onto the pump in your computer tower.
REAL-TIME CPU STATUS SCREENThe status screen displays the power consumption, temperature, and usage of your system's CPU in real time. A high temperature warning indicator will flash when the CPU temperature exceeds the 85 °C mark.
5th GENERATION PUMPBuilt on DeepCool's optimized 5th generation high-performance water pump, the LD360 brings cooling modern power-hungry CPUs to the next level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM, while staying under a quiet 21 dB(A).
LARGE DISPLAY WITH ARGB HALOSThe large multiple data points display of the LD series is unmistakable, but the LD coolers also utilize a bright gradient ARGB double halo effect that encapsulates the premium aesthetics of the LD pump design: beautifully bright as well as being functional. The ARGB of the entire cooler can be easily synced to ARGB headers on compatible motherboards.
FINE TUNED FD12 ARGB FANSOptimized FD12 ARGB PWM fans are included with the LD360 and have been fine-tuned to provide excellent cooling performance with a long-life Hydro Bearing. The LD360 includes two of these specialized FD12 fans, which have an easy-to-manage 8-pin cable that can be chained to each of the FD fans.
KEEPING IT SIMPLEFull control of the real-time status screen is provided via a simple-to-use application. Once installed, the entire application is found in the Notification Center of the taskbar, where you can switch between languages and choose between Celsius and Fahrenheit. The only interface that will be required is a connection to a USB 2.0 header on the motherboard.
SLEEK, CLEAN, AND STRONGThe large glass status screen, gradient ARGB halos, and a satin black finish add the finishing touch.
ANTI-LEAK TECHNOLOGYThe LD liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
QUICK AND EASYThe included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LD to the latest mainstream CPUs is included in the box, so you are ready to go.
