All stock codes associated to this product
MDP2DVIMM6BS, 2557441, 0065030854931
| Features |
|---|
| DisplayPort version | 1.2 |
| Converter type | Active |
| Chipset | Parade - PS171 |
| Cable length | 1.9 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Other features |
|---|
| Width | 40 mm |
| Height | 16 mm |
| Depth | 1900 mm |
| Weight & dimensions |
|---|
| Weight | 100.7 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 20 mm |
| Package weight | 123 g |
| Width | 40 mm |
| Height | 16 mm |
| Depth | 1900 mm |
| Packaging data |
|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 20 mm |
| Package weight | 123 g |
| Quantity per pack | 1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS, CE |
| Packaging content |
|---|
| Quantity per pack | 1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 150 pc(s) |
| Harmonized System (HS) code | 84733080 |

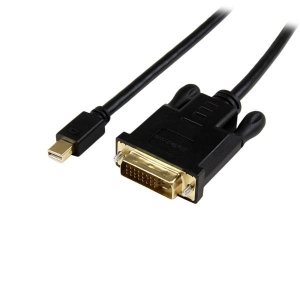

Connect a Mini DisplayPort-equipped PC or MAC to a DVI display, with an active 6ft cable
The MDP2DVIMM6BS 6ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook ® or Microsoft ® Surface™ Pro devices with mDP) directly to a DVI monitor or projector, saving the expense of additional adapters.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI ® Eyefinity cards.
Compatible with Intel ® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM6BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
