All stock codes associated to this product
CB-LZC6A-30BLU, CBLZC6A30BLU

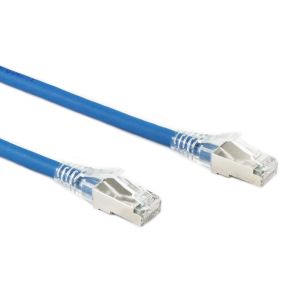

CAT6A ( CAT6 Augmented ) cable is an ideal solution for 10G network. It supports the higher frequencies required for 10G Ethernet and fully backwards compatible with CAT6 and CAT5e. All of our CAT6A cables are double shielded and fully screened to ensure immunity from Alien Crosstalk and other external interference and are specified up to frequencies of 500Mhz.
SFTP (Screened Foiled Twisted Pair) cabling offer shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable. This type of shielding protects EMI from entering or exiting the cable and also protects neighboring pairs from crosstalk.
Standards
Australian AS/CA S008:2010 Approval N18767
ANSI/TIA 568C.2 Approval
UL Approval UL444
ISO/IEC60332-1 Approval
ISO/IEC60332-3 part 24 Approval
ISO/IEC 11801 Approval
EN50288-4-2, EN50173 Approval
Specifications
Meets all augmented CAT6A TIA-568-C.2 requirements
Ideal Cable for 10 Gigabit Application
High Performance Data Communication Cable
Guaranteed Performance up to 500Mhz
Fully screened for alien crosstalk immunity
Fully shielded construction virtually eliminates ANEXT
LSZH Jacket
Plugmaster 50u gold-plated and shielded CAT6A connectors
Fluke DSX-5000 Component tested
Construction Facts
Cable features four individually aluminum/Mylar wrapped twisted pairs, and an overall tinned copper braided shield, foamed PE insulation, and a LSZH Jacket.
26AWG stranded copper conductors
specially designed RJ45 shielded plug with 50u gold-plated contact
snagless designed boot provides tab protection
Applications
10GBase-T ( IEEE 802.3an)
1000Base-TX ( TIA/EIA-854)
1000Base-T ( IEEE 802.3ab)
100 Base-TX ( IEEE 802.3u)
10base-T ( IEE 802.3)
