All stock codes associated to this product
R-LQ360-BKLSMW-G-1, RLQ360BKLSMWG1, CFDLQ360, CFD-LQ360, 6933412729167
| Performance |
|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Noise level (high speed) | 38.71 dB |
| Maximum airflow | 72.04 cfm |
| Maximum air pressure | 3.48 mmH2O |
| Number of fans | 3 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 9 |
| Pump connector | 3-pin |
| Fan noise level (max) | 38.71 dB |
| Fan bearing technology | Hydro bearing |
| Pump motor speed | 3400 RPM |
| Fan speed (min) | 600 RPM |
| Fan speed (max) | 2400 RPM |
| Design |
|---|
| Fan connector | 4-pin |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Product colour | Black |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Radiator material | Aluminum |
| LED connector type | 3-pin |
| Ports & interfaces |
|---|
| Fan connector | 4-pin |
| Pump connector | 3-pin |
| Power |
|---|
| LED voltage | 5 V |
| Fan power consumption | 2.64 W |
| Pump power consumption | 4.2 W |
| Pump voltage | 12 V |
| Pump current | 350 mA |
| Fan voltage | 12 V |
| Fan current | 0.22 A |
| LED power consumption (pump) | 2.4 W |
| LED power consumption (fan) | 3.15 W |
| Weight & dimensions |
|---|
| Weight | 1.84 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 12 cm |
| Radiator depth | 40.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 41 cm |
| Pump width | 7.6 cm |
| Pump depth | 8.9 cm |
| Pump height | 6.4 cm |
| Technical details |
|---|
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Packaging data |
|---|
| Package type | Box |
| Packaging content |
|---|
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Other features |
|---|
| Pump connector | 3-pin |
| LED voltage | 5 V |

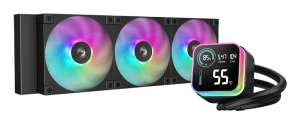

The LQ360 360mm AIO, a revolutionary cooling solution that seamlessly blends top tier performance with aesthetics. In the Segment LCD Screen ERA, the LQ360 exemplifies the perfect coexistence of appearance and functionality. Its low-profile and restrained design allows users to unleash the full potential of their hardware without compromising on style. The LQ360 also features an ARGB Halo on the magnetic pump head cover and triple FD12 ARGB fans, adding vibrant and customizable lighting elements that enhances the visual build appeal.
5 PRO GENERATION PUMPBuilt on DeepCool's optimized 5 PRO generation high-performance water pump, the LQ360 brings cooling modern power-hungry CPUs to a new level with its FOC (Field Oriented Control) Closed-Loop Control. The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.
DeepCreative: THE CONTROL CENTERBring all of the great features of the LQ coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have Halo ARGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.
- CPU Usage + Multi Color Circular Status Panel.
- CPU Frequency GHz.
- CPU TDP Wattage.
- CPU Temperature Status with Color Indicator in /.
SYNC UP YOUR SETUPThe ARGB Halo pump head along with a trio of FD12 ARGB Fans on the LQ360 adds a vibrant glow, transforming your build into a visual masterpiece. With full customization at your fingertips, you can easily control and synchronize the RGB lighting effects through compatible motherboards and controllers.
- Efficient Connectivity:Utilize the 8-PIN one-for-three cable for streamlined connections.
- High-Performance Cooling: Equipped with triple FD12 ARGB Fans, ensuring optimal airflow and cooling efficiency.
- Advanced Bearing Technology: Features a Hydro Bearing for smooth and quiet operation.
- Fan Speed: Operates at 600~2400 RPM with a tolerance of ±10%.
- Airflow: Delivers a powerful 72.04 CFM.
- Static Pressure: Achieves 3.48 mmAq for enhanced cooling performance.
- Noise Level: Maintains a maximum noise level of =38.71 dB(A), ensuring a quiet computing experience.
ANTI-LEAK TECHNOLOGYIncorporating DeepCool's patented Anti-Leak Technology, this system is designed to enhance the longevity and reliability of the AIO. The internal valve actively regulates pressure, releasing excess pressure when it surpasses atmospheric levels. This innovative feature not only extends the lifespan of the AIO but also significantly reduces the risk of leaks.
SIMPLIFIED INSTALLATIONThe included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LQ360 to the latest mainstream CPUs is included in the box, so you are ready to go.
