Part# DH-2908

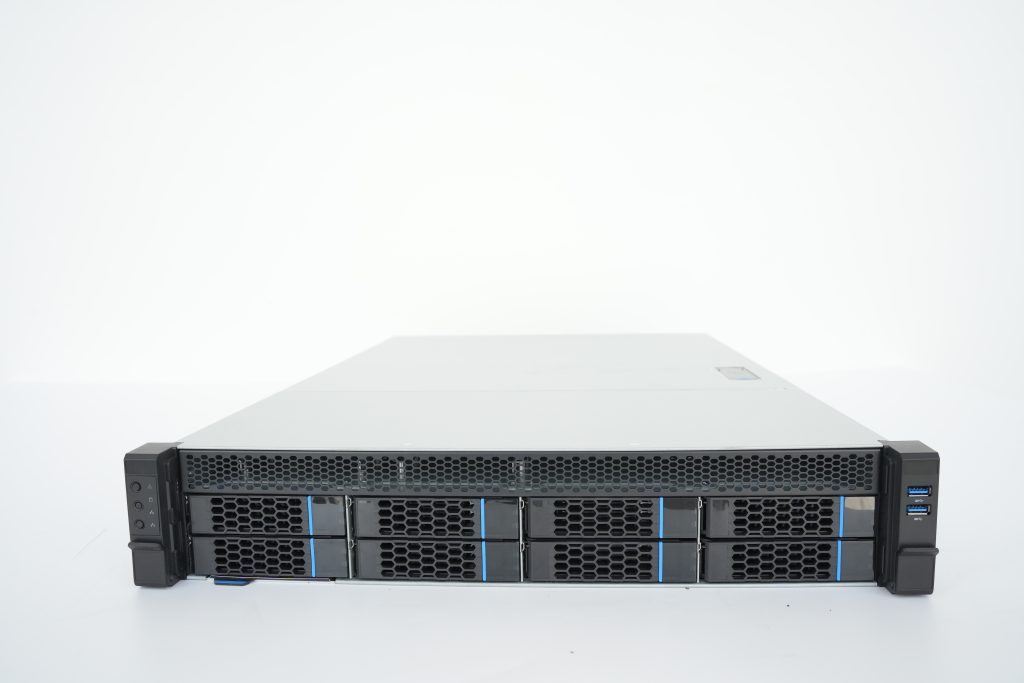

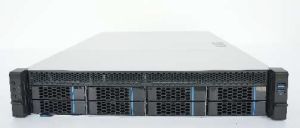

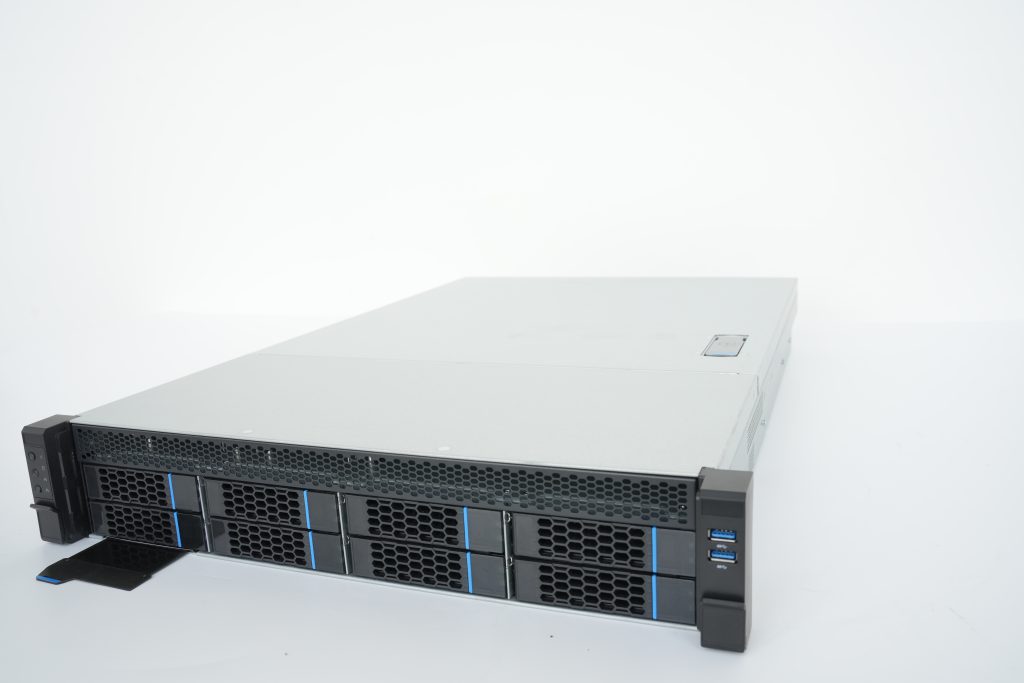

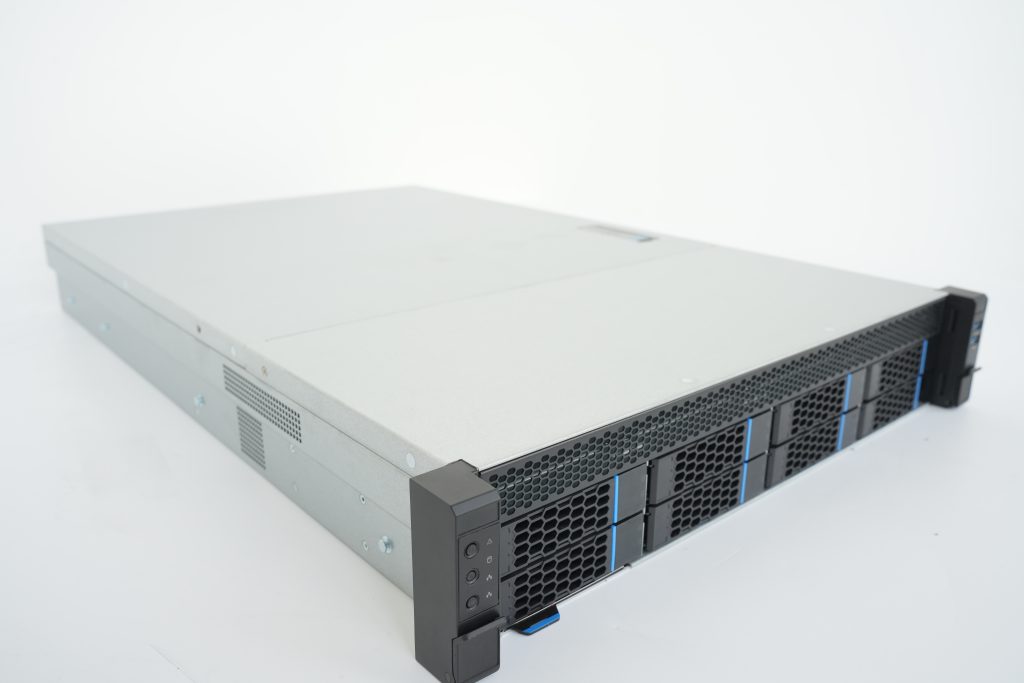

  • 2U Rackmount Server Chassis
  • 483 x 670 x 88mm
  • Single or Redundant 2U PSU Compatibility
  • Supports EEB, CEB, ATX, and Micro ATX M/B Form Factors
  • 8 Hotswap 3.5 Drive Bays
  • 7 Low Profile PCI Expansion Slots
  • The Sliding Rail Kit is not included but can be ordered separately with part numberTGC-03Y

Features:

  • 2U rackmount design, compatible with standard 19 server racks
  • Black front panel finish for a professional and sleek appearance
  • 8 x 3.5 hot-swappable drive bays with MiniSAS (SFF-8643) connectors
  • Supports EEB (12 x 13), CEB (12 x 10.5), ATX (12 x 9.6), and Micro ATX (9.6 x 9.6) motherboards
  • Front panel with power and reset switches, plus power, LAN, and HDD LED indicators

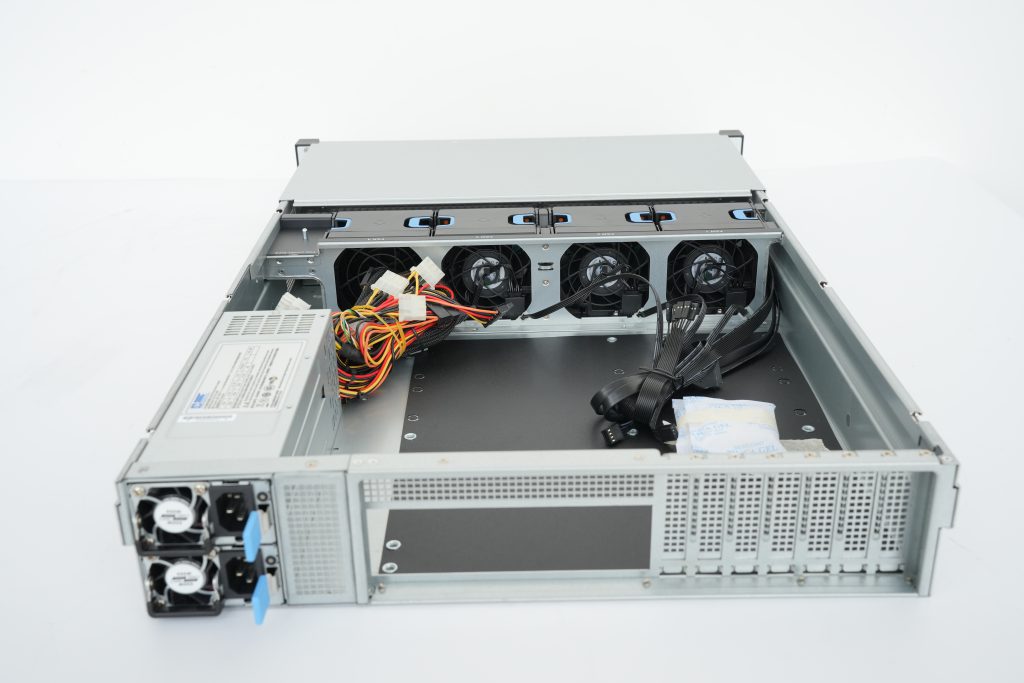

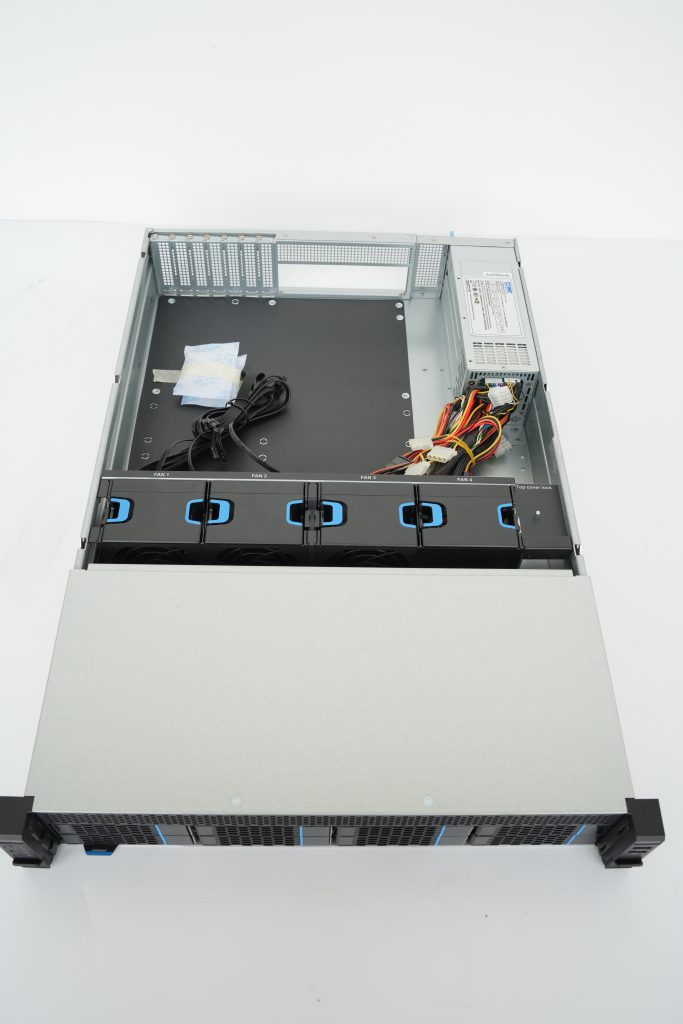

  • 4 x 80mm high CFM PWM fans for optimal cooling (3 fixed, 1 optional)
  • Supports single or redundant 2U power supplies for power redundancy
  • 2 x USB 3.0 front-accessible ports for fast data transfer
  • Approximate weight: 12.6kg

Specifications:

  • Drive Bay: 8 x 3.5 Hot-Swappable SATA/SAS Drive Bays
  • Cooling Fans: 4 x 80mm High CFM PWM Fans (3 fixed, 1 optional)
  • Switch: Power ON/OFF x 1, System reset x 1
  • Indicator: Power ON/OFF x 1, HDD x 1, LAN x 1
  • Connector: Front accessible USB 3.0 port x 2
  • Motherboard Compatibility:
    • EEB (12 x 13)
    • ATX (12 x 9.6)
    • CEB (12 x 10.5)
    • Micro ATX (9.6 x 9.6)
  • Power Supply: Single 2U or Redundant 2U 1+1 (TGC or Delta)
  • Dimensions (WxDxH): 483 x 670 x 88 mm
  • Packing: Double-boxed
  • Weight: 12.6 kg (approx)
  • Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
  • Relative Humidity: 5% to 95%, non-condensing
  • Vibration (5-500Hz): 1 Grms (Operating), 2 G (Non-Operating)
  • Shock: 10 G (11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
