HOME / Back -> Cases -> Server - 4U -> TGC

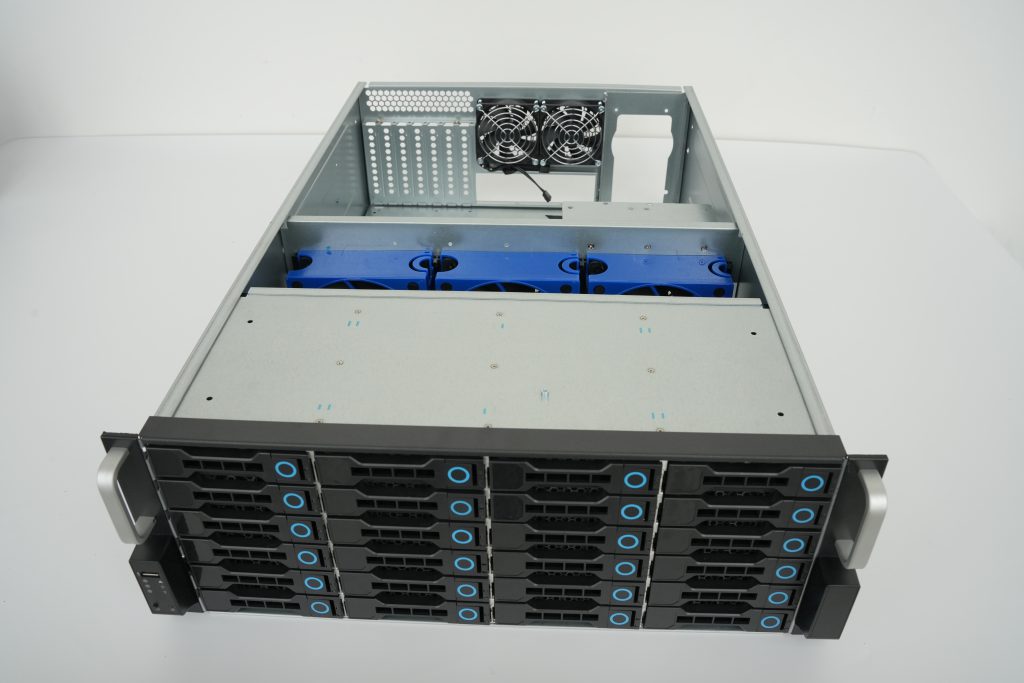

TGC DH-4024 Server Chassis 4U 680mm Depth with 24x 3.5" or 2.5" Hot-Swappable SATA/SAS Drive Bays, 12Gb/s MiniSAS

IMG 1 of 1
Our Price:
$1,265.00
or quickly purchase this product
Backorder
Part Number:
550350
(?) Brand:
TGC
Manuf No:
DH-4024
DH4024
Shipping Weight:
35 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
DH-4024, DH4024

Part# DH-4024

  • 4U Rackmount Server Chassis
  • 430 x 680 x 177mm
  • Standard ATX PSU Compatibility
  • Standard ATX M/B Form Factor
  • 24 Hotswap 3.5 Drive Bays
  • 7 Full Height PCI Expansion Slots
  • The Sliding Rail Kit is not included but can be ordered separately with part numberTGC-03A-PRO

Features:

  • 4U rackmount design, compatible with EIA RS-310C standard
  • Black front panel finish for a professional and sleek appearance
  • 24 x 3.5 hot-swappable drive bays with 12Gb/s MiniSAS (SFF-8643) backplane
  • Supports EEB (12 x 13) and standard ATX motherboards
  • Durable SGCC steel construction for reliability and strength
  • Front panel with power and reset switches, plus power, LAN, and HDD LED indicators
  • 3 x 120mm middle fan wall and 2 x 80mm rear cooling fans for efficient airflow
  • Supports ATX or 2U 1+1 redundant power supplies (TGC or Delta)
  • Front-accessible USB 2.0 port for easy connectivity
  • Double-boxed packaging for extra protection during shipping
  • Approximate weight: 23kg

Specifications:

  • Drive Bay:24 x 3.5 Hot-Swappable SATA/SAS Drive Bays
  • Cooling Fans:3 x 120mm Hot Swap Fan Wall, 2 x 80mm rear fans
  • Switch:Power ON/OFF x 1, System reset x 1
  • Indicator:Power ON/OFF x 1, HDD x 1, LAN x 1
  • Connector:Front accessible USB 2.0 port x 1
  • Motherboard Compatibility:
    • EEB (12 x 13)
    • ATX (12 x 9.6)
    • CEB (12 x 10.5)
  • Power Supply:Standard ATX or Redundant 2U 1+1 (TGC or Delta)
  • Dimensions (WxDxH):430 x 680 x 177 mm
  • Packing:Double-boxed
  • Weight:23 kg (approx)
  • Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
  • Relative Humidity:5% to 95%, non-condensing
  • Vibration (5-500Hz):1 Grms (Operating), 2 G (Non-Operating)
  • Shock:10 G (with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
