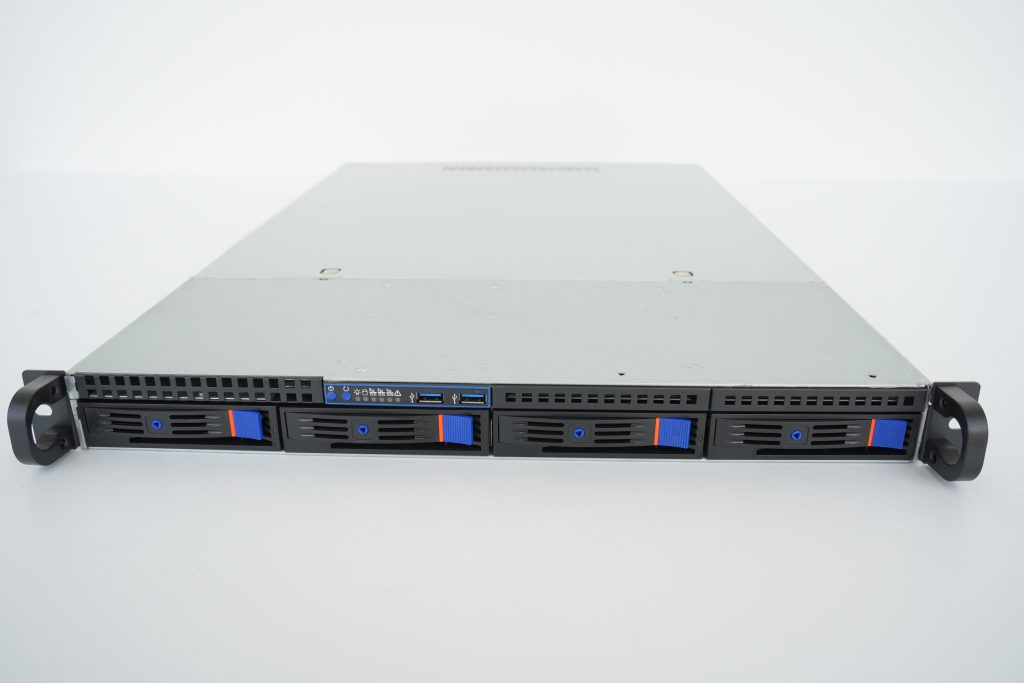

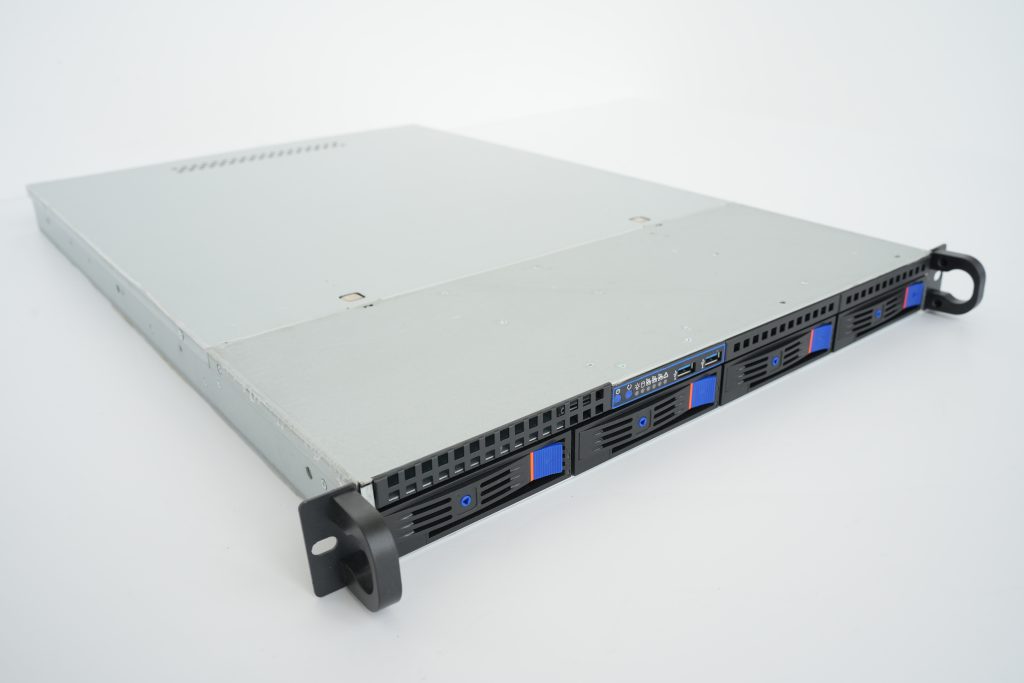

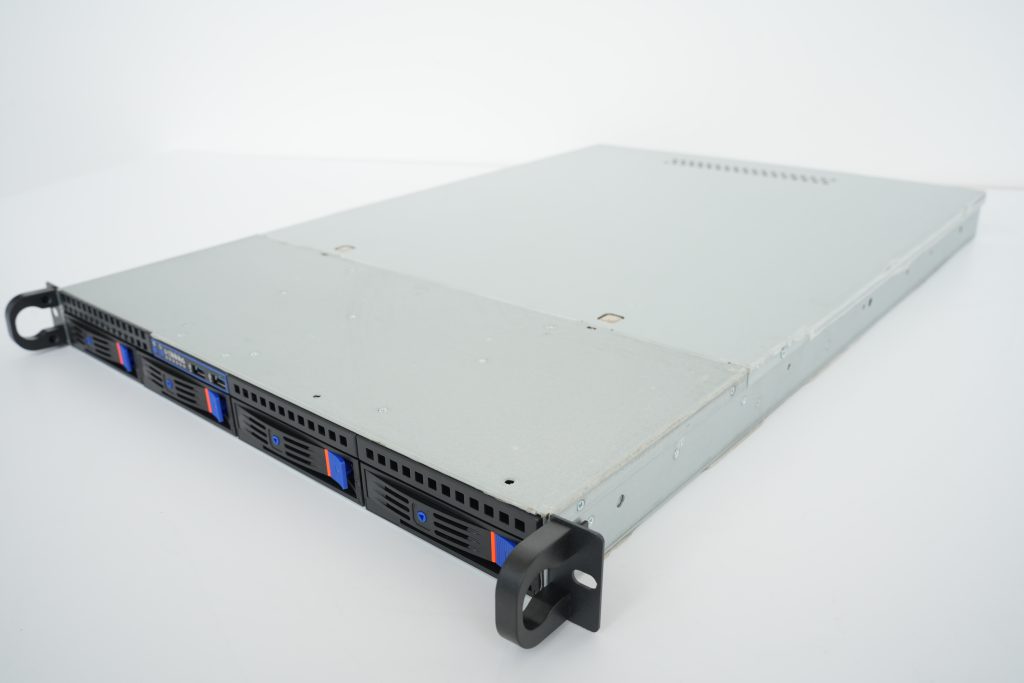

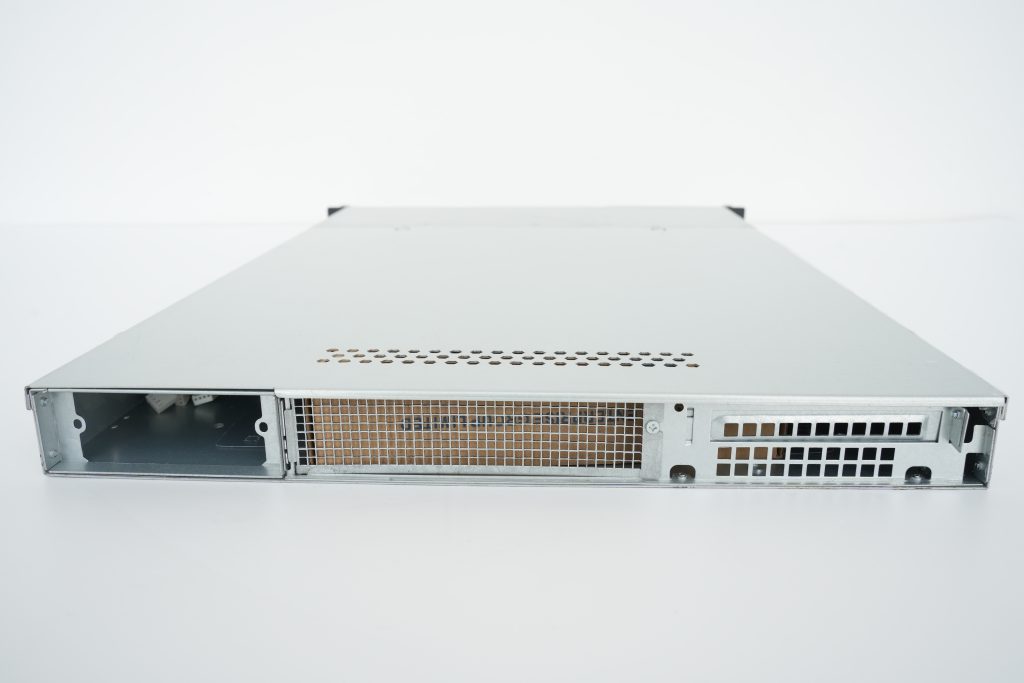

TGC TGC-1404 Rack Mountable Server Chassis, 1U, 4x3.5" Hot-Swappable SATA Drive Bays, 650mm Depth, Suits EEB (12`x13`)MB Form Factor, 1 Slim ODD - no PSU

IMG 1 of 1
Our Price:
$339.00
or quickly purchase this product
Backorder
Part Number:
550351
(?) Brand:
TGC
Manuf No:
TGC-1404
TGC1404
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
TGC-1404, TGC1404

Part# TGC-1404

  • 1U 650mm Depth Case, suitable as Web, Application, Storage Server, Video Surveillance Recording Server
  • 2x 2.5 Fixed HDD/SSD Bay (Internal)
  • 4x 3.5 Hotswap HDD/SSD Bay (Front). Note: The disk caddy supports both 2.5 and 3.5 drives.
  • 1x Slim ODD Bay
  • Support Mini-ITX, Micro ATX, Standard ATX, Extended ATX motherboard

Features:

  • 1U rackmount design, meets EIARS-310C standard
  • 650mm Chassis Depth
  • 430mm Chassis Width
  • 44.4mm Chassis Height
  • 1U Single PSU Compatibility
  • EEB (12 x 13) M/B Form Factor
  • 2 Fixed Bays Internal 2.5
  • 4 Hot-Swap Bays 3.5
  • 1 Slim ODD
  • 1 Full Height PCI Expansion Slot (FH PCIe Riser Card Required)

Specifications:

  • Drive Bay:2x 2.5 Fixed HDD/SSD Bay, 4x 3.5 Front Hotswap HDD/SDD Bays, 1x Slim ODD Bay
  • Hot-Swap Backplane: 4x 3.5 SATA 6Gbps Hot-Swap with SATA Discrete Connectors on Backplane Molex Power Input

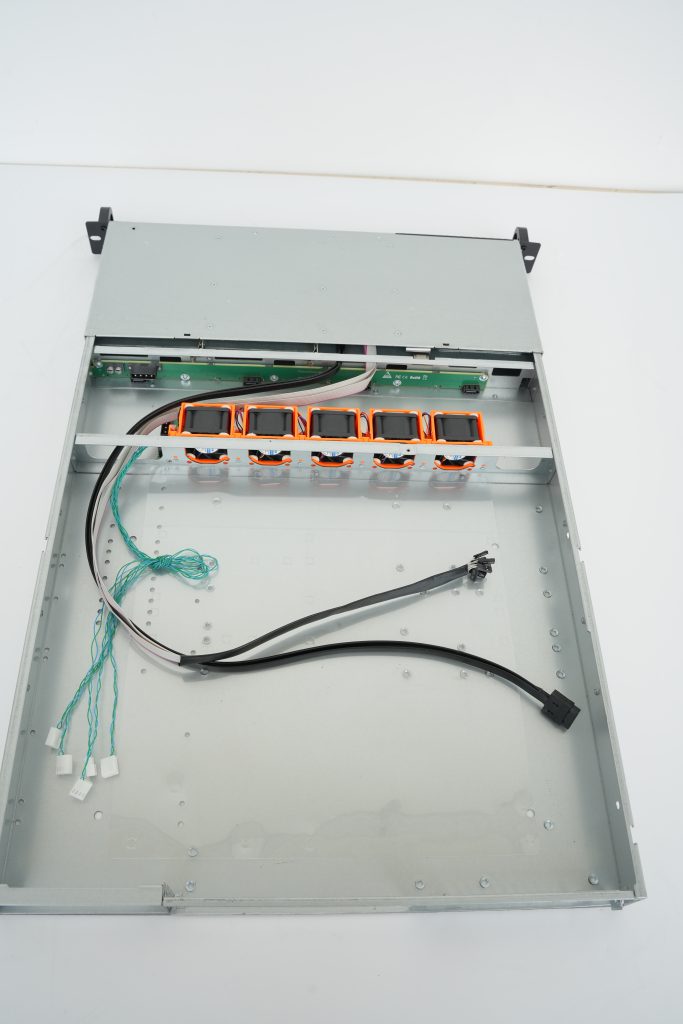

  • Cooling Fan:5 x 40mm middle fans
  • Switch:1x Power ON/OFF, 1x System reset
  • Indicator:1x Power ON/OFF, 1x HDD, 3x Network
  • Connector:2x USB2.0 front accessible USB port
  • Motherboard Compatibility:Support Mini-ITX, Micro ATX, Standard ATX, Extended ATX
  • Power Supply:Standard 1U power supply(PSU is not included)
  • Dimensions (WxDxH):430mm x 650mm x 44.4mm
  • Weight:12kg
  • Environment:
    • Operating Temp.0C ~ 55C (32F ~ 131F)
    • Non-Operating Temp.-20C ~ 60C (-4F ~ 140F)
    • Relative Humidity:5%~ 95%,non-condensing
  • Vibration (5-500Hz):1g (Operating), 2g (Non-Operating)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base
