All stock codes associated to this product
R-CH260-WHNGM0-G-1, RCH260WHNGM0G1, CADCH260WH, CAD-CH260-WH, 6933412765240
| Design |
|---|
| Form factor | Micro Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | micro ATX, Mini-ATX, Mini-ITX |
| Product colour | White |
| Number of 2.5" bays | 1 |
| Side window | Yes |
| Number of expansion slots | 4 |
| Maximum CPU cooler height | 17.4 cm |
| Maximum graphics card length | 41.3 cm |
| Power supply |
|---|
| Number of power supply units | 1 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB Type-C ports quantity | 1 |
| Cooling |
|---|
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240,360 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Weight & dimensions |
|---|
| Width | 225 mm |
| Depth | 438 mm |
| Height | 312.5 mm |
| Weight | 5.3 kg |

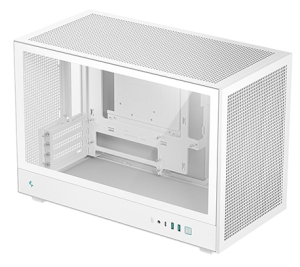

The CH260 is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.
GO MICROThe Micro Form Factor CH260 comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.
SMALL SIZE OUTSIDE, FULL SIZE INSIDEThe CH260 provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATIONThe wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.
