DVI KVM Extender


The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard, monitor, and mouse). Because it allows access to a computer system from a remote console, the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location away from the dust and dirt of the factory floor, or the harsh environmental infl uence of a construction site, for example. This allows users to deploy system equipment over large distances.

CE600

The CE600 users one Cat 5e cable (DVI Single Link) to support up to 1920 x 1080 video resolution

The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals.

Features:

  • Local and Remote Units connect at distances up to 60 m using Cat 5e cable
  • Allows access to a computer or KVM installation from a remote console (up to 60 m)
  • Features ATEN technology that allows A/V transmission over one cat 5e cable
  • The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
  • Manual compensation control to adjust signal strength in order to compensate for distance
  • RS-232 serial ports connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps)
  • Audio Enabled supports stereo speakers and microphone
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Supports Wide Screen formats
  • Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m get an excellent, crisp image on your screen over long distance transmissions
  • Hot pluggable
  • Rack mountable
  • Easy to install no software required connecting cables to the devices is all it takes
  • Firmware upgrade

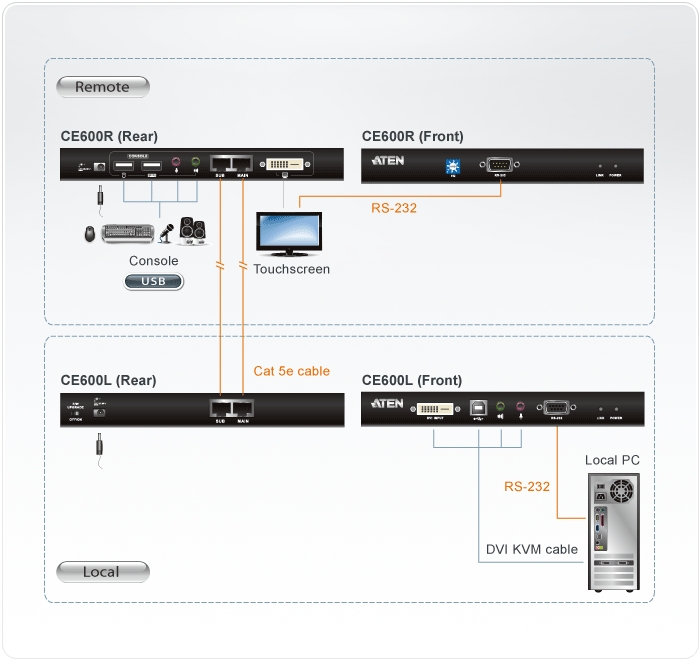

Diagram

CE600 Diagram

Specifications

Function CE600L CE600R
Connectors Console
Ports
Keyboard N/A 1 x USB Type A Female (White)
Video N/A 1 x DVI-D Female (White)
Mouse N/A 1 x USB Type A Female (White)
Speakers N/A 1 x Mini Stereo Jack Female (Green)
Mic. N/A 1 x Mini Stereo Jack Female (Pink)
KVM
Ports
Video 1 x DVI-D Female (White) N/A
Speakers 1 x Mini Stereo Jack
Female (Green)
N/A
Mic. 1 x Mini Stereo Jack
Female (Pink)
N/A
USB 1 x USB Type B Female
(White)
N/A
RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black)
Power 1 x DC Jack
Sub/Main 2 x RJ-45 Female (Black)
LEDs Link 1 (Green)
Power 1 (Green)
Switches EQ Switch N/A 1 x 8-position switch
Firmware Upgrade 1 x Slide Switch N/A
Emulation Keyboard/Mouse USB
Video 1920 x 1200 @ 60Hz (30 m);
1024 x 768 @ 60Hz (60 m);
Power Consumption DC5.3V/2.65 W DC5.3V, 4.24 W
Environment Operating Temp. 050C
Storage Temp. -2060C
Humidity 080% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.48 kg
Dimensions
(L x W x H)
20.20 x 8.54 x 2.50 cm 20.20 x 8.70 x 2.50 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
