Serveredge 2 Port DVI Video Splitter
Product Description

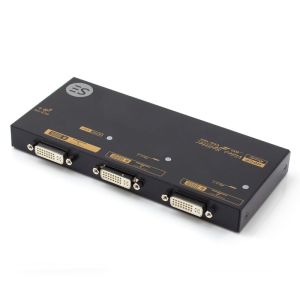

The Serveredge 2 Port DVI Video Splitter is an easy and affordable solution for duplicating one video input into multiple DVI outputs.
Product Specification
Number of Video Outputs : 2
Video Resolution (max.) / Signal Type: Full HD 1080p (1920 x 1080) / VGA (640 x 480) / SXGA (1280 x 1024) / UXGA (1600 x 1200) / WUXGA (1920 x 1200)
LED Indicators Power active Video OK: Dual color x 1
LED Indicators Video outputs : 2
Rack Mountable (optional): N/A
Cable Length (max.) : 10M (depends on cable quality)
Connectors Input : DVI Female x 1
Connectors Output : DVI Female x 2
Enclosure : Metal
Power Consumption (Max.) : 2.7W, 2.8W
Operating Voltage : DC 9~12V
Dimensions H X W x D (mm) : 20 x 180 x 85
Package Includes
DVI Video Splitter
Power Adapter Set (option: Power Adapter with necessary AC Cord/Plug-in Power Adapter)
User's Manual
Foot Pad Set
Product Feature
- Easy and affordable way to duplicate one video input to multiple DVI outputs
- Automatic power-save when signal input is lost
- Cascaded operation for increased signal outputs
- Crisp clear video images
- Support EDID, HDCP, and is Blu-ray ready for high definition display
- Support DVI / HDMI display resolutions of up to UXGA (1600 x 1200), WUXGA (1920 x 1200), Full HD 1080p (1920 x 1080)
- Support audio function for HDMI / Audio over DVI source devices
- LED indicators for signal activity monitoring
- Accurate and reliable reproduction of digital video signals without attenuation and distortion
- Installs in seconds
