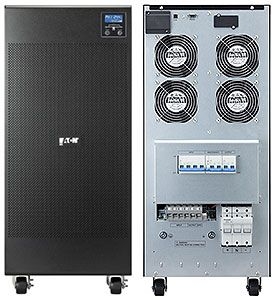

EATON 9E15KI 9E 15000VA Tower UPS - Online Double Conversion, 12000W

IMG 1 of 1
Our Price:
$9,402.40
RRP:
$13,336.40
You Save:
$3,934.00
or quickly purchase this product
Backorder
Part Number:
441288
(?) Brand:
EATON Web Site
Manuf No:
9E15KI
Shipping Weight:
154.7 KG (Includes product packaging)
Estimate Shipping
Date Added:
8/2/2019
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
9E15KI, 2741767

Eaton 9E15KI 9E UPS Tower



Features

  • Online double conversion topology
  • Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status
  • Provides more real power (watts) to protect more equipment with a 0.8 power factor
  • Internal bypass and maintenance bypass are available as standards
  • Combo input (3:1 and 1:1) on the 10kVA, 15kVA, 20 kVA
  • XL models with internal supercharger for extra-long runtime
  • Communication through USB, RS232 serial or over the network with an optional network card
  • Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
  • CE compliance certified by external agency (CB report from the TUV)

Overview

Eaton 9E UPS

The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.

Specifications

General

Topology

Online double conversion

Configuration

Tower

Part Number

9E15Ki

Rating (VA/Watts)

15000/12000

Dimensions (H x W x D, mm)

815.5 x 350 x 706

Weight (kg)

145.3

Warranty

1 year

Electrical Input

Connection

Hardwired - see manual for terminal block layout

Hardwired - example layout only

Input Voltage Range

176-276V without derating (up to 110-276V with derating)

Nominal Voltage

220/230/240V

Frequency

50/60 Hz autoselection

Frequency Range

45-66 Hz

Short Circuit Current

205 A

Electrical Output

Voltages

220V/230V/240V 2 %

Voltage THD

<3%

Outlets

Hardwired - see manual for terminal block layout

Hardwired - example layout only

Overload Capacity

105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, >150% : 100ms

Efficiency (Normal Mode)

Up to 93% in Online mode, 97% in ECO mode

Output Frequency

50/60 Hz autoselect

Communications

Communication Ports

1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)

Communication Slot

1 slot for Network-MS, ModBus-MS or Relay-MS cards

Power Management Software

Intelligent Power Software

Environmental & Standards

Audible Noise

<55dB

Operating Temperature

0 to 40C

Safety markings

IEC/EN 62040-1

EMC Markings

IEC/EN 62040 -2

Approvals

CE, CB report (TUV)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (EATON) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
