Epson V12H927053 ELP-CB03 Cable
Management & Connection Box
Features
- Centralised Control Box – manage your Epson short-throw or
ultra-short-throw projector (power, AV mute, volume, sources; wall mounted, no
remote control needed)
- Optimised for connectivity – supports an array of sources, including 2
HDMI inputs for displaying content from high-definition devices, connect the
latest MHL-enabled smartphone or table via MHL cable
- Consolidated Cable Management – convenient wall placement helps avoid
potential hazards
- Increased Flexibility – use as an extension box to expand the range of
your cables
- Easy Operation – large, individual source buttons intuitively match Epson
projector inputs, including a new direct source button for HDMI3
- Amplify Instruction – optional speakers boost sound and ensure the entire
class can hear the lesson
Overview
Centralised Control Box
The Epson ELP-CB03 Connection and Control Box is a solution that offers
extensive control of multimedia sources connected to Epson's wall-mounted
short-throw and ultra-short-throw classroom projectors.
The ELP-CB03 is a wall-mountable control box which features large, easy to
use control buttons and a cable cover that creates a clean, organised look to
help avoid cable chaos. The control box is designed to mount on the wall next to
the projected image, making it easily accessible to educators and enabling them
to change sources or adjust volume with the press of a button, eliminating the
need for a projector remote control.

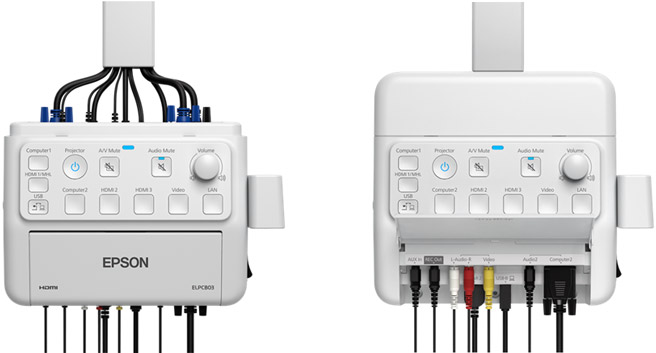

Connectivity Configurations

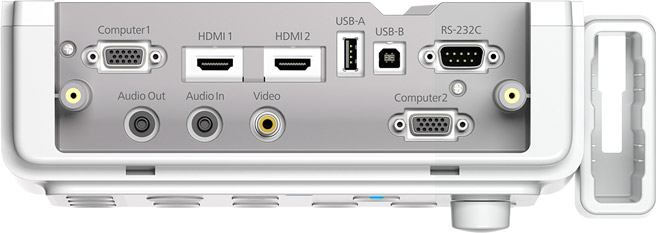

Top View

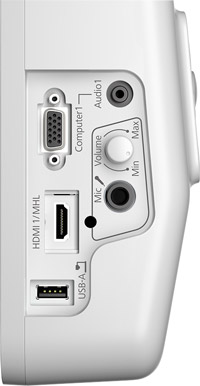

Side View
Specifications
|
PRODUCT
TYPE |
Projector
Cable Management |
|
PRODUCT
NAME |
Epson
ELP-CB03 Cable Management & Connection Box |
|
PRODUCT
CODE |
V12H927053 |
|
Whats
in the Box |
Epson
ELPCB03, Power Cable, AC Adapter, AC Adapter holder, Interactive Pen
Holder, Cable Cover with screw, HDMI Cable Clamp, User
Guide |
|
I/O |
|
|
INPUT |
|
|
Video |
2
x VGA |
|
|
Composite
Video |
|
|
2
x HDMI (1 x MHL) |
|
|
USB-A |
|
|
USB-B |
|
Audio |
4
x Stereo mini jack (3.5mm) |
|
|
RCA
Connector (L and R) |
|
|
Mic
In (6.3mm) |
|
OUTPUT |
|
|
Video |
2
x VGA |
|
|
Composite
Video |
|
|
2
x HDMI |
|
|
USB-A |
|
|
USB-B |
|
Audio |
2
x Stereo mini jack (3.5mm) |
|
CONTROL |
RS-232C
(9 pin) |
|
GENERAL |
|
|
OPERATING
TEMPERATURE |
5°C
to 35°C |
|
OPERATING
HUMIDITY |
20%
TO 80% RH |
|
DIMENSIONS |
230
W x 83 D x 226 H mm (with cover) |
|
WEIGHT |
1.2kg |
|
POWER |
|
|
POWER
SUPPLY VOLTAGE |
100
- 240V AC/DC |
|
POWER
FREQUENCY |
50/60Hz |
|
AC
ADAPTOR OUTPUT VOLTAGE |
DC
12V |
|
POWER
CONSUMPTION |
12W |
|
POWER
CONSUMPTION (Standby Mode) |
0.1W |
|
WARRANTY |
|
|
STANDARD
WARRANTY |
1
year |
