All stock codes associated to this product
VE892ATU, VE892-AT-U, KVAVE892, KVA-VE-892
Aten HDMI Optical Extender (1080p@20km)
Overview
- Extends the transmission range of HDMI, IR and RS-232 signals using one
fiber optic cable
- Very long distance transmission up to 20km
- HDMI (3D, Deep Color), HDCP compatible signaling rates up to 3.125
Gbits
- Supports bi-directional IR signal transmission, one way at a
time

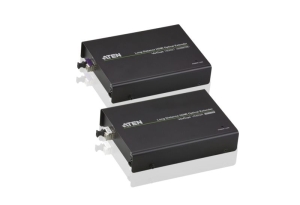

The VE892 is an Optical HDMI Extender that overcomes the length restriction
of standard HDMI cables by using optical fiber to send high definition audio and
video signals over large distances.
The VE892 accepts an audio-video stream from a local source and serializes
the data to pass it over a single 3.125 Gbps optical link (for resolutions up to
1080p@60Hz at 24-bits)
The VE892 can also extend the IR remote control and transfer RS-232 (up to
115kbps) in both directions, allows you to connect serial devices such as touch
screens and barcode scanners.
Package Contents
- 1x VE892T
- 1x VE892R
- 1x IR Transmitter
- 1x IR Receiver
- 1x Mounting Kit
- 2x Power Adapters
- 1x User Instructions
Features
- Extends the transmission range of HDMI, IR and RS-232 signals using one
fiber optic cable
- Very long distance transmission up to 20km
- HDMI (3D, Deep Color), HDCP compatible signaling rates up to 3.125
Gbits
- Superior video quality up to 1080p@60Hz
- Supports full frequency IR signal from 30KHz to 60KHz
- (The IR receiver cable included with the package only supports 30 KHz to
56 KHz)
- Uses one fiber optic cable to connect the local and remote
units
- Supports wide screen formats
- Built-in 8KV/15KV ESD protection
- Features RS-232 serial port for connecting peripherals such as touch
screens, barcode scanners, etc.
- Supports bi-directional IR signal transmission, one way at a
time
- Rack-mountable
- Hot-pluggable
