All stock codes associated to this product
PRIME B650M-A WIFI II, PRIMEB650MAWIFIII, 5796038, MBAB650MAPRIWFII, MBA-B650M-A-PRI-WFII, II359636, 90MB1EG0M0UAY0, 90MB1EG0-M0UAY0, PRIME-B650M-A-WIFI-II, 4711387034941
| Performance |
|---|
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| RAID levels | 0, 1, 10 |
| Windows operating systems supported | Windows 10, Windows 11 |
| Processor |
|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 7 |
| Processor socket | Socket AM5 |
| Memory |
|---|
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers |
|---|
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 2 |
| RAID support | Yes |
| Internal I/O |
|---|
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Power fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of SATA connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features |
|---|
| Power source type | ATX |
| Component for | PC |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10, Windows 11 |
| Expansion slots |
|---|
| PCI Express x16 (Gen 4.x) slots | 3 |
| BIOS |
|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Power |
|---|
| Power source type | ATX |
| Weight & dimensions |
|---|
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content |
|---|
| Cables included | SATA |
| Bundled software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Technical details |
|---|
| Total number of SATA connectors | 4 |

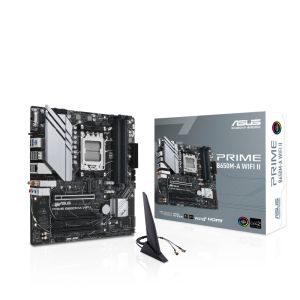

B650M-A WIFI II ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
CPU Performance Boost AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
All-Around Energy Efficiency The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Cooling Controls ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.
Precise Digital Power Control The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
UEFI BIOS The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and Simple Setup EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings – all to help you get your rig up and running in no time
Intuitive Graphical Fan Control Fine-tune individual fan settings simply by dragging a curve with the mouse.
Aura On/Off Mode (Stealth) Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
COOLING PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
VRM Heatsink and Thermal Pad VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Six-Layer PCB Design Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds.
Stack Cool 3+ 2-ounce copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds.
Cooler by Design Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
Smart Protection A dedicated integrated circuit protects each fan header from overheating and overcurrent
4-Pin PWM/DC Fan Each onboard header supports auto-detection of PWM or DC fans.
PERFORMANCE The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options
DDR5 Performance Enhancement Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A WIFI II, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked. For entry-level modules without EXPO™ memory support, we’ve got you covered. Click here to learn more about AEMP. arrow. For those who want to fly past stock DDR5 speeds, the PRIME B650M-A WIFI II is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI
