HOME / Back -> Cables -> Video - HDMI -> ATEN

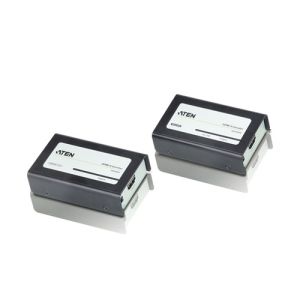

ATEN VE800A HDMI Cat5 Extender
  • Supports up to 1080p@40m

IMG 1 of 4
Our Price:
$102.55
RRP:
$167.20
You Save:
$64.65
or quickly purchase this product
Backorder
Part Number:
102078
(?) Brand:
ATEN
Manuf No:
VE800A-AT-U
VE800AATU
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
VE800AATU, VE800A-AT-U, KVAVE800A, KVA-VE-800A, 4719264642241

Overview



The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATENs VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the displays EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

HDMI ROHS Weee



Features

  • Extends the distance between HDMI source and HDMI display
  • Uses Cat 5e cable to connect the local and remote units
  • Features ATEN EDID technology that allows transmission over one Cat 5e cable
  • Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
  • Superior video quality – 1920 x 1200, up to 1080p
  • HDMI (3D, Deep Color); HDCP Compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • 8 segment equalization adjustment switch optimizes display quality
  • DDC compatible



Specifications

Video Input

Interfaces

N/A

Impedance

N/A

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100

Video

Max. Data Rate

6.75 Gbps (2.25 Gbps Per Lane)

Max. Pixel Clock

225 MHz

Compliance

HDMI (3D, Deep Color)

HDCP Compatible

Max. Resolutions / Distance

Up to 1080p@40m; 1080i@60m

Audio

Input

N/A

Output

1 x HDMI Type A Female (Black)

Power

Connectors

1 x DC Jack

Consumption

5 VDC, 0.75W

Environmental

Operating Temperature

0 - 50C

Storage Temperature

-20 - 60C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.16 kg ( 0.35 lb )

Dimensions (L x W x H)

9.00 x 5.50 x 2.20 cm

(3.54 x 2.17 x 0.87 in.)

Carton Lot

5 pcs

Package Contents

1x VE800AT HDMI Extender

1x VE800AR HDMI Extender

2x Power Adapters

1x Mounting Kit

1x User Instructions

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
