Overview

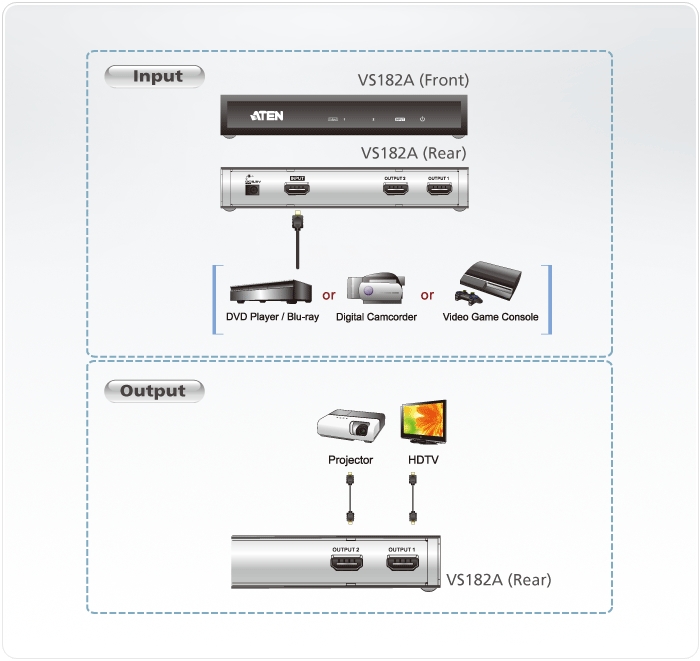

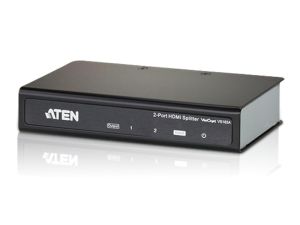

The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays
The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection)
compliant, making it effective for use with all HDMI displays in home theater
applications, as well as in corporate, educational and commercial settings
Features
- Connects one HDMI source to two HDMI displays at the same time
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports Dolby True HD and DTS HD Master Audio
- Long distance transmission – up to 15 m (24 AWG)
- Supports up to 340MHz bandwidth for high performance video
- Plug-and-play – no software installation required
Specifications
|
Video
Input |
|
|
Interfaces |
1 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
Max.
Distance |
1.8
m |
|
|
|
Video
Output |
|
|
Interfaces |
2 x HDMI Type A Female
(Black) |
|
Impedance |
100
|
|
|
|
Video |
|
|
Max. Data
Rate |
10.2 Gbps (3.4 Gbps Per
Lane) |
|
Max. Pixel
Clock |
340
MHz |
|
Compliance |
HDMI (3D, Deep Color,
4K); |
|
HDCP
Compatible |
|
Max.
Resolution |
Up to 4096 x 2160 /
3840 x 2160 @ 60Hz (4:2:0); |
|
4096 x 2160 / 3840 x
2160 @ 30Hz (4:4:4) |
|
Max.
Distance |
Up to 15
m |
|
|
|
Audio |
|
|
Input |
1 x HDMI Type A Female
(Black) |
|
Output |
2 x HDMI Type A Female
(Black) |
|
|
|
Power |
|
|
Connectors |
1 x DC
Jack |
|
Consumption |
5.3 VDC,
2.0W |
|
|
|
Environmental |
|
|
Operating
Temperature |
0-50
C |
|
Storage
Temperature |
-20 - 60
C |
|
Humidity |
0 - 80% RH,
Non-Condensing |
|
|
|
Physical
Properties |
|
|
Housing |
Metal |
|
Weight |
0.31 kg ( 0.68 lb
) |
|
Dimensions (L x W x
H) |
12.50 x 8.00 x 2.50
cm |
|
(4.92 x 3.15 x 0.98
in.) |
|
|
|
Carton
Lot |
20
pcs |
|
|
|
Package
Contents |
1x VS182A 2-Port HDMI
Splitter |
|
1x Power
Adapter |
|
1x HDMI
Cable |
|
1x User
Instructions |
