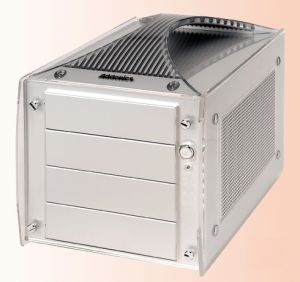

Addonics Storage Tower - Silver
  • 4xeSATA Ports

IMG 1 of 1
No Longer Available
Part Number:
129513
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, ST4ESA

Storage Tower with 4 eSATA ports
Include power cord and user guide

The Storage Tower is another innovative storage enclosure solution from Addonics that offers tremendous customization flexibility that you can ever imagine. Comes with 4 standard 5 1/4" drive bays, a strong power supply and in a compact footprint, the Storage Tower can accommodate up to 4 full height optical drives or 5 3.5" hard drives; or a combination of these devices in various mixes. With choice of back panels featuring eSATA, USIB connectors or both, various IDE, ATAPI or SATA devices installed into the Storage Tower can be individually interfaced to computers via USB 2.0, Firewire or eSATA connection for a wide range of storage applications.

Using the back panel with eSATA connectors, you can build yourself a high performance (up to 3 Gbits/sec using SATA II) external storage system or a terabyte storage farm, with simple inexpensive eSATA cable and up to 6 feet distance from the computer system! Any SATA devices inside the Storage Tower can be easily converted into eSATA (the latest external SATA standard). Each drive can be connected directly to a eSATA host controller for maximum throughput in any system. With Addonics USIB interface on the back panel, any IDE device in the Storage Tower can be converted into USB 2.0 or Firewire connection by attaching the Addonics optional USIB interface cables.


Features

  • Great for variety of storage applications - external RAID storage, Video storage, Server storage.
  • 4 standard 5 1/4" drive bays
  • Accommodate up to maximum 4 standard ATAPI optical devices or 4 3.5" hard drives, or 5 3.5" hard drives (requires the Disk Array 4SA and 1 mobile rack)
  • Choice of back panel for interface to system via eSATA, USB 2.0 or Firewire connection
  • Option SATA Port Multiplier model to connect up to 5 SATA/SATA II hard drives to computer via 1 eSATA port
  • Stylish clear acrylic exterior
  • Light weight and sturdy aluminum construction
  • Compact size
  • Ventilated side panels for efficient air flow
  • Dual ball bearing high CFM low noise cooling fans
  • 220W 110/220 power supply
  • Individual storage device can be hot swapped* when using SATA Mobile Racks

* For eSATA connection, hot swap feature depends on the controller. All Addonics SATA controllers support the hot swap feature. The Storage Tower can be powered down and restarted to swap out hard drive without rebooting the system.

Specifications

Drive Bays 4 standard 5 1/4" drive bays
Connectors on back panel
model: ST4US
model: ST5ESA1US
4 USIB connectors
5 eSATA and 1 USIB connector

Supported interfaces

back panel with USIB connector - USB 2.0/1.1 or Firewire/iLink interface using Addonics USIB interface cables

back panel with eSATA connector - SATA interface

Supported Operating Systems

USB 2.0/1.1 - Windows 98SE, Me, 2000, XP, 2003, Linux kernel 2.4 and higher, Solaris 9.0 and higher

Firewire/iLink - Windows 98SE, Me, 2000, XP, 2003, Mac OS 9.0

SATA - DOS, Windows NT/SP6, 98SE, Me, 2000, XP, 2003, Linux kernel 2.4 and higher, Mac OS

Power Supply:

220 Watts 110/220V input
Cooling fan 2

Weight:

9.1 lb (4.13 kg)

Size:

8.19 x 12.94 x 8 inch (W x D x H)

Operating Humidity:

20% - 80%

Operating Temperature:

5C - 35C

Warranty:

One Year

Note
The compatibility of ATAPI DVD+/-RRW and CDRW drives connecting to USB or Firewire depends on several factors: the firmware in the ATAPI drive, the software, OS and the USB 2.0 electronics. We have tested a number of drives in this enclosure using Nero Express software and Cyberlink PowerDVD. The table below summarizes the list of drives that have been tested to work with this enclosure. It is not possible for us to test all the different models of ATAPI devices out in the market. We will constantly update this list whenever new device has been tested. We cannot guarantee that all ATAPI devices will work in this enclosure. If you are installing a device that is not in the list below, make sure you are using the latest version of software and firmware to ensure better compatibility. We apologize that we cannot offer technical help on devices that are not in our list. However, we can offer to test the drive for you if you can send us the drive. Please email this request to [email protected] to make the arrangement.

Drive type
Model
DVD+/-R/RW, DVD-RRW

Pioneer DVR-104 6x2x1x8x4x24
Pioneer DVR-105 4x2x16x8x32
Pioneer DVR-106D 4x2x4x2.4x12x16x10x32
Pioneer DVR-107D 8x4x8x4x12x24x24x32
Pioneer DVR-110D
TEAC DV-W50D 12x4x2.4x2x16x10x32
LG GSA-4082B, 4120B and 4160B
Toshiba SD-R5372
DVD/CDRW

LG CDRW/DVD GCC-4120B 8x12x8x32
RICOH RW9200A 12x20x10x40
SAMSUNG SM-332B 12x32x10x40
SAMSUNG SM 316 12x16x10x40
SAMSUNG SM-308B 8x8x4x32

CDRW
 AOPEN CRW2440 24x10x40
LG DVRW GCC4320B 16x32x10x40
LG CDRW GCC-4120B 8x12x8x32
LG CDRW GCC-8520B 52x24x52x16
LITE-ON LTR-16102B 16x10x40 CDRW
LITE-ON LTR 24102B 24x10x40 CDRW
LITE-ON LTR 32123s 32x12x40 CDRW
LITE-ON LTR 40125W 40x12x48 CDRW
LITE-ON LTR 48125W 40x12x48 CDRW
LITE-ON LTR 52246S 52x24x52 CDRW
TDK CDRW 241040X
TEAC CD-W516E 16x10x40
TEAC CD-W540E 40x12x48
YAMAHA 2100E 16x10x40


System Requirements

  • PC/AT or Compatible System
  • One of the following IO ports: USB 2.0/1.1, Firewire/iLink or SATA port.
  • Pentium II 350 MHz or Greater
  • Minimum 64 MB RAM

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
