All stock codes associated to this product
, ZSNESA

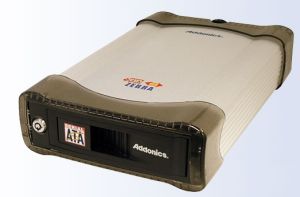

Zebra Snap-In Mobile Rack with eSATA interface
Package content: Zebra eSATA external enclosure with Snap-In SATA Mobile Rack (black bezel) installed, 100/240 AC/DC 12V power adapter (AAPAC12V-US), 3' eSATA-eSATA connecting cable, User guide
The Zebra Snap-in Mobile Rack, the Snap-In Mobile Rack installed inside the Zebra eSATA or eSATA/USB drive enclosure, is a convenient external removable hard drive system. When attached to system via USB 2.0 or a hot swappable eSATA port, hard drive of any capacity can be conveniently added or remove from the system, similar to a tape cassette. With eSATA connection, the hard drive in the Zebra Snap-in Mobile Rack can also be used as the main drive to boot your system and for running all your applications.
Product Features
- Supports any 3.5" SATA hard drives
- hot swap hard drive like tape cassette without restarting your system**
- Choice of eSATA or eSATA /USB combo interface*
- black color bezel
- Rugged steel construction for rough handling and fast cooling
- Point to point Serial ATA connection (no cable to connect hard drive to enclosure)
- Suspension mount to protect against vibration and shock
- Key lock to secure hard drive
- Compact size for convenient transportation
- Rear mount 40x40mm cooling fan
- LED for drive access and power
- Plug and play
- Stereo ear phone jack
- Bootable under DOS
- Simple installation
- OS Compatibility:
- Zebra eSATA Model: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- Zebra eSATA / USB 2.0 Combo: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
* Serial ATA hot swap feature works only with controllers basing on Silicon Image chip set from our in house testing. Other controllers that are not Silicon Image based may not support hot swap. You may consider adding one of the Addonics Serial ATA host controllers to your systems to ensure the hot swap capability. New controllers from Intel and other suppliers may finally support this feature. Please verify with your controller manufacturer if you need to have hot swap in your application. Hot swap is supported in Windows 2000 and XP only. On other OS, drive can be removed without crashing system. But replacing with a different drive can result in crashing the OS.
** Zebra Snap-In Mobile Rack with eSATA / USB 2.0 interface (ZSNESU) is only able to hot swap using the snap in key lock power switch through the USB connection. The eSATA connection will require disconnection and reconnection of the eSATA cable for the drive to be recognized or properly removed from the system.
Specifications
Supported Drive Type
|
3.5" SATA or SATA II hard drive |
| Supported Interface |
eSATA or USB |
| Bezel Color: |
black |
| Power source: |
from power adapter |
| Supported OS |
- eSATA - DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- USB - DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
|
| Dimensions: |
10.16 x 6.61 x 2.36 in. (258 x 168 x 60 mm)
|
| Weight: |
3.55lbs. (1612g) |
| Supported File Systems: |
FAT, FAT32, NTFS and HPFS |
| Warranty: |
One Year |
System Requirements
- PC/AT or Compatible System
- Pentium or greater
- Minimum 32 MB RAM
- 10 MB minimum free hard disk space
- One available eSATA or USB 2.0 port
