Zebra USIB drive enclosure with Firewire/iLink interface
Content: Zebra External Enclosure with USIB connector, Firewire/iLink USIB interface cable, 100/240 AC/DC 12V power adapter (AAPAC12V-US), User Guide, Driver CD
The new Zebra series drive enclosure may be the only external drive enclosure that you will ever need. With a wide range of optional components, the Zebra series are designed to start as a basic economical drive enclosure solution. It can then be expanded with new capabilities to accommodate different type of storage devices or interface connections as your need grows. The Zebra family of enclosures come in choices of three difference interface connection - USIB, eSATA or eSATA+USB combo. The Zebra enclosures are large enough for both 3.5" or 5 1/4" drives and are designed for simple drive installation with a easily slide open drive tray at the back. The front features a removable front panel to accomodate removable or optical storage devices.
Zebra USIB model

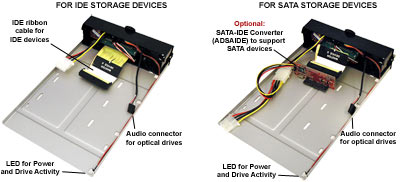

The Zebra USIB model is equipped with an IDE - USIB connector on the back panel. Practically any IDE storage device can be turned into an external storage device. With the addition of an optional SATA - IDE converter, any SATA storage device can also be installed into the Zebra USIB drive enclosure. Once the storage device is installed into the drive enclosure, it can then be connected to any computer with USB 2.0, Firewire or eSATA interface by attaching different optional Addonics USIB interface cables.
Product Features
- Choice of eSATA or USIB module
- Sturdy aluminum construction
- Compact size for convenient transportation
- Compatible with IDE hard drives, SATA or SATA II hard drive and most ATAPI devices
- Rear mount 40x40mm cooling fan
- Plug and play
- Stereo ear phone jack
- Bootable under DOS
- Simple installation
- OS Compatibility:
- Zebra USIB Model: DOS, Windows 98SE, Me, NT (eSATA cable only), 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- Zebra eSATA Model: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
- Zebra eSATA / USB 2.0 Combo: DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 10, Mac OS X 10.4.x
Specifications
|
Support drive type
|
| Zebra eSATA: |
3.5" SATA hdd, 2.5" SATA hdd (with bracket), 2.5" IDE hdd (with adapter), 3.5" IDE hdd (with converter) |
| Zebra USIB: |
3.5" IDE hdd, 2.5" IDE hdd (with adapter), 3.5" SATA hdd (with converter), 2.5" SATA hdd (with converter) |
| Zebra eSATA/USB: |
3.5" SATA hdd, 2.5" SATA hdd (with bracket), 2.5" IDE hdd (with adapter), 3.5" IDE hdd (with converter) |
|
|
Interface Type:
|
| Zebra eSATA: |
eSATA |
| Zebra USIB: |
USB 2.0/1.1, Firewire/iLink, eSATA |
| Zebra eSATA/USB: |
eSATA and USB 2.0 |
|
|
Construction material:
|
Aluminum body
|
|
LED
|
Power(Green) and Drive Activity(Red) LED
|
|
Audio jack
|
Stereo earphone jack
|
|
Supported OS
|
Windows 98SE, Me, 2000, XP, DOS, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.x
(bundled software works under Windows OS only)
|
|
Power Supply:
|
100 / 240V AC/DC 12V / 5V 34 Watts Power Adapter (AAPAC12V-US)
|
|
Cooling system:
|
Rear mount 40x40 mm cooling fan
|
|
Dimensions:
|
10.16 x 6.61 x 2.36 in.
(258 x 168 x 60 mm)
|
|
Weight:
|
| Zebra eSATA: |
2.16lbs. (979g) |
| Zebra USIB: |
2.12lbs. (963g) |
| Zebra eSATA/USB: |
2.11lbs. (955g) |
|
|
Storage Temperature:
|
Range: -30C to +60C
|
|
Operating Temperature:
|
Range: +5C to +40C
|
|
Storage Humidity:
|
5% to 90%
|
|
Operating Humidity:
|
5% to 95%
|
|
Warranty:
|
One Year
|
System Requirements
- PC/AT or Compatible System
- eSATA, USB, or Firewire port
- Pentium II or Greater
- Minimum 64 MB RAM
- One of the Following Operating System:
DOS, Windows 98SE, Me, 2000, XP, Vista, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.x
