All stock codes associated to this product
HDUSI325
Package content:
HDD Duplicator with 2x Diamond SATA Drive Cradles installed, 2x Diamond SATA Drive Enclosures (DSACSB), 1x Diamond IDE Drive Enclosure (DICSB), 2.5" to 3.5" IDE converter (AA25IDE35), 2.5" to 3.5" bracket (AASMKHD218), mounting screws for securing the hard drives inside the drive enclosure, User guide

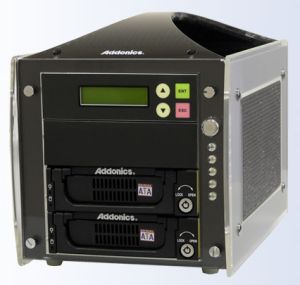

The Addonics HDD Duplicator PRO is one of the most powerful hard drive copying tools that you can find in the market. Operating stand alone without any computer or special software, any type of 2.5" or 3.5" hard drive or SSD can be duplicated onto any 2.5" or 3.5" hard drive or SSD that has either SATA or IDE interface. With the addition of an optional Diamond Cipher drive enclosure, the exact content on any hard drive or SSD can be quickly copied onto a 3.5" or 2.5" SATA drive with bullet proof AES-256 bit hardware encryption. Such flexibility makes this HDD Duplicator PRO a perfect tool for any organization that has a wide mix of hard drives in various form factors and interface and for quick transfer of OS or data onto different type of hard drives.
The HDD Duplicator PRO is also simple to use and operate. Just open the doors on the two drive bays, load your master hard drive to the drive bay on top and another hard drive of capacity equal or larger than the master drive to the bottom drive bay, turn the key lock to the lock position and push the start button to start the copying process.
Supported drive copying options
| From source |
To target |
HDUSI325
|
| 3.5 SATA HDD |
3.5" SATA HDD |
Yes
|
| 3.5" SATA HDD |
3.5" IDE HDD |
|
| 3.5" SATA HDD |
2.5" SATA HDD/SSD |
|
| 3.5" SATA HDD |
2.5" IDE HDD/SSD |
|
| 3.5" IDE HDD |
3.5" SATA HDD |
|
| 3.5" IDE HDD |
3.5" IDE HDD |
option (see note 1 below)
|
| 3.5" IDE HDD |
2.5" SATA HDD/SSD |
|
| 3.5" IDE HDD |
2.5" IDE HDD/SSD |
option (see note 1 below) |
| 2.5" SATA HDD/SSD |
3.5" SATA HDD |
|
| 2.5" SATA HDD/SSD |
3.5" IDE HDD |
|
| 2.5" SATA HDD/SSD |
2.5" SATA HDD/SSD |
|
| 2.5" SATA HDD/SSD |
2.5" IDE HDD/SSD |
|
| 2.5" IDE HDD/SSD |
3.5" SATA HDD |
|
| 2.5" IDE HDD/SSD |
3.5" IDE HDD |
option (see note 1 below) |
| 2.5" IDE HDD/SSD |
2.5" SATA HDD/SSD |
|
| 2.5" IDE HDD/SSD |
2.5" IDE HDD/SSD |
option (see note 1 below) |
| 2.5"/3.5" IDE or SATA HDD/SSD |
2.5" or 3.5" SATA hard drive/SSD with AES 256-bit encryption |
option (see note 2 below)
|
| 2.5" or 3.5" SATA hard drive/SSD with AES 256-bit encryption |
2.5"/3.5" IDE or SATA HDD/SSD |
option (see note 2 below)
|
Note:
- requires additional Diamond IDE drive enclosure (model: DICSB)
- requires additional Diamond Cipher drive enclosure (model: DCSACS256)
Product Features
- Copy any 2.5" or 3.5" hard drive / SSD to any 2.5" or 3.5" hard drive / SSD.
- OS independent
- Copy up to 1.5Gbps depending on the performance of the hard drive
- Source and Destination drives are added or removed like tape cartridges via a removable drive enclosure.
- Add AES-256 bit encyrption capability to source or target with optional Diamond Cipher drive enclosure
- LCM control module provides a rich set of robust advanced configuration options
- Operate as a stand alone appliance. No computer or software needed
Specification
- Writing mode : Sector to Sector
- Support up to 1.5Gbps transferring rate (actual transfer rate depends on the speed of the source and destination drive)
- Install drives into drive bay via removable drive enclosure
- Stylish clear acrylic exterior
- Light weight and sturdy aluminum construction
- Ventilated side panels for efficient air flow
- Ball bearing high CFM low noise cooling fans
- LCD display with functional control panel
- Integrated 220W 110/240 auto-sense power supply
- Compact size - 8.19 x 12.94 x 8 inch (W x D x H)
- Weight: 9.1 lb (4.13 kg)
- Operating environment: 0 - 50 degree C, 15% - 90% RH
- Storage environment: - 20 - 85 degree C, 0% - 95% RH non-condensing
