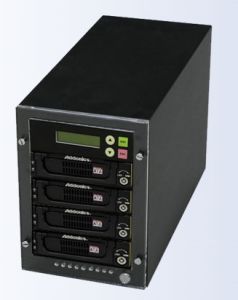

Addonics HDD Duplicator Pro - Copy 1x3.5"SATA HDD to 3x3.5"SATA HDD, LCD Display, Up to 1.5Gbps

IMG 1 of 2
No Longer Available
Part Number:
136086
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
8 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
, HDUSI3TDR

Package content:
1:3 HDD Duplicator, 4 Diamond SATA drive enclosures (model: DSACSB), 1 Diamond IDE drive enclosure (model: DICSB), 1 2.5" -3.5" IDE connector converter (model: AA25IDE35), AC power cord, User guide

The Addonics 1:3 HDD Duplicator Pro is a very flexible one to three hard drive duplicator that makes copying any 3.5" SATA or IDE hard drive to three 3.5" SATA hard drives fast and easy. Any 2.5" or 3.5" hard drive or SSDs can be placed inside the easily removable drive enclosures for used as source or target drive. With optional additional IDE drive enclosures, practically any hard drives or SDDs with IDE or SATA interface or in 2.5" and 3.5" form factor can all be mixed in the three target drive bays to be duplicated at one time. By adding an optional Diamond Cipher drive enclosure, you can easily make backup of sensitive data with bullet proof AES-256 bit encryption.

Addonics HDD duplicator operates totally stand alone. There is no computer needed or complex software to operate. All the set up are accessed via a LCM control panel on the front of the unit. Once configured, simply insert up to 3 hard drives of capacity equal or larger than the master drive into the duplicator, load the master hard drive, lock the drive door and push the start button to start the copying process.

Supported drive copying options

From source
To target (up to 3)
HDUSI3TDR
3.5 SATA HDD 3.5" SATA HDD
Yes
3.5" SATA HDD 3.5" IDE HDD (1 target only, two or more IDE targets require additional enclosures as show in note 1 below)
Yes
3.5" SATA HDD 2.5" SATA HDD/SSD
Yes
3.5" SATA HDD 2.5" IDE HDD/SSD (1 target only, two or more IDE targets require additional enclosures as show in note 1 below)
Yes
3.5" IDE HDD 3.5" SATA HDD
Yes
3.5" IDE HDD 3.5" IDE HDD
option (see note 1 below)
3.5" IDE HDD 2.5" SATA HDD/SSD
Yes
3.5" IDE HDD 2.5" IDE HDD/SSD option (see note 1 below)
2.5" SATA HDD/SSD 3.5" SATA HDD
Yes
2.5" SATA HDD/SSD 3.5" IDE HDD (1 target only, two or more IDE targets require additional enclosures as show in note 1 below)
Yes
2.5" SATA HDD/SSD 2.5" SATA HDD/SSD
Yes
2.5" SATA HDD/SSD 2.5" IDE HDD/SSD(1 target only, two or more IDE targets require additional enclosures as show in note 1 below)
Yes
2.5" IDE HDD/SSD 3.5" SATA HDD
Yes
2.5" IDE HDD/SSD 3.5" IDE HDD option (see note 1 below)
2.5" IDE HDD/SSD 2.5" SATA HDD/SSD
Yes
2.5" IDE HDD/SSD 2.5" IDE HDD/SSD
option (see note 1 and 2 below)
3.5" SATA HDD 3.5" SATA HDD with AES 256-bit hardware encryption
option (see note 3 below)
3.5" IDE HDD 3.5" SATA HDD with AES 256-bit hardware encryption
option (see note 3 below)
3.5" SATA HDD 2.5" SATA HDD/SSD with AES 256-bit hardware encryption
option (see note 3 below)
3.5" IDE HDD 2.5" SATA HDD/SSD with AES 256-bit hardware encryption
option (see note 3 below)
3.5" SATA HDD with AES 256-bit hardware encryption 3.5" SATA HDD
option (see note 3 below)
3.5" SATA HDD with AES 256-bit hardware encryption 3.5" IDE HDD
option (see note 3 below)
3.5" SATA HDD with AES 256-bit encryption 2.5" SATA HDD/SSD
option (see note 3 below)
3.5" SATA HDD with AES 256-bit hardware encryption 2.5" IDE HDD/SSD
option (see note 3 below)
2.5" SATA HDD/SDD with AES 256-bit hardware encryption 2.5" SATA HDD/SSD
option (see note 3 below)
2.5" SATA HDD/SDD with AES 256-bit hardware encryption 2.5" IDE HDD/SSD
option (see note 3 below)

Note:

  1. requires additional Diamond IDE drive enclosure (model: DISCSB) for each target drive
  2. requires 2.5" to 3.5" IDE connector converter (AA25IDE35) for each target drive
  3. requires additional Diamond Cipher drive enclosure (model: DCSACS256) for every source or target drive.
    Data copied to a target drive inside the Diamond Cipher enclosure will be encrypted with AES 256-bit security. Data in the drive will not be accessible when remove from the drive enclosure. For detail of Diamond Cipher feature, please visit Diamond Cipher overview page.
    If an non-encrypted hard drive is placed inside the Diamond Cipher drive enclosure and use as a source drive, no data will be copied as the drive will appear as a blank drive to the duplicator.



Product Features

    • Source drive - 3.5" or 2.5" SATA or IDE hard drive/SSD
    • Target drive - up to three 3.5" or 2.5" of SATA or IDE hard drive/SSD or any combination

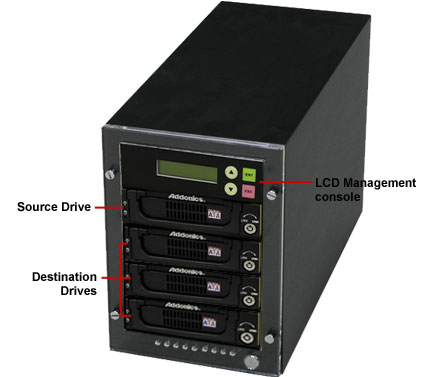

    • Source and Destination drives are added or removed like tape cartridges via drive enclosure from each drive bay. Sour drive enclosure and target drive enclosure are interchangeable.
    • Unit comes bundled with following drive enclosures:
      • 4 SATA drive enclosures - 1 for source and 3 for target
      • 1 IDE drive enclosure - can be used as source or target
    • Optional additional IDE drive enclosure, 2.5" to 3.5" IDE connector converter and Diamond Cipher drive enclosure
    • Great for cloning one to three hard drives or for making a back up hard drive.
    • OS independent
    • Copy up to 1.5 Gbps depending on the performance of the hard drive
    • Completely standalone One to Three hard drive duplicator with no additional hardware or software required.
    • LCM control module provides a rich set of robust advanced configuration options (diagram of duplicator features can be here)
    • Operate as a stand alone appliance. No computer or software needed

Specification

  • Writing mode : Sector to Sector
  • Support up to 1.5 Gbps transferring rate (actual transfer rate depends on the speed of the source and destination drive)
  • Sturdy metal frame construction
  • Removable drive enclosures for quick insertion and removal of hard drives.
  • LCD display with functional control panel
  • Well ventilated for efficient air flow.
  • Low noise high CFM ball bearing cooling fan
  • Integrated 80W 110/240 auto-sense power supply
  • Compact size - 7.5 x 16 x 10.4 inch (W x D x H)
  • Weight: 17.43lb (7.9kg)
  • Operating environment: 0 - 50 degree C, 15% - 90% RH
  • Storage environment: - 20 - 85 degree C, 0% - 95% RH non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
