All stock codes associated to this product
H1560HS2640030/10030, H1560HS264-0030/1-0030, IF19810

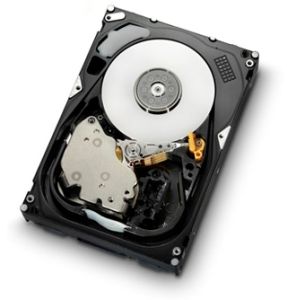

Ultrastar 15K600
300GB, 450GB & 600GB
3.5-INCH ENTERPRISE HARD DRIVE
-
Mission-Critical Performance 15,000 RPM access to data
-
High Capacity Up to 600GB of storage
-
Data Security Hardware-based encryption models
The Ultrastar 15K600 combines ultimate performance with high capacity in a single drive, storing up to 600GB of data while spinning at 15,000 RPM. That amounts to a capacity growth of 33% over its predecessor to keep pace with digital data growth and improve space efficiency in todays data centers. At the same time, sequential performance increased by 23% compared to prior generation to keep data moving faster. The 64MB cache buffer is the largest in the industry in its class. The 6Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel Arbitrated Loop (FCAL) interfaces support the reliability required in the most demanding enterprise computing environments like on-line transaction processing, intensive data analysis, multi-user applications and data warehousing.
Highlights
600GB capacity will store most everything
Spinning at 15,000 RPM for mission-critical performance
FCAL & SAS interfaces for reliable data throughput
Advanced Power Management optimizes power consumption
64MB cache buffer largest in the industry
Self-encrypting models conform to TCGs Enterprise specification
Applications / Environments
Business & online transaction processing
Internet, file sharing and email
Decision support & RAID
NAS, SAN and enterprise-class servers
High performance computing and other applications requiring 24x7
availability
| Model(s) |
HUS156060VLS600
HUS156060VLS601
HUS156060VLF400
HUS156060VLF401
|
HUS156045VLS600
HUS156045VLS601
HUS156045VLF400
HUS156045VLF401
|
HUS156030VLS600
HUS156030VLS601
HUS156030VLF400
HUS156030VLF401
|
| Interface |
6Gb/s SAS / 4Gb/s FCAL |
 |
|
| Capacity (GB) |
600 |
450 |
300 |
| Data Heads (physical) |
8 |
6 |
4 |
| Performance |
| Data buffer (MB) |
64 |
|
|
| Rotational Speed (RPM) |
15000 |
|
|
| Latency Average (ms) |
2 |
|
|
| Interface transfer rate (MB/sec, max) |
600 / 400 |
|
|
| Sustained transfer rate (MB/sec, typ.) |
198 to 119 |
|
|
| Seek Time (read, ms, typical) |
3.4 |
|
|
| Reliability |
| Error Rate (non-recoverable, bits read) |
1 in 10^16 |
|
|
| MTBF (M hours) |
1.6 |
|
|
| Availability (hrs/day x days/wk) |
24x7 |
|
|
| Acoustics |
| Idle (Bels) |
3.7 |
|
|
| Power |
| Requirement |
+5 VDC (+/5%)
+12 VDC (+/5%) |
|
|
| Operating (W, typical) |
16.6 |
14.4 |
13.2 |
| Unload idle (W) |
10.7 |
9.2 |
7.7 |
| Physical size |
| Z-height (mm) |
25.8 |
|
|
| Dimensions (width x depth, mm) |
101.6 x 146.2 |
|
|
| Weight (g, max) |
750 |
|
|
| Environmental (operating) |
| Ambient temperature |
5 to 55C |
|
|
| Shock (half-sine wave) |
30G (2ms) |
|
|
| Vibration |
1.5Gm all axes |
|
|
| Environmental (non-operating) |
| Ambient temperature |
-40 to 70C |
|
|
| Shock (half-sine wave) |
250G (2ms) |
|
|
| Vibration |
2.0G, all axes |
|
|
Capacity GB - One GB is equal to one billion bytes when referring to hard drive
capacity. Accessible capacity may be less.
Data Buffer MB - Portion of buffer capacity used for drive firmware
Seek Time - Excludes command overhead
MTBF - MTBF target is based on a sample population and is estimated by statistical measurements and acceleration algorithms under median operating conditions. MTBF ratings are not intended to predict an individual drives reliability. MTBF does not constitute a warranty.
