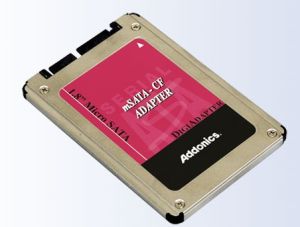

Addonics 1.8" Micro SATA to CompactFlash Adapter/Enclosure

IMG 1 of 2
No Longer Available
Part Number:
144825
(?) Brand:
Addonics Web Site
Manuf No:
ADMSCF18
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ADMSCF18

1.8" Micro SATA to Compact Flash Adapter
Content: 1.8" Micro SATA to Compact Flash Adapter, small screwdriver, replacement screw, User Manual

Adding to the Addonics family of CF adapters, the Micro SATA CF adapter enables using of Compact Flash (CF) media as a direct replacement for the Micro SATA hard drive in the iPOD or the sub-Notebooks. Once installed, the CF media behaves like the Micro SATA SSD with low power consumption, fast access time and completely shock resistant.




Key Features

  • Enables Compact Flash (CFI/II) to be used like an ordinary 1.8" Micro SATA hard drive

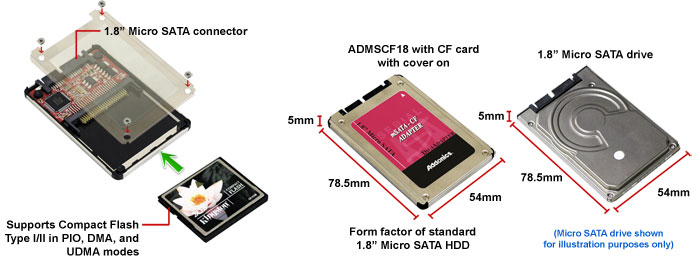

  • Designed with the same dimension and connector location of the 1.8" Micro SATA hard drive
  • CF Card can be used as the primary bootable device containing the OS and applications.
  • Transparent to the operating system and does not require any software drivers
  • Supports any capacity of Compact Flash
  • Support PIO, DMA, and UDMA mode
  • Compatible with DOS, Windows 3.1, NT4, 98SE, Me, 2000, XP, Vista, Windows 7, Mac, Linux

Specifications

  • SATA II 3.0Gbps adapter
  • 13-pin Micro SATA (signals and power) male connector on board
  • Supports Compact Flash (Type I and Type II) or an IBM Micro drive
  • Bootable
  • Supports any capacity Compact Flash up to 2TB
  • Compliant with Serial ATA 2.6
  • Tag Command Queuing (Max 32 entries)
  • Hot swappable
  • SATA Power Save modes
  • ATA/ATAPI PIO mode data transfer
  • ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
  • ATA/ATAPI-7 Streaming feature set
  • Support DMA and UDMA mode
  • 100% OS-transparent hardware bridge adapter to support PC, MAC and Linux, no driver required
  • Dimensions: (W x L x H) - 54 x 78.5 x 5 mm
  • Weight: 11g (.4oz)
  • Power: +5V from PC power supply
  • Onboard regulator for both 3.3V and 5V support
  • Operating Temperature: 0 C to + 75 C
  • Operating Humidity: 5% - 95% (non condensing)
  • Storage Temperature: -40 C to + 85 C
  • Storage Humidity: 5% - 95%
  • Warranty: One Year
  • RoHS compliant


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
