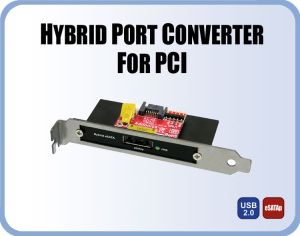

Addonics 1-Port Hybrid eSATA/USB Converter Bracket - 5V, To Suit PCI/SCSI-1 Slot

IMG 1 of 1
No Longer Available
Part Number:
144840
(?) Brand:
Addonics Web Site
Manuf No:
AAESPSPCI
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
AAESPSPCI

eSATAp to SATA/USB
Converter with SCSI-1 bracket

 PCI bracket
Pair of Saturn Cipher key 64-bit
model:
PCISCBKT 		Floppy Y-power
cable
Pair of Saturn Cipher key 64-bit
model:
AA4PYFFCBL		 18" internal Serial ATA cable

model:
AASAIDC18I
 3 feet USB female 5-pin header cable

model:
AA5PUSBCL-3F
User Guide

This Addonics Hybrid Port converter instantly adds to any Desktop system an eSATA USB Hybrid Port (EUHP), the same Hybrid port commonly found on many new generations of Notebook computers. The Addonics Hybrid Port converter can be easily added via a PCI slot or the 3.5" drive bay. Once the USB, SATA and floppy power connectors on Hybrid Port are connected, the installation is complete.

The new Hybrid port support connection of eSATA or USB device to the system. In addition, low power eSATA device can now be power directly from the Hybrid port using the Addonics eSATAp cable. To learn more about the Hybrid port, visit our EUHP tutorial page.


Illustration of Hybrid Port Converter module


MODEL AAESPSPCI
INSTALLATION
EXAMPLE		 Hybrid Port converter installed onto PCI slot of Desktop system
PRODUCT
Hybrid Por converter on PCI bracket



Product Features

  • Add Hybrid port to Desktop system or computing equipment by combining the internal SATA and USB 5-pin connector into a single Hybrid eSATA / USB connector.
  • Add Hybrid port to external storage enclosure via SCSI-1 (centronic 50) connecctor punch out
  • Choice of model
    • with standard 3.5" drive bay mounting bracket
    • with PCI and SCSI-1 mounting brackets
  • Support 5V BUS power over eSATA connection using Addonics eSATAp cable or standard Hybrid eSATA cable
  • Compatible with Addonics eSATAp CFast reader / writer
  • Supports hot swapping of eSATA device when attached to a SATA port that supports this feature
  • Supports hot swapping of USB device
  • Built-in power LED
  • OS Independent, no software driver to install

Specifications

  • Hybrid eSATA / USB connector
  • SATA I, II, III compliant
  • Supports USB 2.0 (Data Rate 1.5 /12 /480 Mbps)
  • OS Independent, no software driver required
  • Weight: 8g (.3 oz)
  • Dimensions: 16mm(W) x 14mm(D) x 21mm(H)
  • RoHS Compliant
  • 1 year warranty


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
