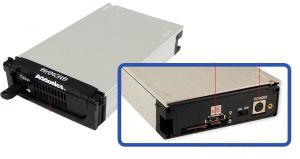

Addonics Cipher ExDrive HDD Enclosure - Black/Grey
  • 1x 3.5" SATA HDD, Aluminium, 256-bit AES Hardware Encryption, USB3.0/2.0, eSATA

IMG 1 of 1
No Longer Available
Part Number:
150335
(?) Brand:
Addonics Web Site
Manuf No:
DCED256EU3
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DCED256EU3
Diamond Cipher
Drive Enclosure

DCSACS256
 Diamond 256-bit Cipher key
Pair of Saturn Cipher key 64-bit
AAENKEY256-2
(256-bit version)
power adapter

AAPAC12V
eSATA - eSATA data cable 6 ft. click for large image
AAESATA200C
USB 3.0 to eSATAp Adapter
click for large image
ADU3ESA

Dimond Cipher

DCED256EU3

The Diamond Cipher ExDrive Kit features the new generation of eSATA hard drive enclosures with the 256-bit AES hard encryption to ensure absolute data security should the drive get stolen or lost. The crypto engine inside the Diamond Cipher enclosure handles all the encryption and decryption on the fly with no detectable performance degradation on data transfer. Using native eSATA interface, the Diamond Cipher ExDrive supports the highest performance possible today through an externally connected hard drive enclosure.
Designed for accommodating any standard 3.5" SATA / SATA II hard drive, the Diamond Cipher ExDrive provides data transfer speeds approximately three times the maximum throughput of traditional drive enclosures utilizing the standard USB or Firewire interfaces. When connected via eSATA interface, drives contained inside the durable and heat resistant Diamond enclosures are even capable of booting Operating Systems through a compatible eSATA port on a motherboard or add-in card. With the optional 2.5" hard drive mounting bracket, any 2.5" SATA hard drive can also be installed into the Diamond Cipher drive enclosure.
The Diamond Cipher ExDrive Kit is the ideal external drive solution for large capacity data storage and security requirements. When connected to Host Controllers with RAID capability, multiple Diamond Cipher ExDrive can be implemented with fault-tolerance and increased data throughput RAID configurations which can be easily relocated as external devices. With size slightly larger than a VCR cassette, the Diamond Cipher drive enclosure comes with Addonics SATA direct interface design that provides an eSATA connector for high speed eSATA interface, as well as an additional SATA connector on the back. This SATA connector allows the Diamond drive enclosure to be used as a removable cartridge via an optional Diamond drive cradle installed inside the 5 1/4" drive bay of any computer.
Features

Encryption features (for Diamond Cipher only)
  • Full disk encryption via a hardware-based NIST & CSE certified cryptographic AES engine
  • High performance - Data is encrypted and decrypted on the fly by a certified cryptographic engine inside an ASIC without taking any CPU resources
  • Encryption / Decryption via a hardware key , just like using a regular key to open a door.
    To enable the encryption and access the drive, simply insert the Cipher key into the keyhole of the Diamond Cipher enclosure prior to turn on the power.
  • Simple to deploy with no training required, no software to install and no password to remember
  • Platform independency - There is no software or driver to install to use Addonics encryption products. As a result, it can be deployed in any systems running any OS. This is important in organization with multi platform computing and legacy systems.

Drive enclosures features

  • Connect to computer via eSATA port
  • Support large hard drive beyond 137G with single partition
  • Can be used as a boot drive via eSATA connection
  • Optional USB 2.0 to eSATA Adapter to connect through USB 2.0 connection
  • Optional USB 3.0 to eSATAp adapter for USB 3.0 connection.
  • Used as an internal hot-swap removable hard drive in a 5 1/4" drive bay with optional Diamond Drive Cradles.
  • No interface cabling between drive and enclosure for reliable connection.
  • No switch to set between internal and external hard drive application
  • Compact size for easy transportation - slightly larger than a VCR cassette
  • Sturdy aluminum body for use in rough environments
  • Well ventilated design, good heat conduction without fan for quiet operation
  • LED for both power, drive access and Cipher key activation
  • Simple hard drive installation
  • Optional 2.5"/1.8" converter kit
  • OS support
    • eSATA - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Windows 7, Windows 7, Mac, Linux and Solaris
    • USB - Windows 98SE, Me, 2000, XP, Vista, Windows 7, Windows 7, Mac, Linux and solaris

Diamond Cipher AES 256-bit ExDrive for SATA or SATA II or SATA III hard drive with eSATA and USB 3.0 / 2.0 interface NEW

Specifications

Encrpytion type 256-bit AES hardware encryption via a hardware-based NIST & CSE certified cryptographic AES engine
Supported Drive Type
 3.5" SATA 1.5Gbps or 3.0Gbps
Supported Interface for Drive Cradle
  • SATA
  • IDE, USB, or SCSI (with optional converter boards)
Supported interface for Drive Enclosure

eSATA for external connection and SATA for internal connection via Diamond drive cradle

USB with optional eSATA - USB adapter (AAU2ESA)

Support large hard drive (over 137G) : Yes
Power source Internal Drive Cartridge System or Mobile Rack - from PC power supply
Drive Enclosure or External Drive Cartridge System - from 110/220 power adapter
Cooling fan Optional for drive enclosure
LED indicators

For power and drive access on drive enclosure and drive cradle
For Cipher key activation on drive enclosure

Material construction Aluminum
Supported OS
  • USB 2.0 - DOS, Windows 2000, XP, 2003, Vista, Windows 7, Windows 7, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
  • SATA - DOS, Windows NT4(SP6), 98SE, Me, 2000, XP, 2003, Vista, Windows 7, Windows 7, Mac OS X, Linux Kernel 2.4 and above or any OS that supports SATA hard drive
Dimensions

Drive enclosure: 8.19 x 4.57 x 1.46 in. (208 x 116 x 37 mm.)
Drive Cradle: 8.93 x 5.75 x 1.61 in. (227 x 146 x 41 mm.)
Weight 13.6 oz (enclosure without hard drive)
15.2 oz (drive cradle)
File Systems FAT, FAT32, NTFS and HPFS
Operating temperature: 0 C to +50 C
Operating humidity 5% to 90%
Storage temperature -40 C to +85 C
Storage humidity 5% to 95% (non condensing)
Warranty: One Year
RoHS compliant Yes



System Requirements

  • PC/AT or Compatible System
  • One available 5 1/4" drive bay or one of the following ports: SATA, eSATA, USB 2.0 and USB 1.1
  • Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
  • One of the following operating systems: DOS, Windows NT(SP6), Windows 98SE / 2000, 2003, Me, XP, Vista, Windows 7, Windows 7, Mac OS, Linux, Solaris
