All stock codes associated to this product
J9311A, 1151357, 829160319605

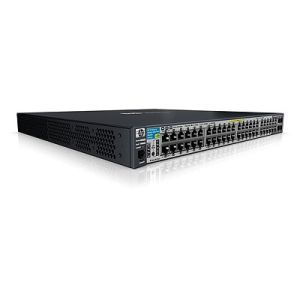

HP E3500-48G-PoE+ yl Switch
Description
The HP E3500 Switch Series consists of the most advanced intelligent edge switches in the HP Networking product line. The E3500 series includes 24-port and 48-port fixed-port switches. The foundation for all these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of Gigabit and 10/100 interfaces; integrated PoE+, PoE, and non-PoE options; and versatile 10-GbE connectivity (CX4, X2, and SFP+) on Gigabit switches, the E3500 switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.
Remote Intelligent Mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP E8200 zl, E6600, E6200 yl, E5400 zl, or E3500 switch anywhere on the network. RMON, XRMON, and sFlow v5: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events. IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automated device discovery protocol provides easy mapping by network management applications. Uni-Directional Link Detection (UDLD): monitors cable between two switches and shuts down the ports on both ends if
IPv6: IPv6 host: enables switches to be managed and deployed at the IPv6 network's edge. Dual stack (IPv4 and IPv6): transitions from IPv4 to IPv6, supporting connectivity for both protocols . MLD snooping: forwards IPv6 multicast traffic to the appropriate interface. IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic, preventing traffic flooding. IPv6 routing: supports static and OSPFv3 (requires Premium License) routing protocols. IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access po
High-speed/capacity architecture: up to 153.6 Gbps crossbar switching fabric provides intra- and inter-module switching with up to 111.5 million pps throughput on the purpose-built ProVision ASICs. Selectable queue configurations: increase performance by selecting the number of queues and associated memory buffering that best meet the requirements of your network applications.
Virtual Router Redundancy Protocol (requires Premium License): allows groups of two routers to dynamically back each other up to create highly available routed environments. IEEE 802.1s Multiple Spanning Tree Protocol: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; encompasses IEEE 802.1D Spanning Tree Protocol and IEEE 802.1w Rapid Spanning Tree Protocol. Server-to-switch distributed trunking: allows a server to connect to two switches with one logical trunk that consists of multiple physical connections; enables load-balancing and increases
Interfaces/Ports
| Number of Ports |
48 |
| Gigabit Ethernet Port |
Yes |
| Interfaces/Ports |
44 x RJ-45 10/100/1000Base-T Network LAN
4 x RJ-45 10/100/1000Base-T PoE
1 x RJ-45 RS-232C Console Management |
|
Media & Performance
| Forwarding/Filtering Rate |
111.5 Mpps |
| Switching Fabric |
153.60 Mbps |
| Switching Throughput |
149.80 Gbps |
|
I/O Expansions
| Number of Expansion Slots |
5 |
| Expansion Slots |
(4 Total) SFP (mini-GBIC) Shared
(1 Total) Expansion Slot |
|
Network & Communication
Management & Protocols
| Manageable |
Yes |
| Management |
HP ProCurve Manager Plus
IEEE 802.1p QoS
IEEE 802.1Q VLAN
CLI
Web Based Management
RMON
DHCP
SNMP v1, v2c,v3
Telnet
|
|
Memory
| Standard Memory |
256 MB |
| Memory Technology |
DDR SDRAM |
| Flash Memory |
4 MB |
|
Power Description
| Power Over Ethernet |
Yes |
| Input Voltage |
110 V AC
220 V AC |
| Input Voltage Range |
100 V AC to 240 V AC |
| Power Source |
Power Supply |
| Redundant Power Supply |
Yes |
|
Physical Characteristics
| Compatible Rack Unit |
1U |
| Form Factor |
Rack-mountable |
| Dimensions |
1.73" Height x 17.44" Width x 17" Depth |
| Weight (Approximate) |
15.54 lb |
|
Warranty
| Standard Warranty |
Lifetime |
|
