Secure, Reliable, Intelligent Managed Switching for Your Small Business
Highlights
Connects up to eight network devices - PCs, printers, and wireless access points - to share and transfer files and videos across your network
Simplified, web-based management for easy installation and configuration
Security down to the switch port level keeps unauthorized users off the network
Intelligent QoS helps ensure a consistent network experience and supports networked applications including voice, video, and data storage

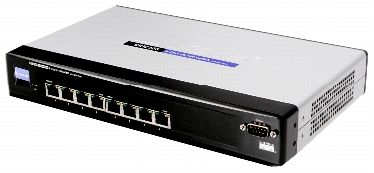

Figure 1. Cisco SRW208 8-Port 10/100 Ethernet Switch: WebView
Product Overview
Growing businesses require cost-effective networking solutions that can scale with ever-changing business needs. The Cisco SRW208 8-Port 10/100 Ethernet Switch with WebView (Figure 1) brings a whole new level of intelligence and security to the network infrastructure. The combination of its intelligence and small size make it ideal for a conference room or training room where security and uptime are important.
Network security is a top priority in any size business. Most business data networks, large and small, are unsecured. Unauthorized access to the network and mission-critical data is a constant concern. The Cisco SRW208 is able to secure the network through 802.1X port authentication and MAC-based filtering. The 802.1X standard requires clients to authenticate themselves before the port will pass data for them.
Businesses are recognizing the benefits of voice over IP (VoIP) and are quickly migrating their voice services to IP-based platforms, requiring their local area networks to support both voice and data applications. In unmanaged IP networks, bursty data sessions can disrupt voice packet delivery, causing poor voice quality. With the enhanced quality of service (QoS) and traffic management features in the Cisco SRW208, voice data can be prioritized, ensuring clear and reliable voice communications.
Enabling the advanced features of the Cisco SRW208 further secures the integrity of your network. The WebView interface provides an intuitive, secure management interface, enabling you to better utilize the comprehensive feature set of the switch, for a better-optimized, more secure network.
Features
Eight 10/100 switched RJ-45 ports deliver up to 200 Mbps of throughput per port
1.6-Gbps nonblocking, store-and-forward switching mechanism
Simplified QoS management enabled by advanced queuing techniques using 802.1p, Differentiated Services (DiffServ), or type of service (ToS) traffic prioritization specifications
Configuration and monitoring from a standard web browser with WebView management
Secure remote management of the switch via Secure Shell (SSH) and SSL secure channel network protocols
802.1Q-based VLANs enable segmentation of networks for improved performance and security
Automatic configuration of VLANs across multiple switches through Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
Automatic medium dependent interface (MDI) and MDI crossover (MDI-X) detection
User/network port-level security via 802.1X authentication and MAC-based filtering
Increased bandwidth (up to 8x) and link redundancy with Link Aggregation Control Protocol (LACP)
Enhanced rate-limiting capabilities and storm control, including multicast, broadcast, and flood control
Port mirroring for noninvasive monitoring of switch traffic
Jumbo frame support - up to 1632 bytes
Simple Network Management Protocol (SNMP) versions 1, 2c, and 3
Fully rack-mountable using the included rack-mounting hardware
Specifications
Table 1 contains the specifications, package contents, and minimum requirements for the Cisco SRW208 8-Port 10/100 Ethernet Switch.
Table 1. Specifications for the Cisco SRW208 8-Port 10/100 Ethernet Switch: WebView
|
Specifications
|
|
Ports
|
8 RJ-45 connectors for 10BASE-T and 100BASE-TX
Console port
Auto MDI/MDI-X
Auto negotiate/manual setting
|
|
Cabling type
|
Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX
|
|
LEDs
|
10/100 Link/Act, Speed, System
|
|
Performance
|
|
Switching capacity
|
1.6 Gbps, nonblocking
|
|
Forwarding rate
|
1.19 mpps wire-speed performance
|
|
Layer 2
|
|
MAC table size
|
8000
|
|
Number of VLANs
|
256 active VLANs (4096 range)
|
|
VLAN
|
Port-based and 802.1Q tag-based VLANs
Management VLAN
|
|
Head-of-line (HOL) blocking
|
HOL blocking prevention
|
|
Management
|
|
Web user interface
|
Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
|
|
SNMP
|
SNMP versions 1, 2c, and 3 with support for traps.
|
|
SNMP MIBs
|
RFC1213 MIB-2
RFC2863 interface MIB
RFC2665 Ether-like MIB
RFC1493 bridge MIB
RFC2674 extended bridge MIB (P-bridge, Q-bridge)
RFC2819 RMON MIB (groups 1, 2, 3, and 9 only),
RFC2737 Entity MIB
RFC 2618 RADIUS client MIB
RFC 1215 traps
|
|
RMON
|
Embedded Remote Monitoring (RMON) software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis.
|
|
Firmware upgrade
|
Web browser upgrade (HTTP) and Trivial File Transfer Protocol (TFTP)
|
|
Port mirroring
|
Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe.
|
|
Other management
|
Traceroute
SSL
SSH
RADIUS
Port mirroring
TFTP upgrade
SSL security for web user interface
DHCP client
BOOTP
Simple Network Time Protocol (SNTP)
Xmodem upgrade
Cable diagnostics
Ping
Telnet client (SSH secure support)
|
|
Security
|
|
IEEE 802.1X
|
802.1X - RADIUS authentication; MD5 encryption
|
|
Access control
|
Access control lists (ACLs) - drop or rate limit based on:
Source and destination MAC-based
Source and destination IP address
Protocol
ToS/DSCP
Port
VLAN
Ethertype
|
|
Availability
|
|
Link aggregation
|
Link aggregation using IEEE 802.3ad LACP
Up to 8 ports in up to 8 groups
|
|
Storm control
|
Broadcast, multicast, and unknown unicast
|
|
Spanning Tree
|
IEEE 802.1D Spanning Tree, IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
|
|
IGMP snooping
|
Internet Group Management Protocol (IGMP) (v1/v2) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors. Support 256 multicast groups.
|
|
QoS
|
|
Priority levels
|
4 hardware queues
|
|
Scheduling
|
Priority queuing and weighted round-robin (WRR)
|
|
Class of service
|
Port based
802.1p VLAN priority based
IPv4/v6 IP precedence/ToS/DSCP based
TCP/ User Datagram Protocol (UDP) port based
DiffServ
Classification and re-marking ACLs
|
|
Rate limiting
|
Ingress policer
Egress rate control
|
|
Standards
|
802.3 10BASE-T Ethernet
802.3u 100BASE-TX Fast Ethernet
802.3ab
802.3x flow control
802.3ad LACP
802.1D Spanning Tree Protocol (STP)
802.1Q/p VLAN
802.1w Rapid STP
802.1s Multiple STP
802.1X port access authentication
|
|
Environmental
|
|
Dimensions
W x H x D
|
11 x 1.75 x 6.69 in.
(279 x 45 x 170 mm)
|
|
Unit weight
|
2.20 lb (1 kg)
|
|
Power
|
External AC power adapter
|
|
Certification
|
FCC Part 15 Class A, CE Class A, UL, cUL, CE mark, CB
|
|
Operating temperature
|
32 to 104F (0 to 40C)
|
|
Storage temperature
|
-4 to 158F (-20 to 70C)
|
|
Operating humidity
|
10% to 90%
|
|
Storage humidity
|
10% to 95%
|
|
Package Contents
|
|
Cisco SRW208 8-Port 10/100 Ethernet Switch
AC power adapter with power cord
Two rack-mounting kits/eight screws
CD with user guide in PDF Format
Online registration card
Console cable
|
|
Minimum Requirements
|
|
Web-based utility: Microsoft Internet Explorer (version 5.5 or later)
Category 5 Ethernet network cables
Operating system: Windows 2000, XP, or later
|
|
Product Warranty
|
|
5-year limited hardware warranty with return to factory replacement and 90-day limited software warranty
|
