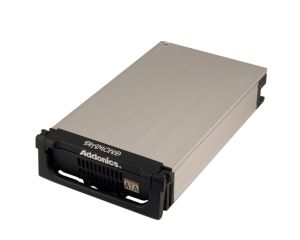

Addonics DIEDEU3 HDD Enclosure - Grey/Black
  • 3.5" IDE HDD, Aluminium, USB3.0/2.0, eSATA

IMG 1 of 1
No Longer Available
Part Number:
159885
(?) Brand:
Addonics Web Site
Manuf No:
DIEDEU3
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DIEDEU3
DIEDEU3

Diamond IDE hdd Enclosure, eSATA/USB 3.0 / 2.0 interface



The Diamond ExDrive Kit features the new generation of eSATA hard drive enclosures using native eSATA interface for the highest performance possible today through an externally connected hard drive enclosure. Designed for accommodating any standard 3.5" SATA / SATAII or IDE hard drive, the Diamond ExDrive, that can connect to computers via high speed eSATA or USB 3.0, provides data transfer speeds almost four times the maximum throughput of traditional drive enclosures. When connected via eSATA interface, drives contained inside the durable and heat resistant Diamond enclosures are even capable of booting Operating Systems through a compatible eSATA port on a motherboard or add-in card. The drive enclosure is also designed to accomodate any 3.5" or 2.5" hard drive.

The Diamond ExDrive Kit is the ideal external drive solution for large capacity data storage requirements. With size slightly larger than a VCR cassette, the Diamond drive enclosure comes with Addonics SATA direct interface design that provides an eSATA connector for high speed eSATA connection, as well as an additional SATA connector on the back. This SATA connector allows the Diamond drive enclosure to be used as a removable cartridge via an optional Diamond drive cradle installed inside the 5 1/4" drive bay of any computer.

Product Features

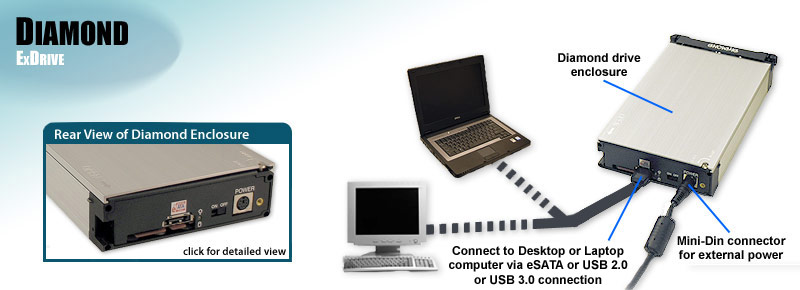

  • Connect to computer via eSATA port
  • Optional USB 3.0 to eSATAp adapter for connecting to computer via USB 3.0 or USB 2.0 port
  • Choice of SATA / SATAII or IDE hard drive enclosures
  • Black color bezel
  • Support large hard drive beyond 137G with single partition
  • Can be used as a boot drive via eSATA connection
  • Used as an internal hot-swap removable hard drive in a 5 1/4" drive bay with optional Diamond Drive Cradles.
  • No interface cabling between drive and enclosure for reliable connection.
  • No switch to set between internal and external hard drive application
  • Compact size for easy transportation - slightly larger than a VCR cassette
  • Sturdy aluminum body for use in rough environments
  • Well ventilated design, good heat conduction without fan for quiet operation
  • LED for both power and drive access
  • Simple hard drive installation
  • Optional 2.5"/1.8" converter kit
  • OS support
    • eSATA - DOS, Windows 95, NT(SP6), 98SE, Me, 2000, XP, Vista, Windows 7, Mac, Linux and Solaris
    • USB - Windows 98SE, Me, 2000, XP, Vista, Windows 7, Mac, Linux and solaris

Diamond ExDrive for IDE hard drive with eSATA and USB 2.0 interface

Diamond Drive Enclosure

DICSB
power adapter

AAPAC12V
eSATA - eSATA data cable 6 ft. click for large image
AAESATA200C
USB 3.0 / 2.0 to eSATA Adapter
click for large image
AAU2ESA


Supported Drive Type
 3.5" SATA 1.5Gbps or 3.0Gbps or IDE hard drive
Supported Interface for Drive Cradle

SATA (IDE, USB, or SCSI with optional converter boards)

Supported interface for Drive Enclosure eSATA (USB with optional adapter) for external connection and SATA for internal connection via Diamond drive cradle
Support large hard drive (over 137G) : Yes
Power source Internal Drive Cartridge System - from PC power supply
External Drive Cartridge System - from 110/220 power adapter
Cooling fan Optional for drive enclosure
LED indicators For power and drive access on drive enclosure and drive cradle
Material construction Aluminum
Supported OS
  • USB 2.0 - DOS, Windows 2000, XP, 2003, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
  • SATA - DOS, Windows NT4(SP6), 98SE, Me, 2000, XP, 2003, Mac OS X, Linux Kernel 2.4 and above
Dimensions

Drive enclosure: 8.19 x 4.57 x 1.46 in. (208 x 116 x 37 mm.)
Drive Cradle: 8.93 x 5.75 x 1.61 in. (227 x 146 x 41 mm.)
Weight 13.6 oz (enclosure without hard drive)
15.2 oz (drive cradle)
File Systems FAT, FAT32, NTFS and HPFS
Operating temperature: 0 C to +70 C
Operating humidity 5% to 90%
Storage temperature -40 C to +85 C
Storage humidity 5% to 95% (non condensing)
Warranty: One Year
RoHS compliant Yes





System Requirements

  • PC/AT or Compatible System
  • One available 5 1/4" drive bay or one of the following ports: SATA, eSATA, USB 2.0 and USB 1.1
  • Pentium or greater
  • Minimum 32 MB RAM
  • 10 MB minimum free hard disk space
  • One of the following operating systems: DOS, Windows NT(SP6), Windows 98SE / 2000, 2003, Me, XP, Vista, Windows 7, Mac OS, Linux, Solaris

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Addonics) web site.
