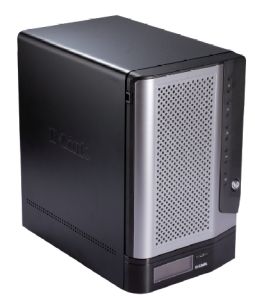

ShareCenter Pro 1200
Small and medium businesses face an everincreasing
need for data consolidation and document
sharing. The D-Link DNS-1200-05 ShareCenter Pro
1200 NAS addresses these growing data storage
requirements, and provides a multitude of additional
options for managing and securing important files.
NAS File Server
SMBs will appreciate the NAS file server which
takes full advantage of the accelerated performance
provided by iSCSI. The web file manager provides
access to files stored on the NAS to users with the
appropriate credentials.
A Variety of Backup Options
The DNS-1200-05 offers several backup options
which allow administrators and users to control how,
when, and where their data is stored. Share files
across the network or over the Internet via FTP or
access them via the easy-to-use web file manager.
A PC client gives users a straightforward means of
copying their data to the server.
iSCSI for IP Networks
iSCSI offers exceptionally fast access performance
thanks to block-level data transfer. iSCSI targets
appear as a local drive on a client PC. Operations
such as configuration, provisioning, and backup can
be handled by the administrator in the same way they
would be for directly attached storage. By utilizing
existing Ethernet technology, the cost associated
with separate host bus adapters and the per-Gigabyte
cost for storage can be significantly reduced.
Advanced Security
Account management features include the ability to
manage users/groups and Read/Write permissions.
Create users, groups, and iSCSI targets with
password authentication. Additionally, VLAN tag
support combined with AES encryption keeps files
secure. iSCSI implements a Challenge-Handshake
Authentication Protocol (CHAP) to guarantee secure
access to the storage system.
Share Printers and USB Storage
USB connectivity provides the option to establish
a printer server, monitor a UPS, or connect USB
devices such as hard drives and flash storage.
RAID for Efficiency and Redundancy
The DNS-1200-05 features 5 Serial ATA (SATA) disk
drive bays supporting 2 TB hard drives in RAID level
0, 1, 5, 5+Spare, 6 or JBOD configurations. Admins
can quickly deploy a network storage solution
using inexpensive SATA disk drives, and depending
on storage needs, can add more drives as they go.
Additionally, S.M.A.R.T. disk diagnostics help to
ensure data integrity.
Green Features Save Energy
Green Ethernet provides significant energy-savings
by reducing power according to cable length or
cutting power to unused ports.
Small and medium businesses looking for a central
storage location for sharing or backing up data will
appreciate the powerful features provided by the
DNS-1200-05 (ShareCenter Pro 1200).
Technical Specifications
Networking
..IEEE 802.3
..IEEE 802.3ab
..IEEE 802.3u
..TCP/IP
..CIFS/SMB
..iSCSI
..DDNS
..NTP
..FTP / FXP w/ TLS/SSL
..NFS
..DFS
..HTTP/HTTPS
..Jumbo Frames
..SNMP
..SMTP
Supported Hard Drive Type
..SATA – Any Capacity
..3.5” Internal
Ports
..2 x 10/100/1000 Gigabit Ethernet Port
..2 x USB Port
..Power
Display
..128 x 32 OLED Display Screen
Drive Management
..Multiple Hard Drive Configurations: RAID
0/1/10/5/5+spare/6, JBOD, Standard
..SMART/Scandisk
..User/Folder Quota management
Device Management
..IE7, Chrome, Firefox
..Easy Search Utility
..UPS Monitoring
..E-Mail Alerts
..Power Management
..USB hard disk
File Sharing
..Max. User Account: 4096 (Samba) / 10000 (ADS)
..Max. Group: 512 (Samba) / 10000 (ADS)
..Max. Shared Folder: 1000
Multi-language File Name Support
..Samba: Unicode
..FTP Client: Unicode, Croatian, Cyrillic (Kyrgyz
Republic), Czech, Danish, Dutch, English, Finnish,
French, German, Greek, Hungarian, Italian, Korean,
Norwegian, Polish, Portuguese, Romanian, Russian,
Simplified Chinese, Slovenian, Spanish, Swedish,
Traditional Chinese, Turkish
Power Supply
..Internal supply
..200 W
..100 to 240 V AC (auto-switching) / 50 to 60 Hz
..With PFC (power factor correction) function
Power Consumption
..Normal mode: 55 W
..Sleep mode: 25.2 W
Temperature
..Operating: 0 to 40 °C (32 to 104 °F)
..Storage: -20 to 70 °C (-4 to 158 °F)
Operating Humidity
..5% ~ 90% (Non-condensing)
Dimensions (L x W x H)
..273 x 167 x 260 mm
(10.7 x 6.6 x 10.2 inches)
Weight
..5.97 kgs (13.13 lbs)
Certifications
..FCC
..CE
