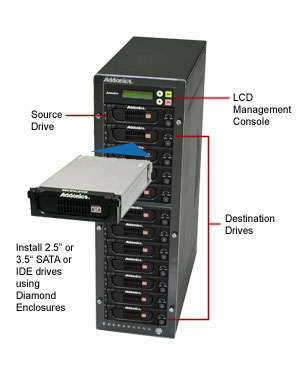

HDUS11325DX | Addonics HDD Duplicator Deluxe - Copy 1x3.5"SATA HDD to 11x3.5"SATA

The latest Addonics 1:11 HDD (Hard Disk Drive) Duplicator can copy as many as 11 target drives from a single source, making this the ideal solution for production or data distribution applications. Addonics 1:11 HDD duplicator operates totally as a stand alone. There is no computer needed or complex software to operate. Set up is accessed via a LCM control panel on the front of the unit. Once configured, simply insert up to 11 hard drives of equal or larger capacity than the master drive into the duplicator, load the master hard drive, lock the drive door and push the start button to start the copying process.

Coming in a choice of two models: the Deluxe and the PRO, the Deluxe model allows you to duplicate any 3.5" or 2.5" SATA hard drive. Drives are loaded directly into the duplicator with no special tools required. The source or target drive can be either 3.5" or 2.5" SATA drive or SSD.

The PRO model has the added flexibility of copying any 3.5" or 2.5" SATA or IDE hard drive to eleven 3.5" or 2.5" SATA or IDE hard drives in any combination. Any 2.5" or 3.5" hard drives or SSDs can be placed inside the easily removable drive enclosures to be used as a source or target drive. With additional optional IDE drive enclosures, practically any hard drives or SDDs with a IDE or SATA interface in 2.5" or 3.5" form factors can all be mixed into the eleven target drive bays to be duplicated at a time. By adding an optional Diamond Cipher drive enclosure, one can easily make backup copies of sensitive data with bullet proof AES-256 bit encryption. The Diamond Cipher Drive enclosure can also be used as a sanitizing tool to turn any used hard drives into brand new drives with no traces of any previous data. The PRO model is the ideal duplicator for organization with a wide variety of hard drives and need to migrate OS or data to different storage media, to upgrade systems with same hard drive image or to wipe clean data from used hard drives.

Product Features

• Copy or duplicate up to 11 drives at one time
• Great for cloning hard drives, for making back up hard drives, system upgrade or data distribution
• Support drive types:
  • Deluxe model supports 3.5" or 2.5" SATA hard drives (additional 2.5" drive adapters, model AE25SN35SA, are required to duplicate more than one 2.5" SATA hard drive)
  • PRO model supports duplicating from SATA to IDE or from IDE to SATA hard drive in either 3.5" or 2.5" form factor
• No tool is required for mounting the drive into the duplicator:
  • Deluxe model - drive is directly inserted into the target bay
  • PRO model - drive is slide into a drive enclosure which is then inserted into the target bay.
• OS independent
• Copy up to 3.0 Gbps depending on the performance of the hard drive
• PRO model duplicator - Optional Diamond Cipher drive enclosure (model: DCSACS256) for :
  • Copying data directly onto an AES-256 bit encrypted hard drive for data security
  • As a tool to sanitize used hard drives*
• LCM control module provides a rich set of robust advanced configuration options (click for Full LCD console feature list)
• Operate as a stand alone appliance. No computer or software needed

* Drive Sanitization (limited to SATA hard drive only)
The Diamond Cipher drive enclosure can also be used as a drive sanitization equipment for wiping clean of all previous data on an used hard when used in conjunction with any Addonics Duplicator PRO model:

1. install the hard drive to be sanitized into the Diamond Cipher drive enclosure.
2. Insert the Diamond Cipher drive enclosure into one of the Diamond target bays
3. Start the copying process using a blank source drive of equal size in capacity as the target drive. Data from the source drive is then written onto the hard drive in the Diamond Cipher drive enclosure with AES-256 bit encryption.
4. Now remove the drive from the Diamond Cipher enclosure. The drive will appear as brand new drive when installed into any computer with no trace of any data. The drive will have to be initialized, partitioned and formatted.

HDU11SITDR

Supported drive copying options

Note:

1. requires additional Diamond IDE drive enclosure (model: DISCSB) for each target drive
2. requires 2.5" to 3.5" IDE connector converter (AA25IDE35) for each target drive
3. requires additional Diamond Cipher SATA drive enclosure (model: DCSACS256) in conjunction with your encryption key for each source or target drive. Please check the detail of the Diamond Cipher product at Diamond Cipher overview page if you are not familiar with this option.
   Data copied to a target drive inside the Diamond Cipher enclosure will be encrypted with AES 256-bit security. Data in the drive will not be accessible when remove from the drive enclosure. You can only access the encrypted data
   When Diamond Cipher enclosure is used as source, only hard drive that has been encrypted with the Addonics AES 256-bit encryption should be used. If an non-encrypted hard drive is placed inside the Diamond Cipher drive enclosure and use as a source drive, no data will be copied as the drive will appear as a blank drive to the duplicator.
4. requires 1 additional Snap-In 25 (model: AE25SN35SA) unit for each target drive

Specification

• Writing mode : Sector to Sector
• Support up to 3 Gbps transferring rate (actual transfer rate depends on the speed of the source and destination drive)
• Sturdy metal frame construction
• LCD display with functional control panel
• Well ventilated for efficient air flow.
• Low noise high CFM ball bearing cooling fan
• Integrated 500W 110/240 auto-sense power supply
• Dimensions (W x D x H) - 7.5 x 15.9 x 24.25 inch (190.5 x 403.86 x 615.95 mm)
• Weight:
  • 47.5 lb (12.38 kg) - model: HDU11SITDR
  • 42.35 lb (19.21 kg) - model: HDUS11325DX
• Operating environment: 0 - 60 degree C, 15% - 90% RH
• Storage environment: (- 20) - (65) degree C, 0% - 95% RH non-condensing
