Addonics SATA to IDE(44-Pin) Converter

IMG 1 of 1
No Longer Available
Part Number:
170774
(?) Brand:
Addonics Web Site
Manuf No:
ADSAIDE44
Shipping Weight:
0.2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ADSAIDE44

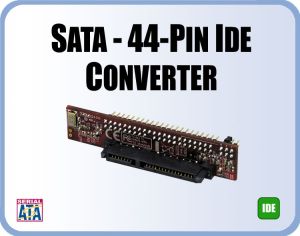

SATA to 44-pin IDE Converter

Package content: SATA - 44-pin IDE converter, user guide

The SATA - 44-pin IDE Converter is a perfect solution for converting 2.5" Serial ATA hard drives to 44-pin IDE interface. Just simply attach this converter to the back of any SATA storage device, and instantly the Serial ATA drive can be used as an IDE device in all kinds of applications that have been tested and certified for IDE storage.



Sample Applications

  • Write blocking for SATA hard drives. Great for forensic applications
  • Attach Serial ATA hard drive directly to 44-pin IDE controllers. Great for embedded systems or computers that are not equipped with SATA controllers

Product Features

  • Convert any 2.5" Serial ATA device into 44-pin IDE interface
  • Support Master, Slave, and Cable Select settings using jumpers

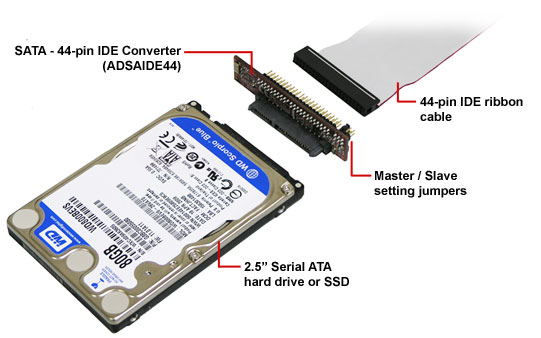

  • Mount directly to the back of SATA hard drive
  • Compact size -slightly higher than a 2.5" Serial ATA hard drive
  • No drivers required
  • Bootable
  • Simple plug and play, no drivers required

Specifications:

  • Serial ATA 1.0 compliant
  • Support ATA 33/66/100/133
  • 48 bits LBA. Support large hard drives of 137 GB or larger with one partition
  • Compatible with any OS (Windows, DOS, Mac, Linux, UNIX..) that supports IDE or ATAPI storage devices
  • Supports Spread Spectrum in receiver
  • Compliant with ATA specifications
  • Input: combo SATA 15-pin power and 7-pin data connector (direct attach to SATA hard drive)
  • Output: 44-pin IDE male connector (works with 44-pin IDE connecting cable)
  • Weight: 7g
  • Dimensions:
  • 1 year warranty

All specifications are subject to change without notice
