ASUS PCE-N15 Wireless Network Card - Up to 300Mbps, 802.11b/g/n, 2x R SMA Antenna, One Touch WPS - PCI-Ex1

No Longer Available

Part Number:

174469

(?) Brand:

ASUS Web Site

Manuf No:

PCE-N15
PCEN15

Shipping Weight:

0.3 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

PCEN15, PCE-N15, II11490, 4719543379783, 610839379781

PCE-N15

300Mbps 802.11b/g/n Wireless PCI-E Adapter

WPS(Wi-Fi Protected Setup) button - Quickly set up a secure wireless connection

Software AP - Connect your notebook and game consoles to the Internet

Supports WEP, WPA-PSK, and WPA2-PSK methods for enhanced security

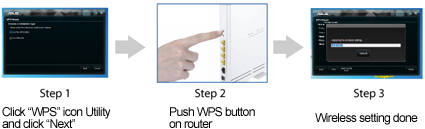

WPS(Wi-Fi Protected Setup) button

For quickly setting up a secure wireless connection. Press the Hardware WPS button on PCE-N15 about 3 seconds, then press the WPS button on router as well. Either you can choose to use software WPS, enabling the WPS utility in the WPS Wizard interface. And finish the setup with 3 steps

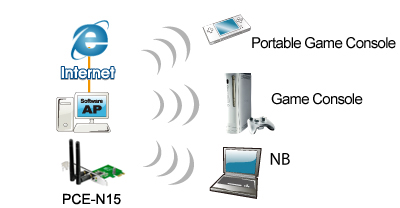

Software AP

Software AP mode allows the WLAN card to act as a virtual access point. The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN client.

Specifications

Network Standard	IEEE 802.11 b/g/n
Interface	PCI Express
Antenna	2 x R SMA Antenna
Operating Frequency	2.4GHz
Operation Channel	11 for N. America, 14 Japan, 13 Europe (ETSI)
Data Rate	802.11 b/g/n : downlink up to 300Mbps, uplink up to 300Mbps(20/40MHz)
Output Power	b mode : 15 ~19 dBm g mode : 13 ~17 dBm n mode : 12 ~16 dBm
Modulation	CCK, DQPSK, DBPSK, OFDM
Management	Software AP
Utilities	Wireless setting, Site survey, WPS Wizard
Security	64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPS support
Certificates	CE, FCC, C-Tick, IC
Dimensions	120.5 x 21.6 x 22 mm (WxDxH)
Weight	62.6 g (Device Only)
Environmental	Operating Temperature: 0 C to 45 C (32 F to 104 F) Storage Temperature: -20 to 65 C (-4 F to 149 F) Operating Humidity: 5 % to 95 % (Non-condensing) Storage Humidity: 5 % to 95 % (Non-condensing)
OS Support	Windows 7 32bit/64bit Windows Vista 32bit/64bit Windows XP 32bit/64bit Linux Kernel 2.6 (Support Ubuntu only)
Package Content	Support CD Warranty card Low Profile Bracket Dipole Antenna x 2

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 Year

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
