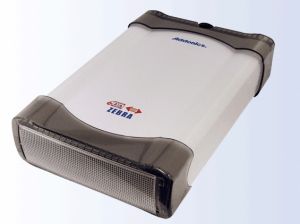

Addonics ZUSCSF Zebra Drive Enclosure - USIB Interface
  • No PSU/No Cable Included

IMG 1 of 2
No Longer Available
Part Number:
174497
(?) Brand:
Addonics Web Site
Manuf No:
ZSAUSCS
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ZSAUSCS
Z family SATA-USIB drive enclosure for SATA storage devices with no power adapter and USIB cable
Package Contents:
Z family SATA-USIB drive Enclosure for SATA storage devices with USIB connector, User Guide

This family of enclosure is designed to provide flexible interface for you external storage device. Comes with choice of Addonics SATA-USIB or the IDE - USIB connector on the back panel, any SATA storage device or IDE storage device can be converted to an external storage that can attached to computer via eSATA, USB or Firewire connection by attaching different USIB interface cable. The enclosure can be used for 3.5"/2.5" hard drive and is large enough to accommodate standard height optical devices as well as Addonics Mobile Rack II and the Snap-in Mobile Rack.



SATA-USIB drive enclosure
(for SATA hard drives, optical storage or SATA mobile rack)

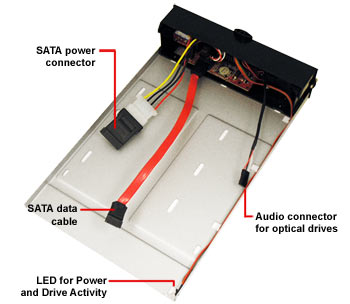

Diagram of SATA USIB Enclosure Tray
(click on images for enlarged diagrams)



Product Features

  • Choice of SATA - USIB or IDE - USIB interface
  • Sturdy aluminum construction
  • Compact size for convenient transportation
  • SATA - USIB model is compatible with SATA or SATA II hard drive and most optical devices
  • IDE - USIB model is compatible with IDEI hard drive and most ATAPI optical devices
  • Rear mount 40x40mm cooling fan
  • Plug and play
  • Stereo ear phone jack
  • Bootable under DOS (requires support from motherboard BIOS) using SATA or USB connection

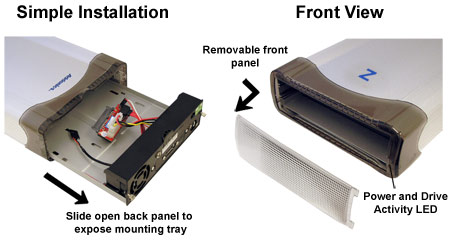

  • Simple installation
  • OS Compatibility:
    • USB 2.0/1.1 - DOS, Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
    • SATA - DOS, Windows NT4(SP6), Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above
    • Firewire / iLink - Windows 7, Vista, 2003, XP, 2000, Me, Mac OS 9 and above

Specifications

Support drive type
  • SATA - USIB: 3.5" SATA hdd, 2.5" SATA hdd and optical drive
  • IDE - USIB: 3.5" IDE hdd, 2.5" IDE hdd (with adapter) and optical drive
Interface Type:
USB 2.0/1.1, Firewire/iLink, eSATA
Construction material:
Aluminum body
LED
Power(Green) and Drive Activity(Red) LED
Audio jack
Stereo earphone jack
Supported OS
  • USB 2.0/1.1 - DOS, Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above, Solaris 8 10/00 or later release.
  • SATA - DOS, Windows NT4(SP6), Windows 7, Vista, 2003, XP, 2000, Me, Mac OS X, Linux Kernel 2.4 and above
  • Firewire / iLink - Windows 7, Vista, 2003, XP, 2000, Me, Mac OS 9 and above
Power Supply:
100 / 240V AC/DC 12V / 5V 34 Watts Power Adapter (AAPAC12V-US)
Cooling system:
Rear mount 40x40 mm cooling fan
Dimensions:
10.16 x 6.61 x 2.36 in.
(258 x 168 x 60 mm)
Weight:
2.12lbs. (963g)
Storage Temperature:
Range: -30C to +60C
Operating Temperature:
Range: +5C to +40C
Storage Humidity:
5% to 90%
Operating Humidity:
5% to 95%
Warranty:
One Year


System Requirements

  • PC/AT or Compatible System
  • eSATA, USB, or Firewire port
  • Pentium II or Greater
  • Minimum 64 MB RAM
  • One of the Following Operating System:
    DOS, Windows 7, Vista, 2003, XP, 2000, Linux (Kernel 2.4 and above), Solaris 8, Mac OS X 10.4.and above
