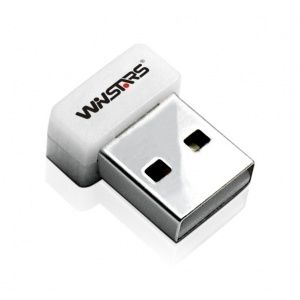

8WARE WN687N1 Wireless Network Card - Up to 150Mbps, 802.11b/g/n, USB2.0

IMG 1 of 1
No Longer Available
Part Number:
174836
(?) Brand:
8WARE
Manuf No:
WS-WN687N1
WSWN687N1
Shipping Weight:
0.1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
WSWN687N1, WS-WN687N1
Winstars 150Mbps Mini Wireless N - USB Adapter

Description

At 5 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you access to all the high-speed features of Wireless-N networks on older and newer computers. Its simple and easy setup means you'll be surfing the internet, downloading movies, and e-mail in no time.


Features

  • MIMO technology improves data throughput and range over existing 802.11b/g products
  • Add high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computer
  • Download music & movies, surf the internet and e-mail up to 5 times faster than previous generation wireless networks (Wireless 802.11g)
  • Offers greater coverage than Wireless-G networks for internet access throughout your home or office
  • Works with older Wireless-G and Wireless-B networks
  • WiFi Protected Setup (WPS) simplifies setup and operation
  • Operating distance of up to 300 feet indoor, and up to 900 feet in open space
  • Data transfer rate of up to 150Mbps (downlink) and 150Mbps (uplink)
  • Supports USB 2.0 interface, backward compatible to USB 1.1 and 1.2
  • Enhanced WEP and WPA wireless security for protected Internet access
  • 64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISM
  • Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
  • Supports Ad Hoc and Infrastructure modes
  • Supports IEEE 802.11e standard

Specifications

Wireless Standards
IEEE 802.11n (draft)
IEEE 802.11g
IEEE 802.11b
Host Interface
High speed USB2.0/1.1 interface
Data Rate
802.11n: up to 150Mbps (downlink) and 150Mbps (uplink)
802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Frequency Band
2.4GHz ISM (Industrial Scientific Medical) Band
Chipset
Realtek
RF Frequency
2412 ~ 2462 MHz (North America)
2412 ~ 2472 MHz (Europe)
2412 ~ 2484 MHz (Japan)
Radio Channel
1 ~ 14 channels (Universal Domain Selection)
Range Coverage
Up to 3 times farther range than 802.11g
Antenna type
Integrated Antenna
Roaming
Full mobility and seamless roaming from cell to cell
RF Output Power
13 ~17 dBm (Typical)
Modulation
11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Data Security
64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network
Auto-switch to use 802.11n or 802.11g or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function
Configuration & Management
Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista
Media Access Control
CSMA/CA with ACK
LED Indicator
Link/Active ( Green )
Operating System
Windows 2000, XP 32/64-bit, Vista 32/64-bit,
Linux and MAC OS X
Environment
Operating Temperature: 0oC to 40oC
Storage Temperature: -20oC to 75oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
Compliant
FCC (USA)
CE Mark (Europe)
RoHS Compliant
Wi-Fi Compliant

Requirements

  • OperatingSystem
    • Windows 2000, XP, Vista, Linux and MAC OS
  • Available USB2.0 port

Package Content

  • 1 x Wireless-N USB 2.0 Adapter
  • 1 x Driver CD
  • 1 x Quick Start Guide
