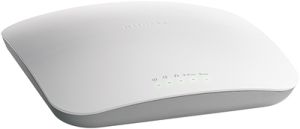

WNDAP360-100AJS | Netgear WNDAP360 ProSafe Dual Band Wireless Access Point

Standards

• IEEE 802.11a 5GHz
• IEEE 802.11g, IEEE 802.11b, 2.4GHz
• IEEE 802.11n standard, 2.4GHz and 5GHz
• WMM - Wireless MultiMedia prioritization
• WDS- Wireless Distribution System
• Power over Ethernet (PoE) IEEE 802.3af

Physical Specifications

• Physical Dimensions (W x D x H): 253.75 x 253.76 x 54.76 mm (10.0 x 10.0 x 2.16 in)
• Weight: 878 g (1.93 lbs)

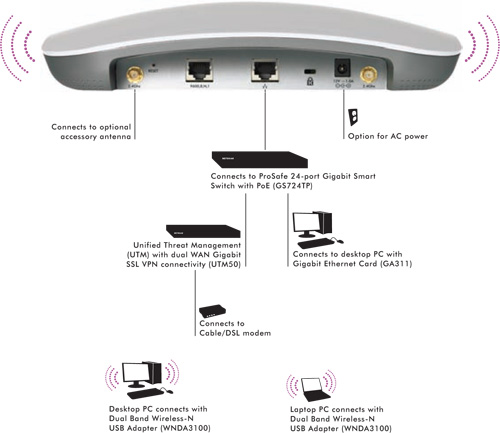

Physical Interfaces

• One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support
• Power adapter: 12 VDC, 1A; plug is localized to country of sale
• One (1) console port with RJ45 Interface
• Two (2) reverse SMA antenna connectors
• Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz

Security

• Wi-Fi Protected Access (WPA, WPA2)
• Wired Equivalent Privacy (WEP) 64-bit, 128-bit, and 152-bit encryption
• IEEE802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
• Wireless access control to identify authorized wireless network devices
• MAC address authentication
• VPN pass-through support
• Secure SSH Telnet
• Security Socket Layer (SSL) remote management login

Network Management

• Remote configuration and management through Web browser, SNMP or Telnet with command line interface (CLI)
• SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary configuration MIB

Advanced Wireless Features

• Wireless Distribution System (WDS)
  • Bridge mode: Point-to-point wireless WDS mode
  • Bridge mode: Point-to-multipoint wireless WDS mode
  • Repeater mode
  • Adjustable Transmit Power Control (TPC) from 100 mW down to 0 mW

System Requirements

• 2.4GHz/5GHz 802.11n specification or 2.4GHz 802.11b/g wireless adapter or 5GHz 802.11a wireless adapter
• Microsoft Windows Vista, XP, 2000, 98, Me, Mac OS, UNIX, or Linux
• Internet Explorer 6.0 or Mozilla Firefox 1.5
• We recommend using this product with RangeMax Dual Band Wireless-N USB Adapter (WNDA3100)

Package Contents

• ProSafe Dual Band Wireless-N Access Point (WNDAP360)
• Ethernet cable
• Wall-mount kit
• Installation guide
• Resource CD
• 12V, 1A power supply
• Warranty/support information card

Warranty

• Access Point: ProSafe Lifetime Warranty
• Power Supply: 3-year Warranty (see information enclosed)

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included
in free basic installation support; optional premium support available.
Actual data throughput will vary. Network conditions and environmental factors, including volume of network traff c, building material and
construction, and network overhead, lower actual data throughput rate.
**Maximum power savings when compared to previous version of this NETGEAR product.
This product has been tested for quality assurance and this product or its components may have been recycled.
