Addonics RT3DAHEU3 RAID Tower III - Black
5x3.5"SATA HDD(Removable Drive Trays), 5-port Hardware Port Multiplier, RAID 0,1,3,5,10,JBOD, USB3.0

No Longer Available

Part Number:

180153

(?) Brand:

Addonics Web Site

Manuf No:

RT3DAHEU3

Shipping Weight:

5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

RT3DAHEU3

Package content - components list for this model:
Storage Tower III (ST3), 5-port HPM- XU (AD5HPMREU), 1 Disk Array 5SA (AE4RCS35NSA) 3 feet eSATA cable (AAESATA100C), 6 feet A-B USB 3.0 cable (AAU3AB6F), power cord, user guide

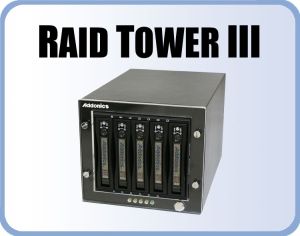

The RAID Tower III is a compact RAID storage system that include many features come in larger RAID Towers. As many as five 3.5" SATA hard drives can be installed into the RAID Tower III. The small foot print, silent operating and large storage capability of the RAID Tower III make it the ideal solution for a wide variety of storage applications in small businesses and homes.

Once the drives are installed, they can be configured as a RAID set or as individual drives and connect to the computer via a single high speed eSATA connection or optional USB 3.0 / 2.0 connection with the USB 3.0 to eSATA adapter. You can also turn the RAID Tower III into a Network Attached Storage device by attaching to the Addonics optional NAS 3.0 adapters. Each model comes with everything you need to connect it to the computer. All you needed is to add your own hard drives and configure the RAID via a simple on board rotary switch, dip switches or software utility depending on the model.

RAID Tower III basic specification

Sturdy metal frame construction
Choice of models to install as many as five 3.5" SATA hard drives
Compact size - 7.48 x 10.63 x 6.5 inch (190 x 270 x 16.5 mm) (W x D x H)
Low noise high CFM ball bearing cooling fan
Integrated 150W 110/240 auto-sense power supply
LED indicators for each storage device, RAID status, host connection and power

Specifications

Install up to five 3.5" SATA hard drives of any capacity (drives not included).
Drives are added or removed like tape cartridge from each drive bay via a removable drive tray
Connect to system via eSATA port or USB 3.0 / 2.0 port (a 3 feet eSATA cable and a 6 feet USB 3.0 cable are included)

Drives can be configured as RAID0 (Striping), RAID1 (Mirroring), RAID 5 (Parity), RAID10 (Mirrored Striped), JBOD (Concatenation), Clone Mode (N-Way Mirror) using built-in hardware RAID
RAID setting via software utility under Windows or via dip switches on the back
OS independent, can be used on any system
RAID diagnostic via LED light or utility software under Windows

Comparison Chart

Model	RT3S5HEU3	RT3SN5HP	RT3DAHEU3	RT3DA5HP	RT3RD4EU
Maximum number of drives installable
3.5" SATA	5	5	5	5	4
2.5" SATA or SSD	Yes with optional 2.5" - 3.5" HDD converter (AE25SN35SA)	Yes with optional 2.5" - 3.5" HDD converter (AE25SN35SA)	Yes with optional 2.5" - 3.5" HDD converter (AE25SN35SA)	Yes with optional 2.5" - 3.5" HDD converter (AE25SN35SA)	Yes with optional 2.5" - 3.5" HDD converter (AE25SN35SA)
Connection to System
Via any eSATA port	Yes	Yes	Yes	Yes	Yes
Via USB 2.0 port	Yes	Yes (with optional USB 3.0 - eSATA adapter)	Yes	Yes (with optional USB 3.0 - eSATA adapter)	Yes
Via USB 3.0 port	Yes	Yes (with optional USB 3.0 - eSATA adapter)	Yes	Yes (with optional USB 3.0 - eSATA adapter)	Yes (with optional USB 3.0 - eSATA adapter)
Supported type of RAID
RAID 1, RAID 0	Yes	Yes	Yes	Yes	Yes
RAID 10	Yes	Yes	Yes	Yes	N/A
BIG (SPAN)	Yes	Yes	Yes	Yes	Yes
RAID 5 over 4 drives	Yes	Yes	Yes	Yes	Yes
RAID 5+S	Yes	Yes	Yes	Yes	Yes
JBOD (individual drive)	Yes (when connected to USB or PM compatible controller)	Yes (when connected to USB or PM compatible controller)	Yes (when connected to USB or PM compatible controller)	Yes (when connected to USB or PM compatible controller)	N/A
RAID Setup	via onboard dip switches	via onboard dip switches	via onboard dip switches	via onboard dip switches	via onboard rotary switch
Integrated Port Multiplier	AD5HPMREU	AD5HPMRXA-E	AD5HPMREU	AD5HPMRXA-E	AD4SR5HPMU
RAID setup software utility support	available for Windows	available for Windows	available for Windows	available for Windows	N/A
RAID Diagnostics	via software or LED lights	via software or LED lights	via software or LED lights	via software or LED lights	via LED lights
Drive installation	Direct hard drive insertion and removal	Direct hard drive insertion and removal	Via 5 removable drive drawers	Via 5 removable drive drawers	Via 4 removable drive drawers
Hot Swappable Drives	Yes when connect to eSATA control with hot swap support or USB port	Yes when connect to eSATA control with hot swap support or USB port	Yes when connect to eSATA control with hot swap support or USB port	Yes when connect to eSATA control with hot swap support or USB port	Yes when connect to eSATA control with hot swap support or USB port
Supported OS	OS Independent	OS Independent	OS Independent	OS Independent	OS Independent
