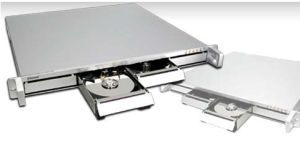

ST7610-4S-S2
ST7610 Series support four SATA hard dives (ST7610-4S-U5 also supports SAS hard drive). It is a system which contains JBOD function and is able to be collocated with a RAID card to be formed into a RAID subsystem. It provides eSATA, FireWire800, USB2.0 and infiniBand host interfaces. It’s designed for DVR, Graphic Design, and Audio/Video Editing applications that require large storage capacities.
The ST7610-4S-S2P utilizes chipset that supports the Port Multiplier function. Only one eSATA cable is required to connect the system to see four SATA hard drives for storage. It allows you to obtain four hard drives’ capacities at once and benefit from the transfer performance of up to 300MB/Sec. to satisfy the need for big data storage and high transfer performance demands.
Supports Port Multiplier Function (ST7610-4S-S2P)
The ST7610-4S-S2P utilizes chipset that supports the Port Multiplier function. Only one eSATA cable is required to connect the system to see four SATA hard drives and the transfer performance of data throughput will not downgrade. It’s like connecting 4 separate hard drives to the systems without the hassles of connecting 4 cables separately for each drive. All you’ll need is one cable connection.
Supports drive Hot-Swap
Besides the ST7610-4S-WBC, the ST7610 Series supports drive Hot-Swap which enables you to exchange a failed hard drive or a new one without having to shut down the system.
RAID Function upgradeable
When collocated to a RAID device such as SATA RAID card or a STARDOM SL7650-4S-L4D, it can then become a RAID subsystem with efficient data security functionalities.
Data Categorize
ST7610 series is capable of supporting four big hard drives at once. You are able to save data by categorizing each hard drives (depending on your requirements and preferences) and reduce your time in searching for the correct files.
Product Specification
Model No: ST7610-4S-S2
Host Interface: eSATA x 4
Drive Interface: SATA I or II
Support RAID level: JBOD
LED Indicator: Yes
Power Supply: Input: 100v~240v; Output: 200 Watts
Support Hot-Swap: Yes
Cooling Fan: 4cm ball bearing Fan x 2
O.S Require: None
Dimension (mm): 430W x 420D x 43H
Weight (kg): 7
Certification: CE / FCC
