All stock codes associated to this product
GSM5212P100AJS, GSM5212P-100AJS, 606449080957
PROSAFE 12-PORT DESKTOP GIGABIT L2+ MANAGED SWITCH WITH POE+
- 12 ports PoE+ with 125W PoE budget
- L2+ routing with 64 IP interfaces for VLAN routing
- Intelligent edge switch for converged VoIP, Video and Wireless enterprise networks
Overview
The NETGEAR ProSafe "Intelligent Edge" Gigabit L2+ Managed Switch GSM5212P consist of 12 ports Gigabit with PoE+ connectivity, and 4 ports dual-speed SFP with fiber connectivity. Intelligent Edge series deliver a secure and flexible access in campus, commercial and enterprise converged environments: Wireless access points, IP telephony and video-surveillance.
PoE Pass-Through
In addition to very low acoustics for deployment in open areas, GSM5212P provides innovative PoE pass-through functionality for challenging environments without outlet such as conference rooms or retail sales floors: GSM5212P can be powered by PoE upstream switches and simultaneously power PoE devices downstream. Up to 22W power can be redistributed locally in Pass-Through mode.
Intelligent Edge
Combining superior resiliency and advanced security, GSM5212P provides comprehensive Layer 2, Lite Layer 3 and Layer 4 switching, including 16K MAC table size, 64 routing interfaces and 16 static routes.
Unified Communications Voice over IP
The NETGEAR ProSafe "Intelligent Edge" simplifies converged data deployments with state-of-the-art capabilities. CoS Layer 2 prioritization and DiffServ Layer 3 & 4 policies allow for 1Kbps ingress and egress TCP/UDP granularity. LLDP-MED (Media Endpoint Discovery) automatically configures IP phones QoS and VLAN settings.
Unified Communications Video Streams
IGMP filtering and querier ensure multicast streams are only delivered to interested receivers, preventing flooding even without a dedicated multicast router. When receivers are in different VLANs, Multicast VLAN registration (MVR) uses a dedicated multicast VLAN to forward multicast streams and avoid duplication for clients in different VLANs.
Outstanding Value
With its high-value price point, industry-standard command line interface (CLI) and single-pane-of-glass NMS200 management platform (mass-configuration support), NETGEAR ProSafe "Intelligent Edge" yields a high return on investment. GSM5212P is backed by the NETGEAR ProSafe Lifetime Hardware Warranty, ProSupport Lifetime 24x7 Advanced Technical Support*, and 3-Year Next Business Day Onsite Hardware Replacement.**
| Model |
Form Factor |
Low Acoustics (Min <25C Max >40C) Variable Speed Fans |
Gigabit RJ45 10/100/1000 |
Shared SFP 100/1000 |
PoE+ Port Count |
PoE Budget
|
| GSM5212P |
Desktop |
Below typical acoustic office ambient: Min 19.8dB Max 35.1dB |
12 |
4 |
2 first ports: PoE+ in
10 other ports: PoE+ out |
22W (Pass-Through)
125W (Power Supply) |
Product Specifications

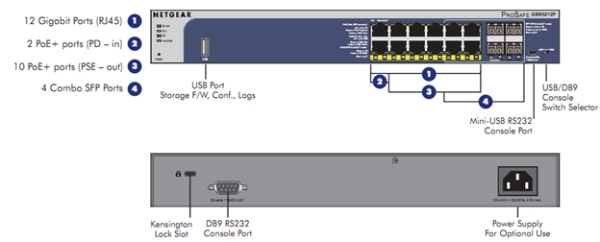

PHYSICAL INTERFACES
Front
- 12 auto-sensing RJ45 10/100/1000 ports
- 4 shared SFP ports for Gigabit fiber 100/1000
- 1 USB port (config/firmware files storage)
- 1 Mini-USB port RS-232 for console
Rear
- 1 Serial DB9 RS-232 port for console
- Redundant Power Supply: PoE pass-through mode
- 1 Kensington Lock Slot
- Power Supply: 1 fixed PSU (optional use)
Total
POE
- 12 PoE+ ports
- PoE pass-through mode
- 2 PD ports (PoE in)
- 10 PSE ports (PoE out)
- IEEE 802.3af (up to 15.4 Watts/port)
- IEEE 802.3at (up to 30 Watts/port)
- IEEE 802.3at Layer 2 (LLDP) method
- IEEE 802.3at 2-event classification
- PoE timer/schedule (week, days, hours)
TOTAL POE BUDGET
AC Power Mode
- Using built-in PSU: 125 Watts
PoE Pass-Through Mode
- PD Port 1 (15.4W): 0 Watts
- PD Port 1 (30W): 0 Watts
- PD Port 1 (15.4W) Port 2 (15.4W): 13 Watts
- PD Port 1 (30W) Port 2 (15.4W): 13 Watts
- PD Port 1 (30W) Port 2 (30W): 22 Watts
PROCESSOR / MEMORY
- Processor: BCM53003 @600 MHz
- System memory: 128 MB (RAM)
- Packet buffer memory: 12 Mb
- Code storage (flash): 32 MB
PERFORMANCE SUMMARY
- Switching fabric: 24 Gbps
- Throughput: 17.8 Mpps
- Forwarding mode: Store-and-forward
- Latency (64-byte frames, 10 to 100 Mbps): <9.0s
- Latency (64-byte frames, 1 Gbps): <3.1s
- Addressing: 48-bit MAC address
- Address database size: 16,000 MAC addresses
- Number of VLANs: 1,024 (IEEE 802.1Q) out of 4,093 VLAN IDs
- Max number of Multicast groups for IGMP filtering: 1,024
- Max number of Multicast groups for MVR: 256
- Number of trunks: 12 trunks, 8-port per trunk
- Number of hardware queues for QoS: 8
- Number of static routes: 16
- Number of IP routing interfaces (port, VLAN): 64
- Jumbo frame support: up to 9K packet size
- Acoustic noise (ANSI-S10.12) < 25C ambient temperature: 19.8 dB
- Acoustic noise (ANSI-S10.12) > 40C ambient temperature: 35.1 dB
- Heat dissipation: 569.20 Btu/hr
- Mean time between failures (MTBF): 766,618 hours (~87.5 yrs)
L3 SERVICES ROUTING (IPV4)
- IPv4 static routing (Subnets, VLANs)
- 64 IP routes
- 64 IP interfaces (ports, VLAN)
- 16 Static routes
- IP Source Guard
L3 SERVICES - DHCP (IPV4)
- DHCP server (1,024 clients)
- DHCP L2 relay
- DHCP snooping
L3 SERVICES - MULTICAST (IPV4)
L2 SERVICES SWITCHING (IPV4/IPV6)
- MAC Address table: 16,000
- ARP cache size: 512
- Proxy ARP
- Dynamic ARP Inspection
L2 SERVICES VLANS (IPV4/IPV6)
- IEEE 802.1Q static VLAN (up to 1,024 VLANs) out of 4,096 VLAN IDs
- IEEE 802.1v Protocol VLAN
- Port-based VLAN
- MAC-based VLAN
- 128 IP subnet-based VLAN
- Protocol-based VLAN
- Voice VLAN
- Guest/Unauthenticated VLAN (802.1x)
- Auto VLAN assignment via RADIUS
- IEEE 802.1 Q-in-Q (double-VLAN tagging)
- GARP with GVRP/GMRP
- Private VLAN groups
- Multicast VLAN Registration (MVR)
L2 SERVICES - AVAILABILITY (IPV4/IPV6)
- IEEE 802.3ad Link Aggregation (Static or LACP): 12 trunks of 8 ports
- User selectable LAG hashing algorithm
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree
- IEEE 802.1s Multiple Spanning Tree
L2 SERVICES MULTICAST (IPV4/IPv6)
Filtering
- IGMP v1, v2, v3 snooping support
- IGMP querier mode support
- MLD Snooping support
- Static multicast filtering (1,024 multicast groups)
MVR
- Multicast VLAN Registration: Dynamic and Compatible
- IGMP leave operating mode: Normal/immediate leave
- MVR max Multicast groups: 256
L2/L3/L4 SERVICES QOS (IPV4/IPV6)
- L2/L3/L4 QoS Policies: MAC, IP, TCP/UDP ports
- IEEE 802.1p Class of Service (CoS)
- DiffServ QoS (RFC 2998)
- Weighted round robin (WRR) queue technology
- Strict priority queue technology
- Rate limit in 1 Kbps increments
- Ingress and Egress traffic
L2/L3/L4 SERVICES SECURITY (IPV4/IPV6)
- Access control lists (ACL) L2/L3/L4: MAC, IP, TCP/UDP ports
- MAC-based source/destination ACL
- IP subnet-based source/destination ACL
- Protocol-based source/destination ACL
- ACL over VLAN
- Dynamic ACLs
- 100 ACLs (any type)
- 512 ACLs rules
- Network storm protection including broadcast multicast and unicast
- DoS
- ICMP throttling
- Protected ports
- Port MAC locking: 4,096 (dynamic), 48 (static)
- MAC filtering
- Port security
- DHCP snooping
- IP Source Guard
- Dynamic ARP inspection
- RADIUS (RFC 2865)
- RADIUS accounting (RFC 2866)
- IEEE 802.1x port access authentication (RADIUS)
- TACACS+
IEEE NETWORK PROTOCOLS
- IEEE 802.3 Ethernet
- IEEE 802.3i 10BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Enhanced Power over Ethernet
- IEEE 802.3ad Trunking (LACP)
- IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
- IEEE 802.1D Spanning Tree (STP)
- IEEE 802.1s Multiple Spanning Tree (MSTP)
- IEEE 802.1w Rapid Spanning Tree (RSTP)
- IEEE 802.1p Quality of Service
- IEEE 802.1Q VLAN tagging
- IEEE 802.1v protocol-based VLAN
- IEEE 802.1X Radius Network Access Control
- IEEE 802.3x flow control
IETF RFC STANDARDS SYSTEM FACILITIES
- RFC 768 UDP
- RFC 783 TFTP
- RFC 791 IP
- RFC 792 ICMP
- RFC 793 TCP
- RFC 826 Ethernet ARP
- RFC 894 transmission of IP datagrams over Ethernet networks
- RFC 896 congestion control in IP/TCP networks
- RFC 951 BOOTP
- RFC 1321 message-digest algorithm
- RFC 1534 interoperation between BOOTP and DHCP
- RFC 2131 DHCP client/server
- RFC 2132 DHCP options & BOOTP vendor extensions
- RFC 2030 Simple Network Time Protocol (SNTP) version 4 for IPv4, IPv6 and OSI
- RFC 2865 RADIUS Client (both switch and management access)
- RFC 2866 RADIUS Accounting
- RFC 2868 RADIUS attributes for Tunnel Protocol support
IETF RFC STANDARDS SYSTEM FACILITIES
- RFC 2869 RADIUS Extensions
- RFC2869bis RADIUS support for Extensible Authentication Protocol (EAP)
- RFC 3164 The BSD Syslog Protocol
- RFC 3580 802.1X RADIUS usage guidelines (VLAN assignment via RADIUS, dynamic VLAN)
IETF RFC STANDARDS QOS
- RFC 2474 definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 headers
- RFC 2475 an architecture for differentiated services
- RFC 2597 Assured Forwarding PHB Group
- RFC 3246 An Expedited Forwarding PHB (Per-Hop Behavior)
- RFC 3260 New Terminology and Clarifications for DiffServ
- RFC 3289 Management Information Base for the Differentiated Services Architecture (read-only)
- Private MIBs for full configuration of DiffServ, ACL and CoS functionality
IETF RFC STANDARDS MANAGEMENT
- RFC 854 Telnet
- RFC 855 Telnet Option
- RFC 1155 SMI v1
- RFC 1157 SNMP
- RFC 1212 Concise MIB Definitions
- RFC 1867 HTML/2.0 Forms with file upload extensions
- RFC 1901 Community-based SNMP v2
- RFC 1908 Coexistence between SNMP v1 & SNMP v2
- RFC 2068 HTTP/1.1 protocol as updated by draft-ietf-http-v11-spec-rev-03
- RFC 2271 SNMP Framework MIB
- RFC 2295 Transparent Content Negotiation
- RFC 2296 Remote Variant Selection; RSVA/1.0 State Management cookies draft-ietf-http-state-mgmt-05
- RFC 2576 Coexistence between SNMP v1, v2 and v3
- RFC 2578 SMI v2
- RFC 2579 Textual Conventions for SMI v2
- RFC 2580 Conformance statements for SMI v2
- RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
- RFC 3411 An Architecture for Describing SNMP Management Frameworks
- RFC 3412 Message Processing & Dispatching
- RFC 3413 SNMP Applications
- RFC 3414 User-based Security Model
- RFC 3415 View-based Access Control Model
- RFC 3416 Version 2 of SNMP Protocol Operations
- RFC 3417 Transport Mappings
- RFC 3418 Management Information Base(MIB) for the Simple Network Management Protocol (SNMP)
- SSL 3.0 and TLS 1.0
- RFC 2246 The TLS Protocol, Version 1.0
- RFC 2818 HTTP over TLS
- RFC 2346 AES Ciphersuites for Transport Layer Security
- SSH 1.5 and 2.0
- RFC 4253 SSH Transport Layer Protocol
- RFC 4252 SSH Authentication Protocol
- RFC 4254 SSH Connection Protocol
- RFC 4251 SSH Protocol Architecture
- RFC 4716 SECSH Public Key File Format
- RFC 4419 Diffi e-Hellman Group Exchange for the SSH
- Transport Layer Protocol
SUPPORTED MIBS
- RFC 1757/2819 RMON-MIB Remote Network Monitoring Management Information Base
- RFC 1213 RFC1213-MIB Management Informa- tion Base for Network Management of TCP/IP- based internets: MIB-II
- RFC 1493 BRIDGE-MIB Definitions of Managed Objects for Bridges (dot1d)
- RFC 2674 QBRIDGE-MIB The VLAN Bridge MIB module for managing Virtual Bridged Local Area Networks
- RFC 2737 Entity MIB (Version 2)
- RFC 2863 The Interfaces Group MIB using SMIv2
- RFC 3635 Etherlike-MIB Definitions of Managed Objects for the Ethernet-like Interface Types
- NETGEAR-REF-MIB NETGEAR Reference
- SNMP-COMMUNITY-MIB support SNMPv1, SNMPv2, and SNMPv3.
- SNMP-FRAMEWORK-MIB The SNMP Manage- ment Architecture MIB
- SNMP-MPD-MIB The MIB for Message Processing and Dispatching
- SNMP-NOTIFICATION-MIB The Notification MIB Module
- SNMP-TARGET-MIB The Target MIB Module
- SNMP-USER-BASED-SM-MIB The management information definitions for the SNMP User-based Security Model
- SNMP-VIEW-BASED-ACM-MIB The management information definitions for the View-based Access Control Model for SNMP
- LAG-MIB The Link Aggregation module for managing IEEE 802.3ad
- RFC 1213 Management Information Base for Network Management of TCP/IP based internets: MIB-II
- RFC 1493-BRIDGE-MIB Definitions of Managed Objects for Bridges (dot1d)
- RFC 2674-P-BRIDGE-MIB The Bridge MIB Exten- sion module for managing Priority and Multicast Filtering, defined by IEEE 802.1D-1998.
- RFC 2674-Q-BRIDGE-MIB The VLAN Bridge MIB module for managing Virtual Bridged Local Area Networks
- RFC 2737 Entity MIB (Version 2)
- RFC 2863 The Interfaces Group MIB using SMIv2
- RFC 3635 Definitions of Managed Objects for the Ethernet-like Interface Types
- NETGEAR-SWITCHING-MIB NETGEAR Switching Layer 2
- NETGEAR-INVENTORY-MIB Unit and Slot configuration
- NETGEAR-PORTSECURITY-PRIVATE-MIB Port Security MIB.
- IEEE8021-PAE-MIB Port Access Entity module for managing IEEE 802.1X
- NETGEAR-RADIUS-AUTH-CLIENT-MIB NETGEAR Radius MIB
- RADIUS-ACC-CLIENT-MIB RADIUS Accounting Client MIB
- RADIUS-AUTH-CLIENT-MIB RADIUS Authentica- tion Client MIB
- NETGEAR-MGMT-SEC URITY-MIB The NETGEAR Private MIB for Mgmt Security
- IANA-ADDRESS-FAMILY-NUMBERS-MIB Address-Family Numbers textual convention
- NETGEAR-QOS-MIB NETGEAR Flex QOS Support
- NETGEAR-QOS-ACL-MIB NETGEAR Flex QOS ACL
- DIFFSERV-MIB - RFC 3289 Management Informa- tion Base for the Differentiated Services Architecture
- NETGEAR-QOS-DIFFSERV-EXTENSIONS-MIB NETGEAR Flex QOS DiffServ Private MIBs definitions
- NETGEAR-QOS-DIFFSERV-PRIVATE-MIB NETGEAR Flex QOS DiffServ Private MIBsdefinitions
- LLDP-MIB Management Information Base module for LLDP configuration, statistics, local system data and remote systems data components
- LLDP-EXT-DOT3-MIB The LLDP Management Information Base extension module for IEEE 802.3 organizationally defined discovery information
- LLDP-EXT-MED-MIB The LLDP Management Information Base extension module for TIA-TR41.4 Media Endpoint Discovery information
- TACACS-CLIENT-MIB Management Information Base pertaining to TACACS+ client configuration.
MANAGEMENT (IPV4/IPV6)
- SNMP v1, v2c, v3 with multiple IP addresses
- Port mirroring support (many-to-one)
- Flow-based mirroring
- Syslog
- File transfer (configuration, firmware): HTTP, TFTP
- Secure file transfer (configuration, firmware): HTTPS, SCP, SFTP
- Runtime image download (TFTP)
- Port description
- sFlow
- Web-based graphic user interface (GUI)
- Command line interface (CLI)
- IPv6 Management
- Cable Test Utility
- SSLv3/TLSv1.0 Web security for the GUI
- Secure Shell (SSHv1, v2) for CLI
- Telnet sessions for management CPU (5 sessions)
- Configurable management VLAN
- Auto Install
- Admin access control via RADIUS or TACACS+
- Dual Image (firmware and configuration)
PHYSICAL SPECIFICATIONS
- Dimensions (w x d x h): 331 x 208 x 44 mm (13.03 x 8.19 x 1.73 in)
- Weight: 2.596 kg (5.73 lb)
POWER CONSUMPTION
- Max AC Current (with max PoE): 1.72 A
- Max AC Watts (with max PoE): 166.6W
- Heat dissipation: 569 Btu/hr
ENVIRONMENTAL SPECIFICATIONS
Operating:
- Temperature: 32 to 122F (0 to 50C)
- Humidity: 90% maximum relative humidity, non-condensing
- Altitude: 10,000 ft (3,000 m) max
Storage:
- Temperature: 4 to 158F (20 to 70C)
- Humidity: 95% maximum relative humidity, non-condensing
- Altitude: 10,000 ft (3,000 m) max
ELECTROMAGNETIC EMISSIONS AND IMMUNITY
- CE mark, commercial
- FCC Part 15 Class A, VCCI Class A
- Class A EN 55022 (CISPR 22) Class A
- Class A C-Tick
- EN 50082-1
- EN 55024
SAFETY
- CE mark, commercial
- CSA certified (CSA 22.2 #950)
- UL listed (UL 1950)/cUL IEC 950/EN 60950
PACKAGE CONTENT
- GSM5212P
- Power cord
- Rubber footpads for tabletop installation
- Rubber caps for the SFP
- Wall mounting kit
- Mini-USB to USB cable for console
- Resource CD
- ProSafe NMS200 Network Management System DVD
WARRANTY AND SUPPORT
- ProSafe Lifetime Warranty
- ProSupport Lifetime 24x7 Advanced Technical Support*
- Next business day onsite hardware replacement support, 3 years (included)**
MODULES & ACCESSORIES
- AFM735 100BASE-FX SFP GBIC
- AGM731F 1000BASE-SX SFP GBIC
- AGM732F 1000BASE-LX SFP GBIC
- 420-10043-01 (Rack Mount Kit for GSM5212P)
ORDERING INFORMATION
- Americas/Europe
GSM5212P-100NES
- Asia
GSM5212P-100AJS
PROSUPPORT SERVICE PACKS AVAILABLE
- XPressHW, Category 2: PRR0332 (3-year next-business day hardware replacement contract, applicable where next business day onsite hardware replacement is not available)
Networking
