All stock codes associated to this product
ST1000VX000, HASEA1TBSV35V, HASEA1TB-SV35V, ST1000VX000 , 715663215639, 7636490026607, N/A, 1CU162-500

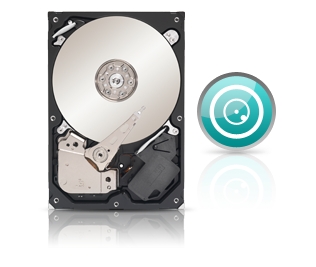

SV35.5 Series SATA 1-TB Hard Drive
Model: ST1000VX000: SATA 6Gb/s: 1TB: 7200
Overview
Enhances data storage reliability in video security systems.
Get the industry standard in video surveillance storage with Seagate SV35 Series hard drives. High-capacity, surveillance-optimized performance with an MTBF of more than 1M hours. Now with AcuTrac technology to enhance tracking reliability and performance, even under the most difficult operating environments.
Cost-effective, massive capacitydesigned for video storage applications.
Maximize your cost-per-gigabyte performance with the industry-leading, 1TB-per-disk technology of the SV35 Series drives. With 1TB, 2TB and 3TB capacity points and the fewest internal components, SV35 Series drives deliver an unprecedented combination of high capacity, reliability and cost-effectiveness.
Build better surveillance systems.
SV35 Series hard drives feature storage power and high performance for modern video surveillance systems.
- SATA 6Gb/s interface enables the newest, fastest hard drive controllers as well as legacy SATA 1.5Gb/s and 3Gb/s controllers
- Leading 1TB-per-disk technology delivers 1TB, 2TB and 3TB capacities with fewer mechanical components
- 2A current-limited and spin control features enable more power management, saving power and improving reliability during archival periods
High-performance surveillance storage solutions.
Stream more data faster and support more simultaneous cameras with SV35 Series drives.With the industrys highest areal density rates, SV35 Series drives support data rates up to 210MB per second. Combined with new dual processor technology, 64MB of cache and surveillance-optimized write-cache management, there is no drive that matches the SV35 Series for high-performance surveillance applications.
Surveillance hard drives with enterprise-class reliability.
SV35 hard drives are engineered for high-write workloads and multiple video stream recording with these features:
- Industry-leading MTBF of >1M hours; AFR of <1%
- Performance driven, 7200-RPM base platform optimized with 64MB DDR2 DRAM, a dual core processor and surveillance-optimized write caching
- Seagate AcuTrac servo technology provides accurate read-write operation even in challenging operating environments
Perfect when you need to:
- Equip network surveillance video recorders (NVR)
- Build surveillance digital video recorders (DVR)
- Create direct-attached or network-attached JBOD video storage
What do you get?
- SV35 Series hard drive
- Storage tailored for modern video surveillance systems
- Highly reliable storage designed for 247 workloads
- Legendary SV35 Series brand awareness for video surveillance storage
SV35.5 Series SATA 1-TB Hard Drive
ST1000VX000
| Specifications |
|
| Model Number |
ST1000VX000 |
| Interface |
SATA 6Gb/s |
| Cache |
64MB |
| Capacity |
1TB |
| Areal density (avg) |
625Gb/in2 |
| Guaranteed Sectors |
1,953,525,168 |
| PHYSICAL |
|
| Height |
26.1mm (1.028 in) |
| Width |
101.6mm (4.0 in) |
| Length |
146.99mm (5.787 in) |
| Weight (typical) |
400g (0.88 lb) |
| PERFORMANCE |
|
| Spin Speed (RPM) |
7200 RPM |
| Random read seek time |
<8.5ms |
| Random write seek time |
<9.5ms |
| Unrecoverable read errors |
1 in 1014 |
| RELIABILITY |
|
| Annual Failure Rate |
<1% |
| POWER |
|
| Maximum start current, DC |
2.0 |
| ACOUSTICS |
|
| Acoustics (Idle Volume) |
2.2 bels |
| Acoustics (Seek Volume) |
2.3 bels |
