All stock codes associated to this product
TLMR3040, TL-MR3040, 6935364051853

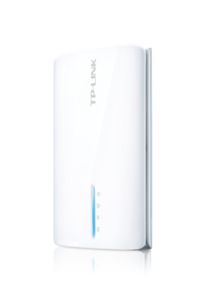

Portable 3G/3.75G Battery Powered Wireless N Router
TL-MR3040
Highlights:
- Compatible with HSPA/UMTS/EVDO 3G USB modems
- Features a 2000mAh battery for maximum usage time
- Four operation modes available for different situations: 3G Router, Travel Router (AP), WISP Client Router, Wireless Router
- 150Mbps wireless speeds for rapid sharing and increased signal range
Overview
What This Product Does
TP-LINKs TL-MR3040 is a truly mobile wireless networking platform that when paired with a 3G USB modem, is able to broadcast a wireless signal at up to 150Mbps around a room, creating a mobile office or entertainment network for up to five devices to access the Internet simultaneously. The device is the ideal travel companion, with pocket-sized dimensions and powered by its own powerful internal 2000mAh battery, users can work or play for hours on end. The device is also incredibly easy to use, allowing users to rapidly set up an Internet connected wireless network in as little time as it takes to plug in their 3G USB router or WAN cable and when finished, simply place the device back in their pockets.
Battery Powered - Made to Move
The TL-MR3040 is powered by a 2000mAh internal battery capable of powering a shared 3G network at 150Mbps for up to 4 hours at full 802.11n speed and range. The device can be powered via its USB cable and included adapter by connecting it to a Laptop or PCs USB port. With its powerful internal battery and compact design, the TL-MR3040 is designed to be placed in your nearest pocket and taken on the road. The portable 3G routers elegant exterior improves any desktop, dashboard or tray table on which it rests with slender curves and glossy piano white coating.
Versatile Connectivity

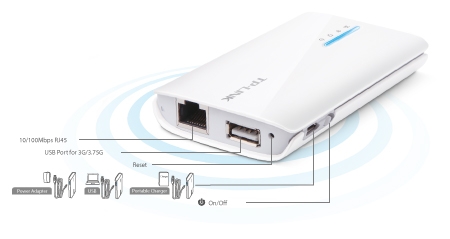

Featuring both a WAN and 3G USB port, the TL-MR3040 is able to utilize both wired and 3G wireless connections to create a powerful wireless network, for use at a hotel, home and on the road.
150Mbps - More Power to You
At 150Mbps, the TL-MR3040 has the wireless speed and range to accommodate several bandwidth intensive tasks at once with coverage for an entire average sized room. With connected 3G USB adapter or WAN cable, users can enjoy online games, stream media, or participate in a conference call, from the convenience of home, their cars or even on the train.
Features:
- Share a 3G mobile connection, compatible with HSPA/UMTS/EVDO 3G USB modems
- Battery powered, portable design, light and small enough for you to take anywhere
- Wireless N speed up to 150Mbps
- IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each connected device
- A micro USB port to be connected to your laptop or power adapter for power supply
- Four working modes: 3G Router, Travel Router (AP), WISP Client Router, Wireless Router
Specifications:
| HARDWARE FEATURES |
| Interface |
1 10/100Mbps WAN/LAN port, USB 2.0 port for 3G modem, a micro USB port for power supply |
| LED |
Power, WLAN, Ethernet, Internet |
| Button |
Power On/Off Button, Reset Button |
| Dimensions (W X D X H) |
3.9 x 2.4 x 0.6 in. (100 x 62 x 16 mm) |
| Weight |
3.3 ounce (94g) |
| Power Supply |
Internal 2000mAh rechargeable battery, 5VDC/1.0A external power adapter |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency |
2.4-2.4835GHz |
| Signal Rate |
Up to 150Mbps |
| EIRP |
<20dBm |
| Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast |
| SOFTWARE FEATURES |
| Operating Modes |
3G Router, Travel Router (AP), WISP Client Router, Wireless Router |
| WAN Type |
Dynamic IP, Static IP, PPPoE/Russia PPPoE, Bigpand Cable, L2TP/Russia L2TP, PPTP/Russia PPTP |
| DHCP |
DHCP server, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, DMZ, UPnP |
| Access Control |
Parental Control, Bandwidth Control, Loal Management, Remote Management, Access Schedule, Advanced Routing |
| Security |
Firewall, VPN, ALG, IP&MAC Binding, DoS Protection |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-MR3040
Power Adapter
Li-Ion Battery
USB Cable
Ethernet Cable
Quick Installation Guide
Resource CD |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Environment |
Operating temperature:15~40
Storage Temperature: -20~50
Operating Humidity: 0%~75% non-condensing
Storage Humidity: 0%~75% non-condensing |
