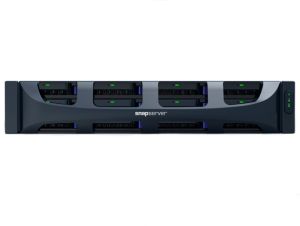

SnapServer DX2
Overview
Product Description
The SnapServer DX2 is a high performance, scalable NAS server; and the first storage system in its space that you do not have to provision. With DynamicRAID, hard drives can be added or replaced at any time to grow existing storage pools. Volumes grow automatically as drives are added, simplifying the management and reducing the time required to adapt to changing storage requirements.
Ideal for storing both block and file data. This 2U 12-bay SnapServer DX2 storage array supports up to 12 SATA or SAS hard drives and integrates out of the box with Windows, Linux, UNIX and Macintosh environments. Consolidate multiple servers into the SnapServer using the data import tool, or host virtual servers and database applications utilizing the iSCSI SAN feature. The DX2 supports Microsoft VSS/VDS integration to simplify management
and ensure application consistent snapshots. For data protection, the DX2 has the ability to replicate to one or multiple SnapServers, take snapshots for point-in-time recovery, and perform backups to disk, VTL, or tape.
With the ability to scale up to 288TB with seven SnapExpansion chassis, the SnapServer DX2 enables you to create a customized storage server with simple management and advanced features for any business environment.
Form Factor: 2U rackmount
System Scalability: 600GB - 288TB
Processing: Intel Quad Core 2.4GHz
Drives Supported: SAS / SATA
RAID Levels: Traditional RAID 0, 1, 5, 6, 10 or DynamicRAID dual or single parity
Network Connectivity: 2 x GbE (Up to 6GbE)
Capabilities: Remote Management, Dynamic RAID, Flexible Volumes, Unified Storage, Snapshots, Replication*, Backup Interface
*Support sold separately
Network File Protocols: Microsoft Networks SMB (1.0) / CIFS (NTLM); CIFS via Mac OS X; NFS v2, v3, v4 (UDP/TCP); Apple AFP; FTP/FTPS;HTTP/HTTPS (1.1)
Support Platforms:
Certifications:
SnapServer DX2 Technical Specifications
| Operating System |
GuardianOS7.0 |
 |
| Management |
Wizard-based Installation, Volume Usage Statistics, Event Log, Email Notification, Administrator Authentication, Remote Management, Multi-Server Monitoring, and Visualization with SnapServer Manager |
|
| Network File Protocols |
SMB, CIFS, NFS, AFP, HTTP, FTP |
|
| iSCSI Support |
Included |
|
| Snapshots |
Included |
|
| Replication |
Snap EDR |
|
| Microsoft Active Directory Support |
Included |
|
| VMware Support |
VMWare Ready |
|
| Form Factor |
2U rackmount |
|
| CPU and Memory |
Intel Quad Core 2.4GHz / 1 X 4GB DDR3 ECC Memory Module (upgradeable to 4 X 4GB) |
|
| Drive Configuration |
Up to 12 x SATA or SAS |
|
| RAID Levels |
DynamicRAID Single or Dual Parity / Traditional RAID 0, 1, 5, 6, 10 |
|
| Drive Types Supported |
SAS: 300GB, 600GB | 15K RPM
Enterprise SATA: 1TB, 2TB,3TB | 7,200 RPM
Desktop SATA: 1TB, 2TB, 3TB | 7,200 RPM |
|
| Network Connectivity |
2 x Gigabit Ethernet ports (autosensing 10/100/1000Base-T, dual RJ-45 network connections); Support for stand-alone, failover, and load balancing modes. Optional: Additional quad port Gigabit Ethernet card - PCIe |
|
| USB Interface |
UPS, Tape Devices, Printers |
|
| Expansion Array |
Supports up to 7 SnapExpansion Chassis |
|
| Expansion Array Interface |
SAS HBA included (second SAS HBA optional) |
|
| Local Backup Interface |
6Gb SAS, USB 2.0 |
|
| Physical / Mounting |
Width: 17.17 in (436.1 mm)
Height: 3.36 in (85.3 mm)
Depth: 26.32 in (668.5 mm)
Weight: With drives 51 lbs. (23.1kg) fully populated,
Without drives 38.5 lbs (17.5kg) |
|
| Agency Approvals |
cTUVus, CE, VCCI, FCC Class A |
|
| Power |
Power Rating: 500W autoranging, hot swappable modules (1+1 Redundant), 100-240 VAC, 50-60 Hz, 4 - 2 Amp
Input Current: Max 4A (RMS) @ 115Vac, 2A (RMS) @ 230Vac
Power Consumption: Idle: 225W/2Amps (12 HDDs)
Peak: 280W/2.5 Amps (12 HDDs) Heat Dissipation 1370BTU |
|
| Environmental Limits |
Operating Environment:
Temperature: 50 F to 104 F (10 C to 40 C)
Humidity: 20% to 80% (noncondensing)
Vibration: .5G and 10-300Hz Random for 120 min. max duration
Shock: 6 pulses of 20G half-sine for 2ms all axes, both directions
Altitude: -1000 ft. to 10,000 ft (-305m to 3,048m)
Non-Operating Environment
Temperature: 14 F to 149 F (-10 C to 65 C)
Humidity: 5% to 95% (noncondensing)
Vibration: 2G at 5-500Hz for 90 min. max duration
Shock: 6 pulses of 20G half-sine for 2ms all axes, both directions
Altitude: -1000 ft. to 35,000 ft (-305m to 10,688m) |
|
| Standard Warranty |
3-year: 24x7 Telephone Support, Advanced Parts Replacement |
|
| Supported Platforms |
|
|
| Certifications |
 |
