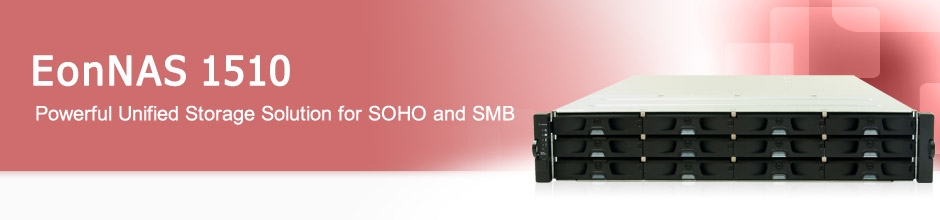

Infortrend EonNAS 1510-1 Network Storage Device - 2U
  • 12x3.5" SATA HDD, RAID 0,1,5,5 +, 6,6+,10, 6xUSB, 6xGigLAN

IMG 1 of 1
No Longer Available
Part Number:
197712
(?) Brand:
Infortrend Web Site
Manuf No:
EonNAS 1510-1
EonNAS 15101
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
EonNAS15101, EonNAS 1510-1, IF15570

Hardware

  1. Intel Core i3 Dual-Core 3.3GHz CPU
  2. 4GB or 8GB DDR3 RAM
  3. 2 x Gigabit LAN ports (EonNAS 1510)
  4. 6 x Gigabit LAN ports (EonNAS 1510-1)
  5. 2 x 10 Gigabit LAN ports and 2 x Gigabit LAN ports (EonNAS 1510-2)
  6. 12 x 3.5 SATAII/SATAIII hard disk drives
  7. 6 x USB ports (rear)
  1. Dimensions: 2U 19 Rackmount, 88.3(H) x 443.2(W) x 651.4(D) mm
  2. Weight: 13.10kg / 28.88lb (without HDD); 21.76kg / 47.97lb (with HDD)
  3. Two (2) redundant 550W power supplies
  4. AC input power voltage: 100-240V ~/ 10 - 5A with PFC (auto-switching)
  5. Power frequency: 47-63 Hz
  6. System fan: 2 x SmartFan (8cm, 12V DC)

Software

Protocols

CIFS/SMB, AFP, NFS, FTP, HTTP/HTTPS, iSCSI, SNMP, SMTP, NDMP, NTP, ICAP

Client Operating System Support

Windows XP, Vista (32/64-bit), Windows 7 (32/64- bit), Windows Server 2003, Windows Server 2008 R2, Apple Mac OS X, Linux, Red Hat, SuSE

Server Virtualization

  1. VMware vSphere
  2. Citrix XenServer
  3. Windows Server 2008 Hyper-V

File System

  1. Internal: ZFS
  2. External: FAT32, NTFS

Networking

  1. IPv6 support
  2. Fixed or dynamic IP address
  3. Dual Gigabit Ethernet with Jumbo Frame
  4. Port trunking/NIC teaming/Link aggregation (IEEE 802.3ad)
  5. DHCP Client
  6. MPIO, MC/S Support

Security

  1. HTTPS connection
  2. Encrypted remote replication (rsync over 128-bit SSH)
  3. Encrypted pool mirror (IP Sec)
  4. CHAP authentication for iSCSI volumes

RAID and Volume Management

  1. RAID0/1/5/5 + Hot spare/6/6+ Hot spare/10
  2. Online and automatic RAID capacity expansion
  3. Deduplication:
    1. Inline
    2. Block-level
  4. Compression
  5. Thin provisioning (iSCSI volumes only)
  6. SPC-3 persistent reservation (iSCSI volumes only)
  7. ICAP-based anti-virus support

Power Management

  1. Wake on LAN
  2. Network UPS with SNMP management

Access Right Management

  1. User account management
  2. Group management
  3. Folder management
    1. Folder and subfolder access control
  4. Folder quota
  5. Comprehensive access control action items
    1. All Controls, Read, Read and Run, Write, Modify, List
  6. Support Windows Active Directory Authentication
    1. Domain Users Login via CIFS/ SMB, AFP, FTP, and file explorer

System Management

  1. Web-based GUI
  2. HTTP/HTTPS connections
  3. Email alerts
  4. SNMP traps
  5. System status monitoring
  6. Exportable event logs
  7. System settings backup and restore
  8. Software live update
  9. Disk roaming
  10. Time synchronization with a NTP server

Data Protection

  1. ZFS end-to-end data integrity
    1. Detects and automatically heals silent data corruption
  2. Snapshot
    1. No number limitation
    2. For both shared folders and iSCSI volumes
    3. Scheduling at intervals as short as 10 minutes
    4. Automatic snapshot copy pruning based on user configured policy
  3. Remote Replication
    1. Rsync with 128-bit SSH encryption
  4. Pool mirror
    1. Remote data mirroring
    2. Real-time or scheduling
    3. IPsec encryption
  5. ICAP-based anti-virus support

Browser Support

  1. Internet Explorer 7 & 8
  2. Firefox 3

File Server

  1. Protocols: CIFS/SMB, AFP, NFS, FTP, HTTP/HTTPS
  2. Client operating system: Windows, Mac OS, Linux
  3. File/folder management by web browser

FTP Server

  1. Max. concurrent connection control
  2. Max. failed log-in attempt control

Backup Server

  1. Apple Time Machine support
  2. Windows Backup and Recovery support
  3. Bundled free licenses for FarStone TotalRecovery Pro 7
    1. EonNAS 1510: Incl. 12 licenses.
    2. EonNAS 1510-1: Incl. 12 licenses.
    3. EonNAS 1510-2: Incl. 12 licenses.
  4. Backup to external storage devices via USB connections
  5. 3rd-party Backup software support
  6. Remote replication
    1. Rsync with 128-bit SSH encryption

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Infortrend) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
